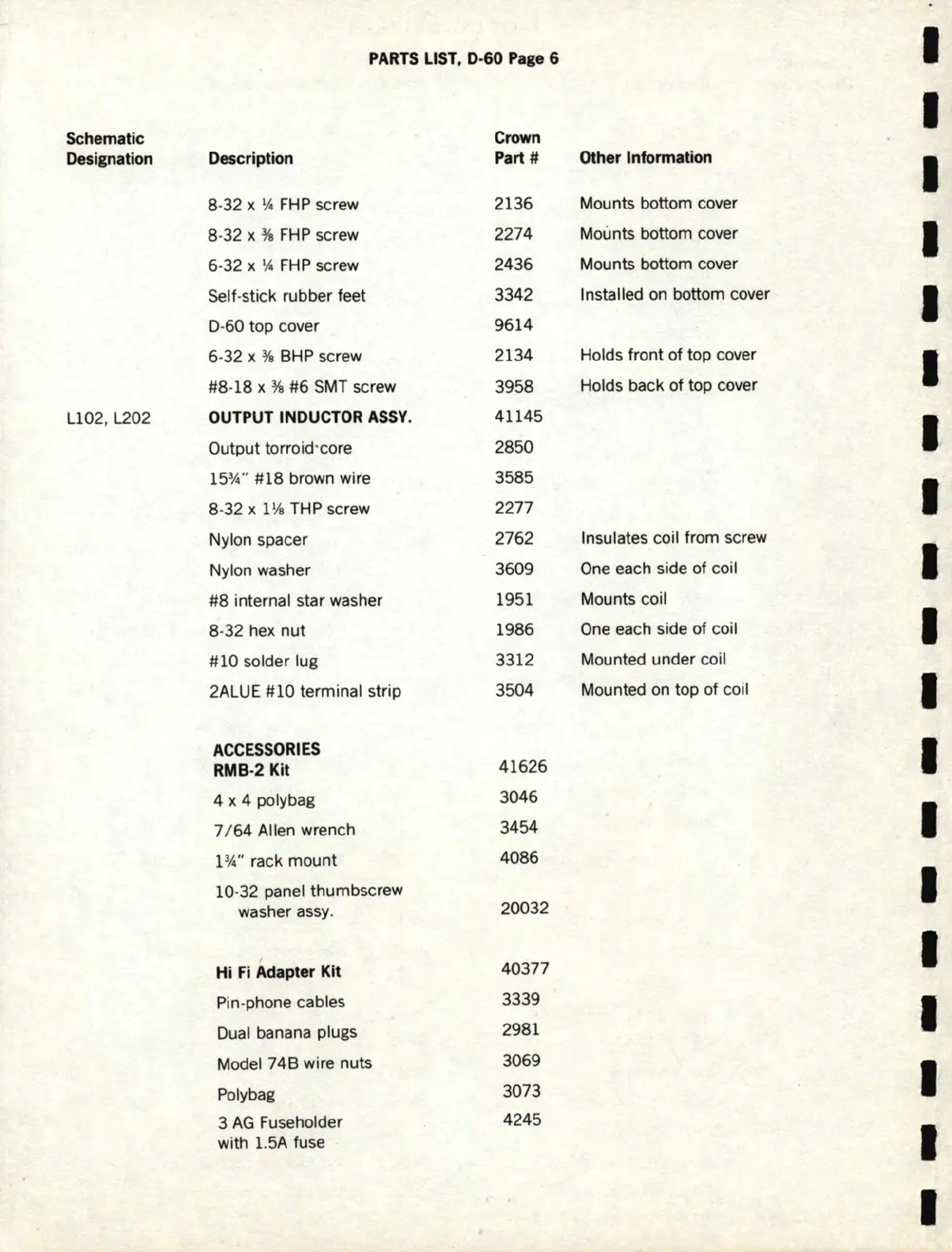

PARTS LIST, D-60 Page 6 I
I
Schematic
Crown
Designation Descr i pt i on
Part # Other Information
I
8- 32 x ¼ FHP screw
2136
Mounts bottom cover
8-
32 x ¾ FHP screw
2274
Mounts bottom cover
I
6-32 x ¼ FHP screw
24
36
Mounts bottom cover
Self-stick rubber feet
3342
Installed on bottom cover
I
D- 60 top cover
9614
6-32 x
¾ BHP screw
2134
Holds front of top cover
I
#8 - 18 x ¾ #6 SMT screw 3958
Holds back of top cover
Ll02 , L202
OUTPUT INDUCTOR ASSY.
41145
I
Output torroid·core
2850
15¾" #18 brown w
ir e 3585
I 8-32 x 1 1/a THP screw
2277
Nylon spacer
2762
Insulates coil from screw
Nylon washer
3609
One each side
of coil
I
#8 internal star washer
1951
Mounts coil
8-32 hex
nut
1986
One each side of coil
I
#10 solder lug
3312
Mounted under coil
2ALUE
#10 terminal st r ip
3504
Mounted on
top of coil
I
ACCESSORIES
I
RMB-2 Kit
41626
4 x 4 polybag
3046
I
7 / 64 Allen wrench
3454
1 ¾" rack
mount
4086
10-32 panel thumbscrew
I
washer assy.
20032
Hi Fi Adapter Kit
40 377
I
Pin-phone cables
3339
I
Dual banana plugs
2981
Model
748 wire nuts
3069
I
Polybag
3073
3
AG Fuseholder
4245
with
1. 5A fuse
I
