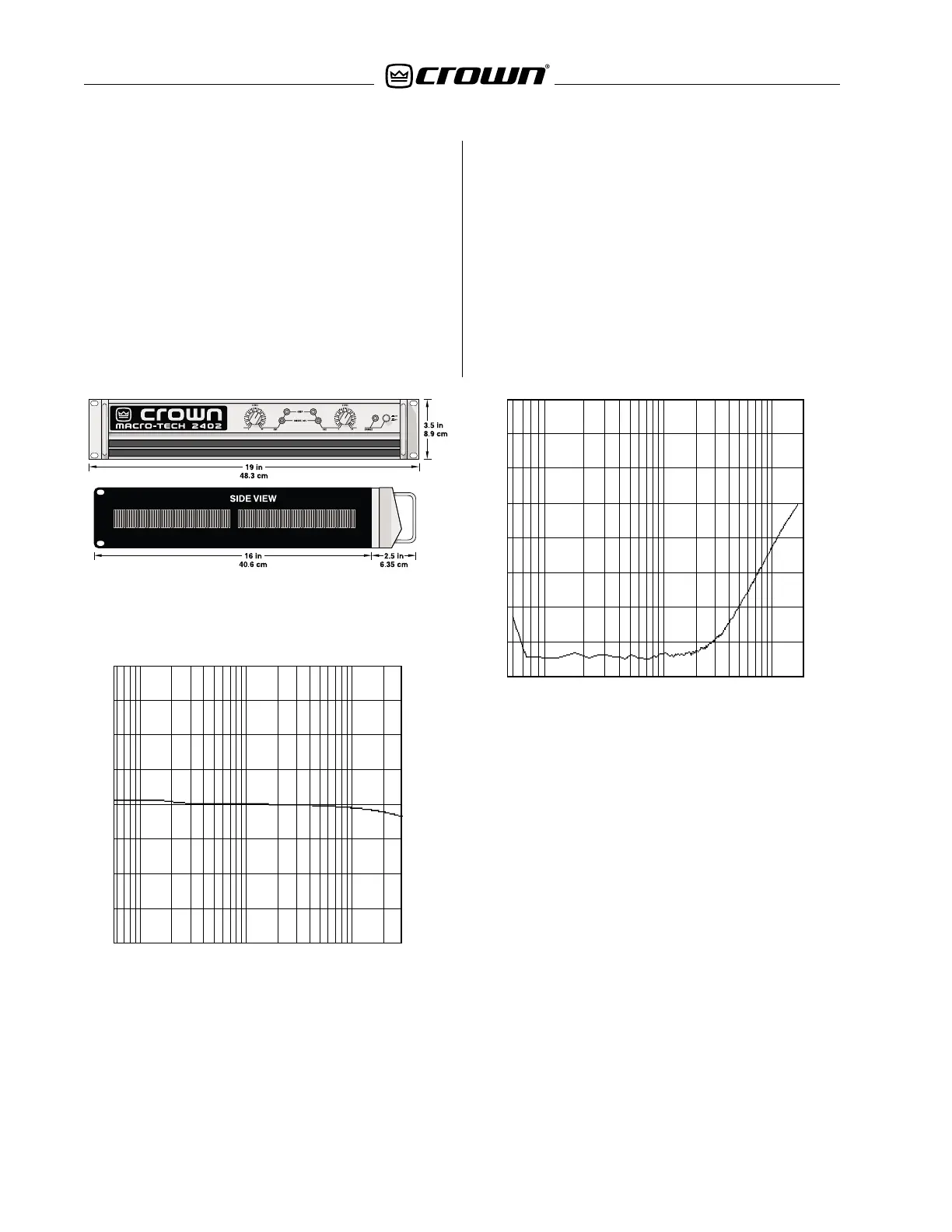

Figure 2.1 Dimensions
transistor stages, particularly in the case of elevated temperature.
Transformer overheating will result in a temporary shutdown of the
affected channel; when it has cooled to a safe temperature, the
transformer will automatically reset itself. Controlled slew-rate
voltage amplifiers prevent RF burnouts. And input overload
protection is provided by current-limiting resistance at the input.
Turn On: Four-second delay with no dangerous transients. Delay
time can be changed (contact Crown’s Technical Support Group).
Accessories: Crown PIP and PIP2 modules including IQ-PIP
modules.
Construction
Steel chassis with durable black finish, aluminum front panel with
Lexan overlay, and specially designed flow-through ventilation from
front to side panels.
Figure 2.4 Typical Crosstalk
TEF
®
+45˚
0˚
–45˚
100 1 K 10 K 20 K
FREQUENCY (Hz)
100 1 K 10 K 20 K
FREQUENCY (Hz)
dB
TEF
®
Figure 2.3 Typical Phase Response
Cooling: Internal heat sinks with forced-air cooling for rapid,
uniform heat dissipation.
Dimensions: EIA Standard 19-inch (48.3-cm) rack mount width
(EIA RS-310-B), 3.5-inch (8.9-cm) height, 16-inch (40.6-cm) depth
behind the mounting surface and 2.5-inch (6.3- cm) protrusion in
front of the mounting surface.
Approximate Weight: Center of gravity is 6 inches (15.2 cm) behind
front mounting surface.
120 VAC, 60 Hz Units: 51 pounds, 12 ounces (23.5 kg) net; 65
pounds (29.5 kg) shipping weight.
International Units: 48 pounds, 15 ounces (22.2 kg) net; 57 pounds,
6 ounces (26.0 kg) shipping weight.
–60
–66
–72
–78
–84
–90
–96
