MA-2402 Service Manual 130445-1 Rev. A
7-8 Exploded View Parts
©2000 Crown International, Inc.
Item Quantity Description Part # (CPN) Item Quantity Description Part # (CPN)
7.5 Cap Shelf Assembly
(Channel 1 and 2 are Identical)
Refer to figure 7.4 for Exploded View
1
2
3
4
5
3
1
1
1
1
6-32X.312 PAN HD T15 TT TYPE W
CLIP, MA2402 RECTIFIER SPRING
PWA, MA2402 PIP2 CAP/RECT
SHELF, MA2402 CAP/RECT
TAPE, KAPTON(POLYIMIDE) 1/2 IN
C9491-9
127467-1
SEE SECTION 8
127111-1
S6251-3

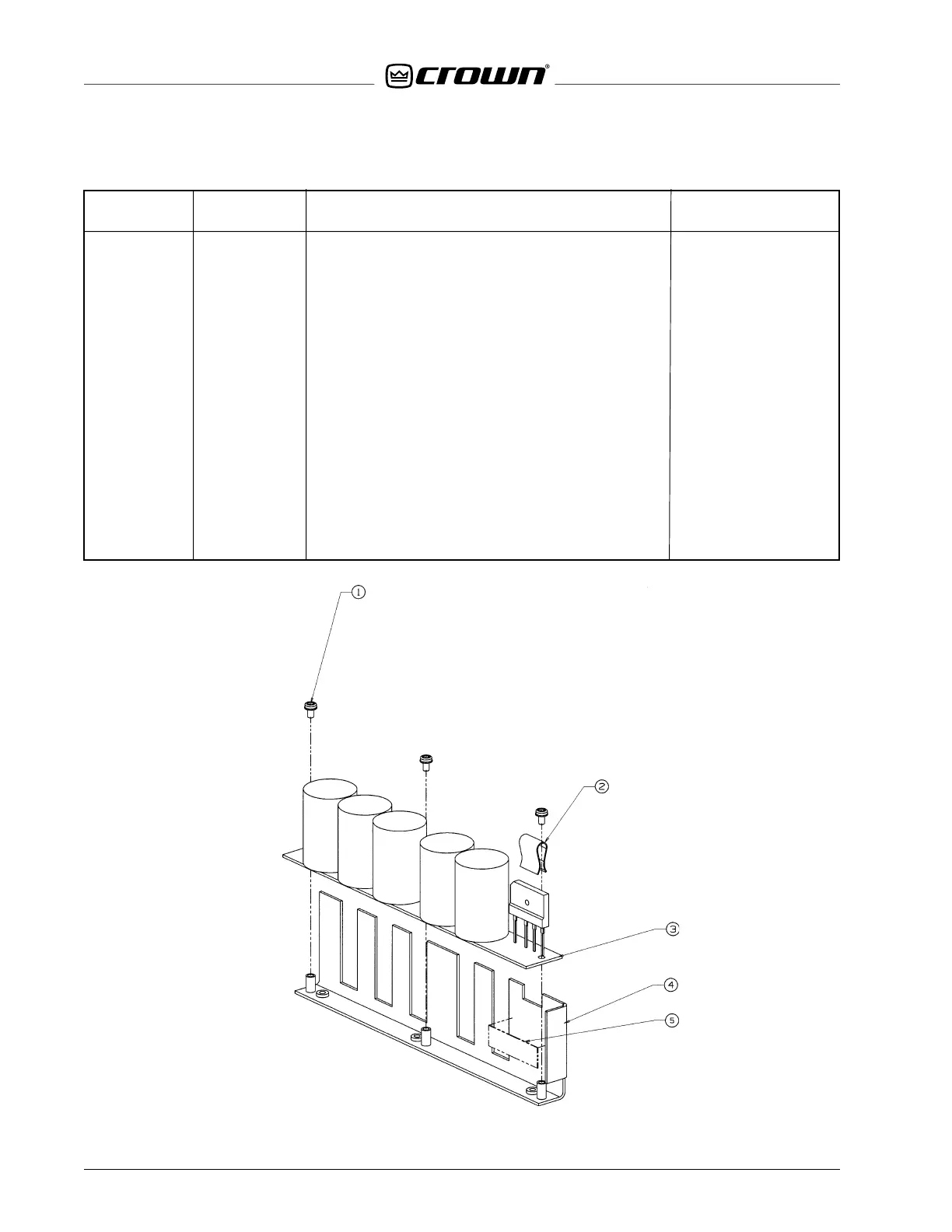

Figure 7.4 MA-2402 Cap Shelf Assembly
