Crown Macro-Tech MA-2402 - Heat Sink Assembly; MA-2402 Heatsink Assembly

MA-2402 Service Manual130445-1 Rev. A
Exploded View Parts 7-7
©2000 Crown International, Inc.
Item Quantity Description Part # (CPN)

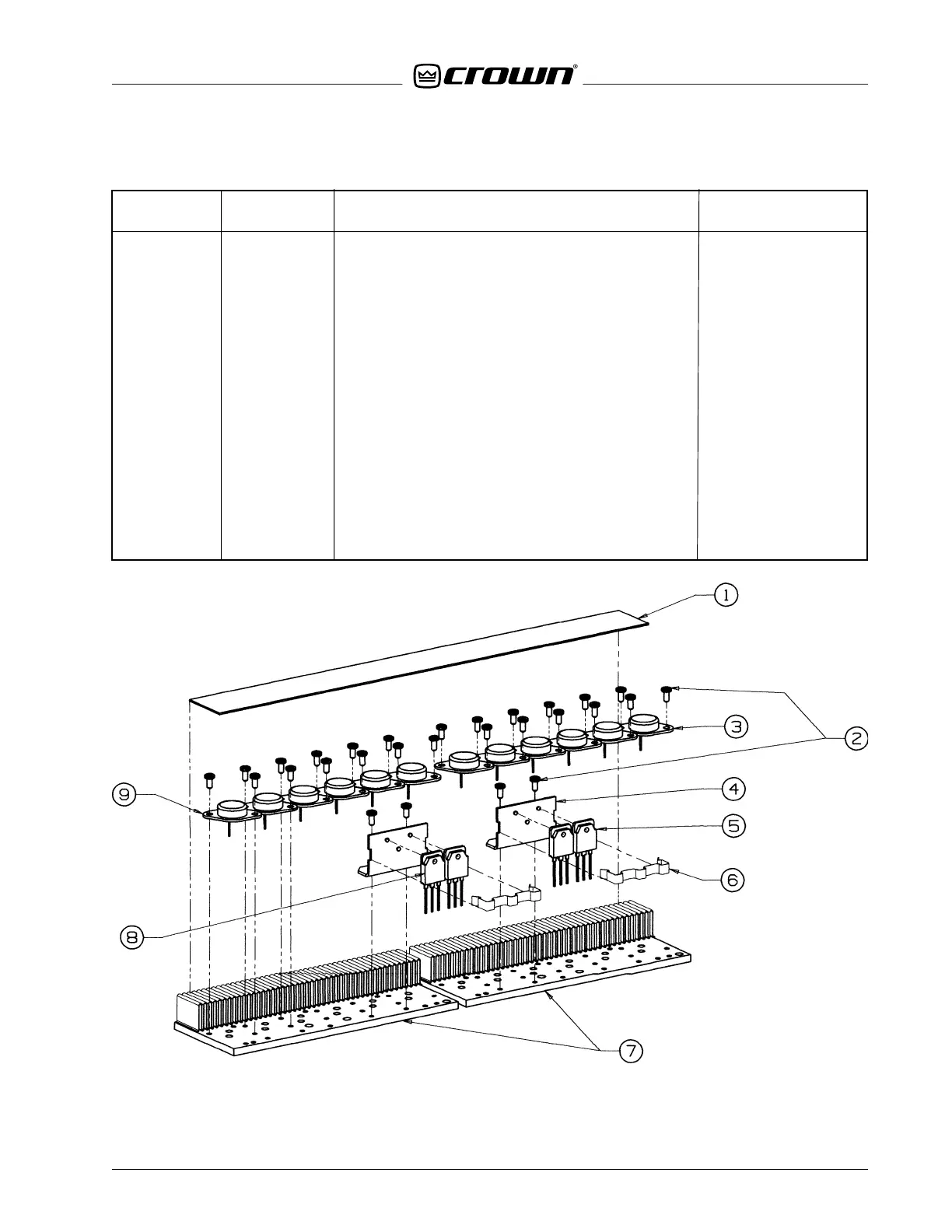

Figure 7.3 MA-2402 Heatsink Assembly
Item Quantity Description Part # (CPN)
7.4 Heat Sink Assembly
(Channel 1 and 2 are Identical)
Refer to figure 7.3 for Exploded View
1
2
3
4
5
6
7
8
9
1
24
6
2
2
2
2
2
6
INS, 1.38 X 13.56 PAPER
6-32 X .312 PAN HD T15 TT TYPE W
SJ7147 PNP PWR XSISTOR
(Q08, Q09, Q10, Q16, Q17, Q18)
BRKT, TO3P HEATSINK
2SA1186 PWR PNP T03P SANKEN
(Q07, Q15)
CLIP, TO3P MOUNTING
HS, COP 3/4" FINS #7 SOLDER
2SC2837 PWR NPN TO3P SANKEN
(Q03, Q11)
SJ7148 NPN PWR XSISTOR
(Q04, Q05, Q06, Q12, Q13, Q14)
D8867-0
C9491-9
C8188-2
D 7666-7
C8573-5
D7665-9
M21322J8
C8574-3
C8187-4
