5.3.3 Flexible transfer lines
5.3.3.1 Type 130/130
This flexible transfer line (or hose), which vary in
length, is intended to fill the
TP
from a supply tank or
vacuum line. There is a screw-on connector at both
ends. One end is connected to the source valve outlet
and the other to the connector (Figure 5-2) on the TP
storage tank.

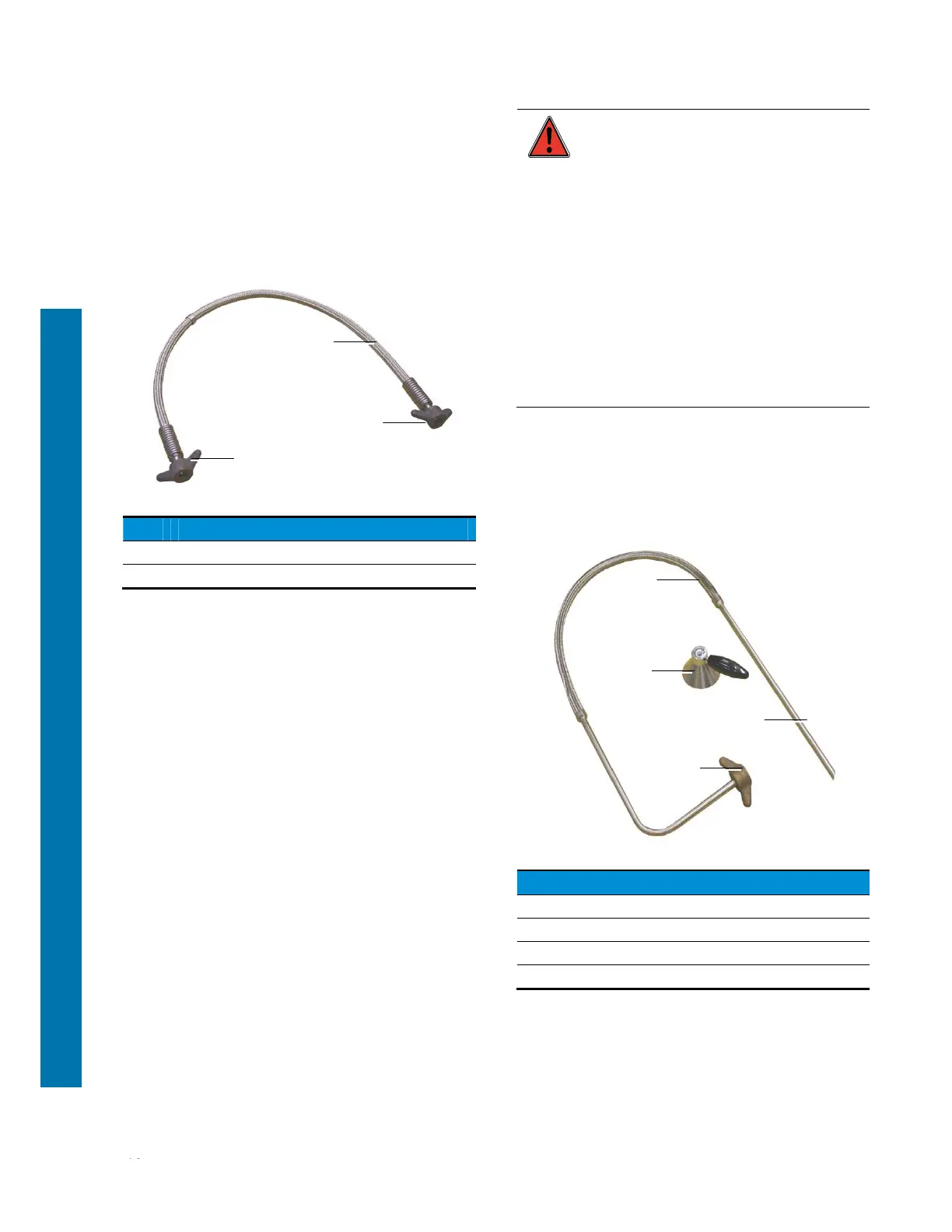

Figure 5-5: View of the 130/130 transfer line.
Ref. Function
1. Screw-on connector.
2. Flexible line.
Cryopal flexible lines comply with the
EN12434 standard.
It is essential to ensure that a safety
valve calibrated to 15 bar maximum is
inserted at one end of the flexible line
(on condition that the operating
pressure of the line is greater than or
equal to 15 bar gauge pressure).
As a reminder, using any accessories
(hoses, fittings etc.) that do not comply
with the requirements set forth by
voids
the manufacturer's liability and warranty
.
We therefore ask you to check that any
flexible lines or connectors used (other
than those supplied by Cryopal) are
approved and certified for an operating
pressure of 15 bar (gauge bar).
5.3.3.2
Type 130 TC
This hose (1), which is 0.80 m in length, is intended
for transferring between a
TP
tank and a
TR
tank or a
different one. There is a screw-on connector (4) at
one end for connection to the withdrawal valve outlet.
A 10 mm diameter rigid tube (3) with a protective
handle (2) is attached to the other end.
Figure 5-6: View of the 130 TC transfer line.
Ref. Function
1. Flexible pipe.
2. Handle.
3. 10 mm diameter rigid tube.
4. Screw-on connector.
1
2
1
4
3
2
1
