5.4 Manual equalisation of the lift platforms
If the lifting platforms are not level allow the hydraulic oil to cool down and check the heights
again. If the platforms are still unequal a manual equalisation must be performed.
The manual equalisation process must be performed without a vehicle. During
the process there is no safety device ensuring that the platforms remain level. If the
manual equalisation process is performed with a vehicle present, the danger exists
that the lift will become unstable and may result in the vehicle falling from the lift.
• Push the bypass switch located behind the cover on the right side of the command unit
(See pic.5 and pic.6)
The bypass switch may only be used to restore the normal operating condition of the
lift. Using the bypass switch while the lift is loaded with a vehicle may result in the
vehicle falling from the lift.

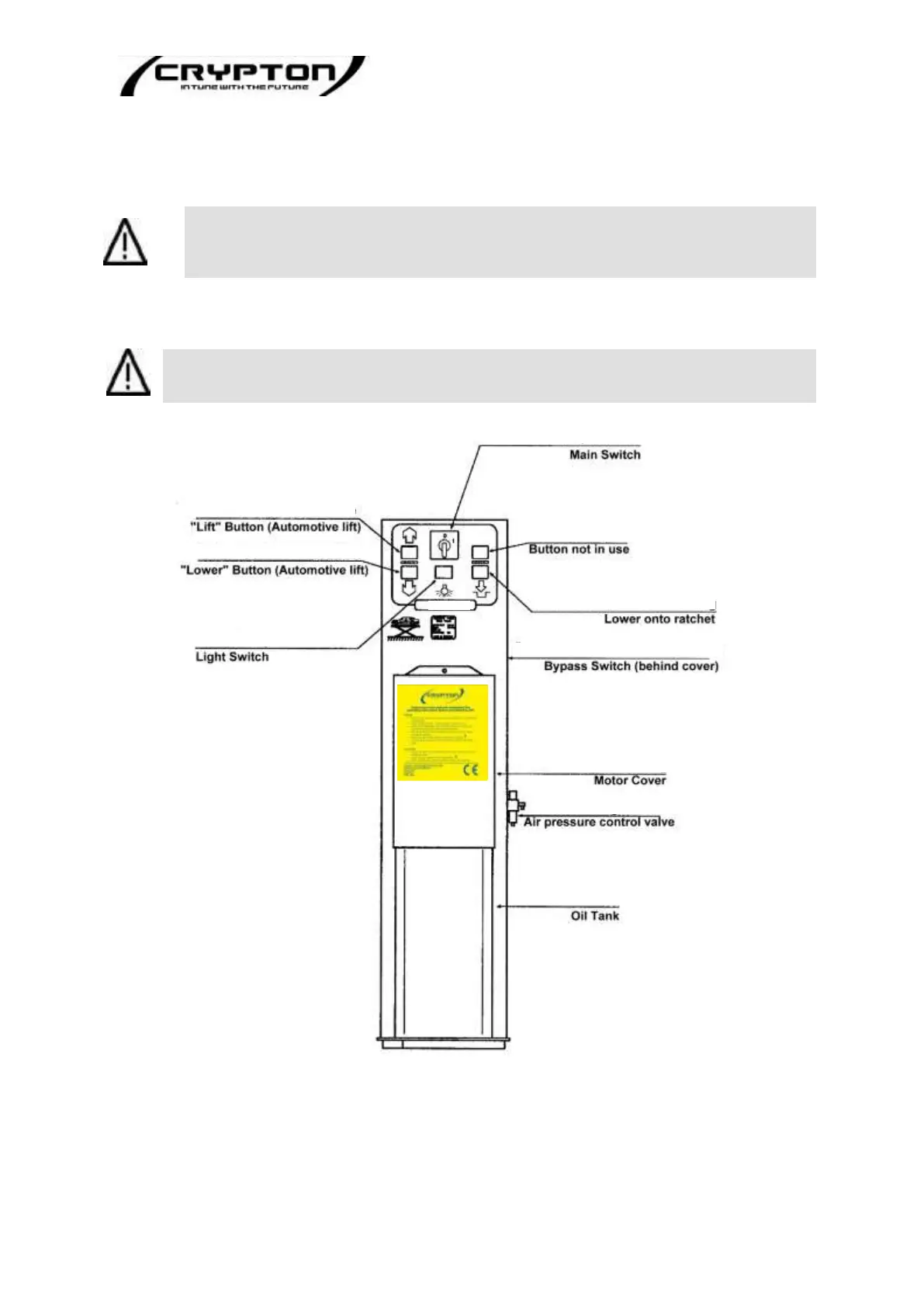

Pic 5: Operating Unit
• Lower the lift to its lowest position, drive the vehicle off the lift
• Raise the lift approximately 500 mm.
• Pull equalisation lever (pic.6) 90° upwards and hold it in position.
The equalisation lever is located in the right side of the command unit (behind covering)
• Simultaneously push the bypass switch, located behind the cover in the right side of the
command unit.
