Operating Instruction and Documentation
CSL640/641
- 48 – TES1518/E
• While pulling the equalisation lever and pressing the bypass switch, Press either the ”Up” or
”Down” buttons to adjust the height until the height of the two platforms are equal.
• Once the platforms are equal in height, release the equalisation lever (It will return
automatically) and close the covering.

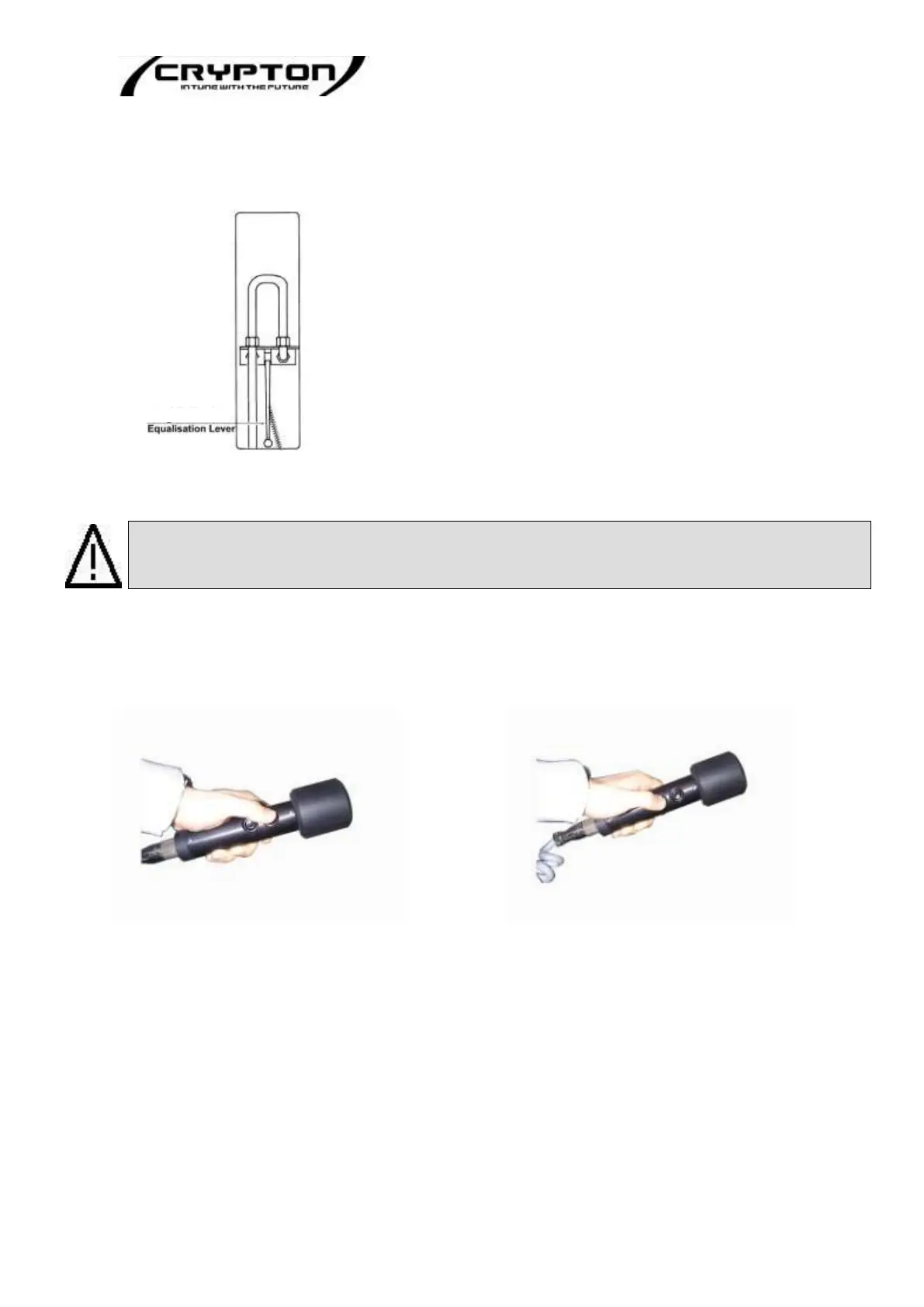

Pic 6: Equalisation Lever
5.5 Play detector
Warning !
Only operate the Play Detector when the lift has been lowered into its Safety latch position
and the cross platform traverse bar is correctly positioned and secured.
Application
The Play detector is a tool for the recognition of slackness in the ball and socket joints of
vehicles. The operating unit is equipped with a operating switches and a lamp.
The axle play detector should be operated and used in accordance with the MOT testing procedure
which can be found in the relevant up to date testers manual.
a. By pressing the top button the cycle of the left plate will activate. After activation release the
button and check the ball joints and steering components according to the MOT procedures.
b. By pressing the lower button the cycle of the right plate will activate. After activation release
the button and check the ball joints and steering components according to the MOT
procedures.
• After checking, put the operating unit into the holding device. The lamp will go off.
Pic.7
Press the button to start the cycles with
the left play detector.
Cycle: centre => left => right => centre
Pic.8
Press the button to start the cycles with
the left right play detector.
Cycle: centre => left => right => centre
