OUTPUTS
Output default is normally closed. Output 1A + 1B are volt free contacts, that are normally closed and
configured to indicate path fail conditions to the control panel.
Output 2 is a single wire switch negative output with a 100mA max current. As default, this output is unused
but is configurable by calling CSL Technical Support.
IF THE DEVICE IS POWERED BY 24V (FIRE PANEL), RTN TERMINALS WILL STILL DELIVER 12V.
SERIAL / RS232 / 485 / TTL PANEL CONNECTIONS
As standard, the DualCom Pro range is supplied with a serial cable compatible with Honeywell (RS485), Orisec
(TTL), Pyronix (RS232) and Texecom (TTL) panels - see Figure 6 for more information. Other types may require
an additional cable/plug on purchased on our Installer Shop.
8

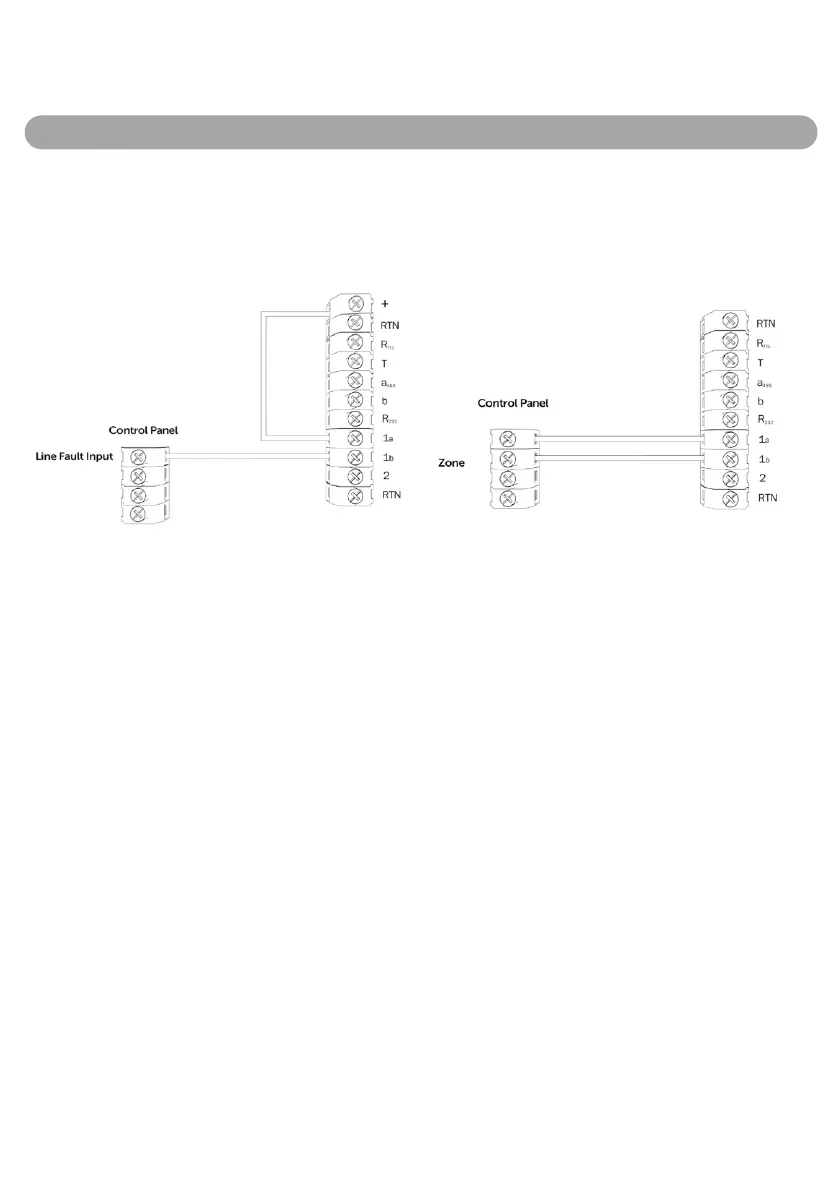

Figure 5 - Example of Fault Output Wiring
DIAL CAPTURE
DualCom Pro can be fitted with an optional Modem Capture Module (purchased separately - part number
CS.1.402). When using this module, it must be plugged into the main board via the connector shown on
Figure 1.
If you are using a dual radio variant of the DualCom Pro, the plug-on radio module must be removed and
refitted into the Radio/Wi-Fi Module Enclosure and connected via the RS422 BUS connections on both boards.
With the radio module removed the Modem Capture Module can be fitted onto the DualCom Pro. Both the
Modem Capture Module and Radio/Wi-Fi Module Enclosure (part number CS.1.500) can be purchased via the
CSL Installer Shop.
PANEL CONNECTION
Your device will come pre-configured without a panel connection (pins only). To enable serial connection to a
control panel, go to My Base and select the panel type.
Alternatively contact CSL Technical Support via support@csl-group.com or call +44 (0)1895 474444.
