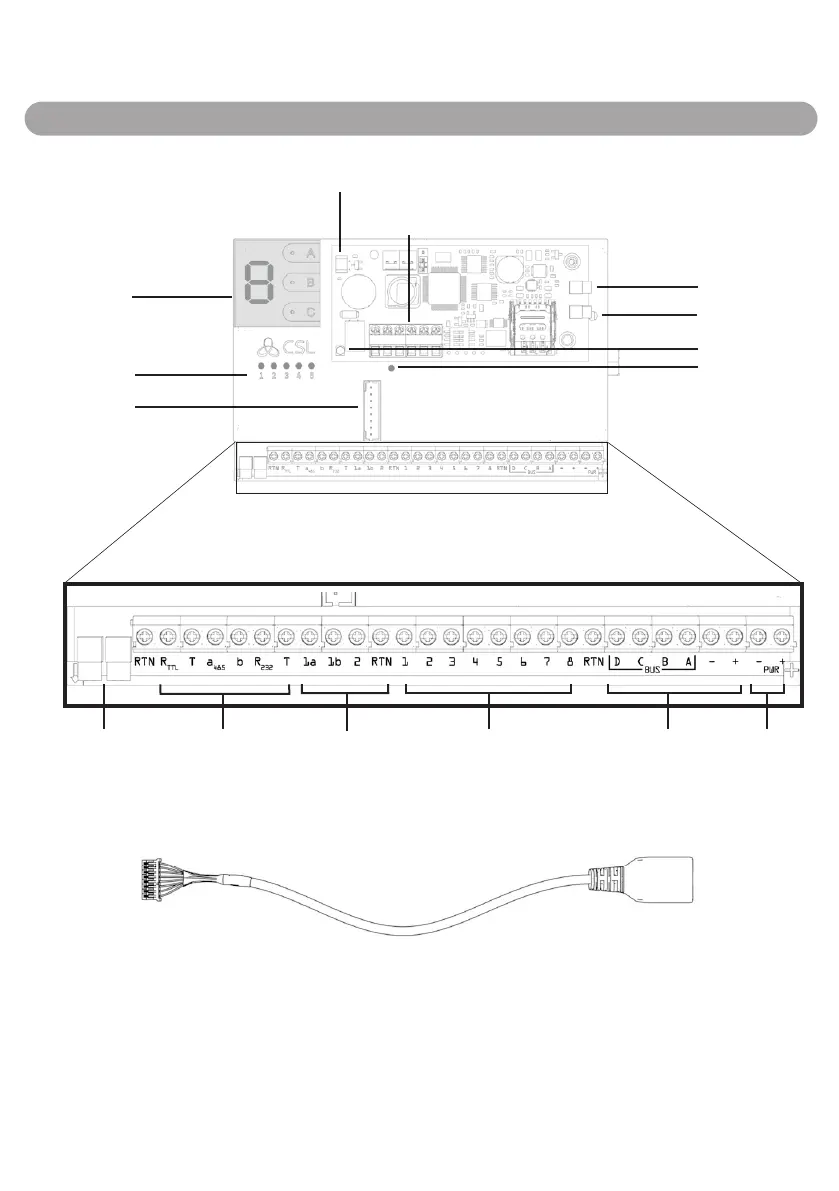

Figure 1 - Diagram

Figure 2 - LAN Adaptor

Display

Additional radio module

for GradeShift Pro variant

LAN Connector

LEDs

To enable the device to use LAN, you will need to connect the LAN adaptor (above) to the LAN Connector (on the

DualCom Pro).

ENSURE AERIAL/AERIALS ARE INSERTED INTO THE MMCX CONNECTOR WITH THE RED DOT.

Aerial Connectors

Connection terminal block

LED

Ethernet LED

PWR +ve & -ve

Aerial Connectors

Outputs

1A, 1B & 2

TTL/RS485/RS232

panel connections

Pins 1-8

Remote module

BUS

Reset Button
