3.2.9.3FirmwareUpgrade
If bugs are discovered, if functions are added, or if factory default settings are changed, the firmware in the converter will require
upgrading. The only method to do upgrade for this converter is through the local Web (HTTP) user interface. The firmware image is uploaded
from the browser (Post), it is checked for integrity, the flash is erased and then the flash is written with the new image.
DO NOT LET ANY POWER INTERRUPTION OCCUR DURING THE UPGRADE PROCEDURE.

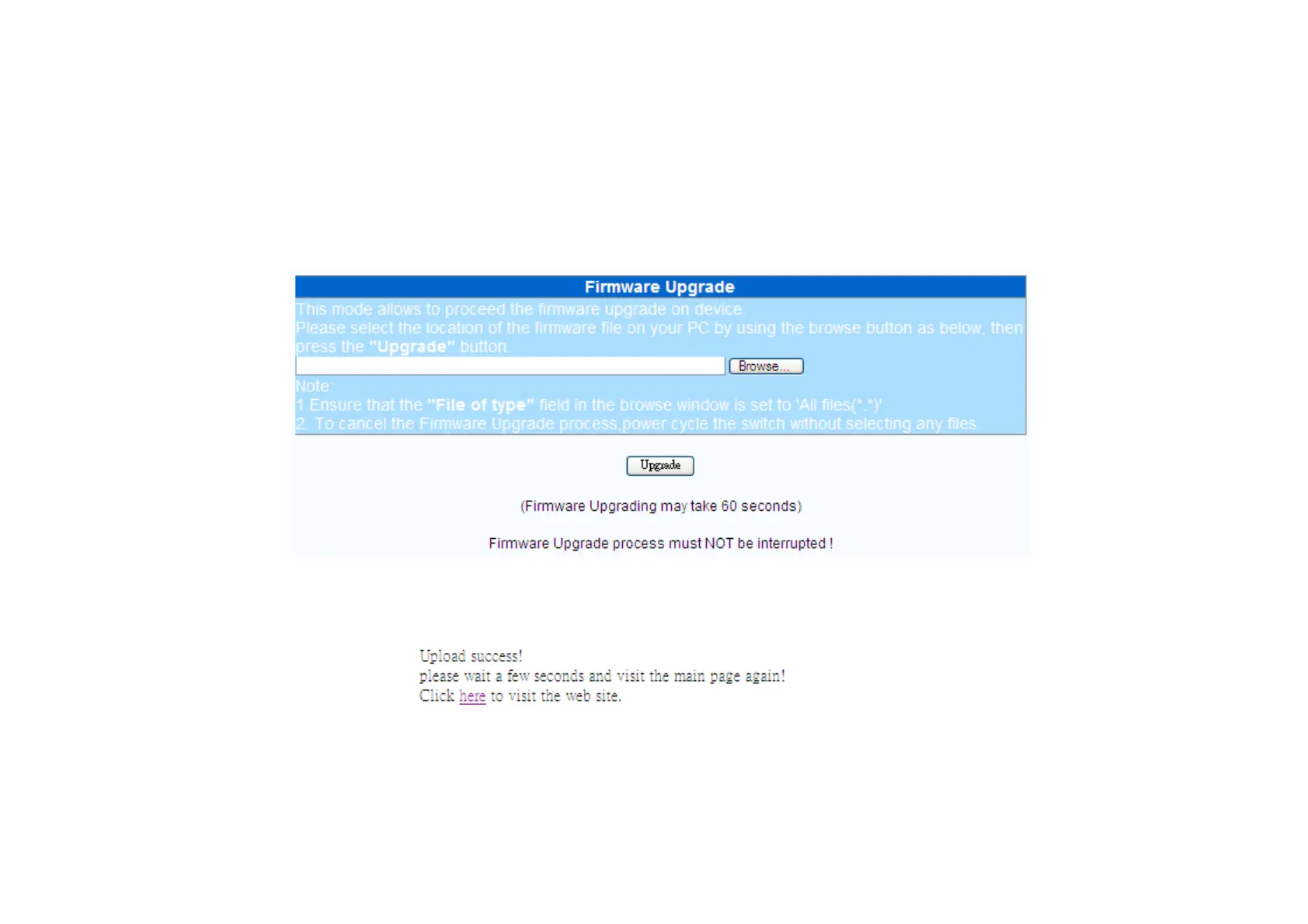

Click the “Browse” button and locate the image upgrade file through the “Choose File to Upload” dialogue box, then click “Open”. Next,
click the “Upgrade” button.
The “Upload success!” indicates the image was transferred OK. Do not do anything for the next 60 seconds!!!!. After 60
seconds, you may click the link to re-login to the web interface.
42
