2.2 Electrical Installation
With a built-in AC power chassis, AC power is supplied to the chassis through a standard IEC C14 3-prong receptacle, located on the rear
of the chassis. Any national power cord with IEC C13 line plug may be used to connect AC power to the power module. With a built-in DC
power chassis, DC -48V is connected to the terminal block located on the rear of the chassis, observing the proper polarity. The chassis
should always be grounded through the protective earth lead of the power cable in AC installations, or via the frame ground connection for DC
installations.

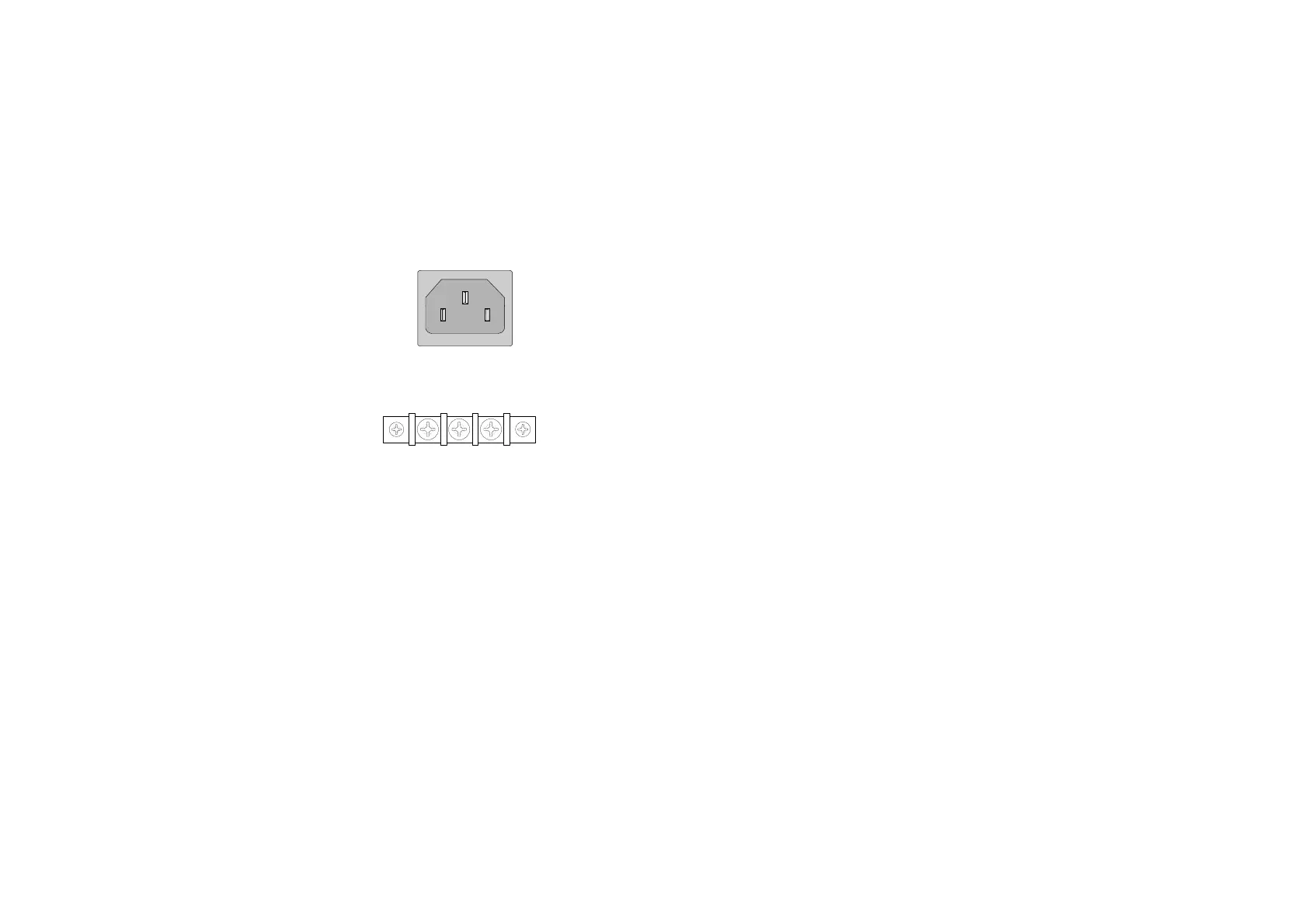

Left: Live line
Right: Neutral line
Middle: Ground
DC IN
Left: -V (-48V)
2.3 Installation of SFP Modules
CTC Union supplied SFP modules are of the Bale Clasp type. The bale clasp pluggable module has a bale clasp that secures the module
into the SFP cage.
2.3.1 Inserting a Bale Clasp SFP Module into the Cage
Step 1 Close the bale clasp upward before inserting the pluggable module.
Step 2 Line up the SFP module with the port, and slide it into the cage. Seat it. Attach fiber cable.
2.3.2 Removing a Bale Clasp SFP Module
Step 1 Remove fiber cable. Open the bale clasp on the SFP module. Press the clasp downward with your index finger.
Step 2 Grasp the SFP module between your thumb and index finger and carefully remove it from the SFP cage.
-V FG +V
Right: +V (0V)
Middle: Frame Ground
18~75 VDC
