FRM220 Chassis Quick Installation Guide
35
Line card options
The FRM220 is capable of supporting a variety of in-band managed or non-managed line card types
which may be mixed and matched in any slot of the rack. See below for a brief of the linecards at the
time of this printing. Please refer to the latest version of FRM220 NMC User Manual for details of all
the line card options for the FRM220.
Installation
Introduction
The Installation chapter will cover the physical installation of the FRM220, Rack Mount In-Band
Managed Series Fiber Converter Platform Chassis, the electrical connections, interface connections
and cabling requirements. A brief overview of the functional components such as main unit and
management options will also be outlined in this chapter.
Required Tools
You will need these tools to install the FRM220:
Number 2 Phillips screwdriver for the 3mm and the 12-24 rack installation screws.
Wrist strap or other personal grounding device to prevent ESD occurrences.
Antistatic mat or antistatic foam to set the equipment on.
Site Preparation
Install the FRM220 within reach of an easily accessible grounded AC outlet or three wire (-48VDC,
Power return, Earth Ground) central office power. The AC outlet should be capable of furnishing 100 to
240 VAC. Refer to 2.4 Electrical Installation. Allow at least 10cm (4 inch) clearance at the front of the
FRM220 for the Fiber and other copper cables.
Mechanical Assembly
The FRM220 is designed for rack mount installation and will require 2U space in a standard EIA 19"
or 23" rack. The FRM220 has two removable fan units that install in the rear side of the chassis. Without
fans, excessive temperatures within the unit might cause it to electrically shutdown. The FRM220
chassis is delivered completely assembled, however power modules and converter cards may or may
not be installed in the chassis upon delivery. The rack mount adapters may be placed along the front or
centrally located on the chassis. The same brackets also allow installation into a 23" rack and in this
configuration, central mounting is recommended.
Rack mounting

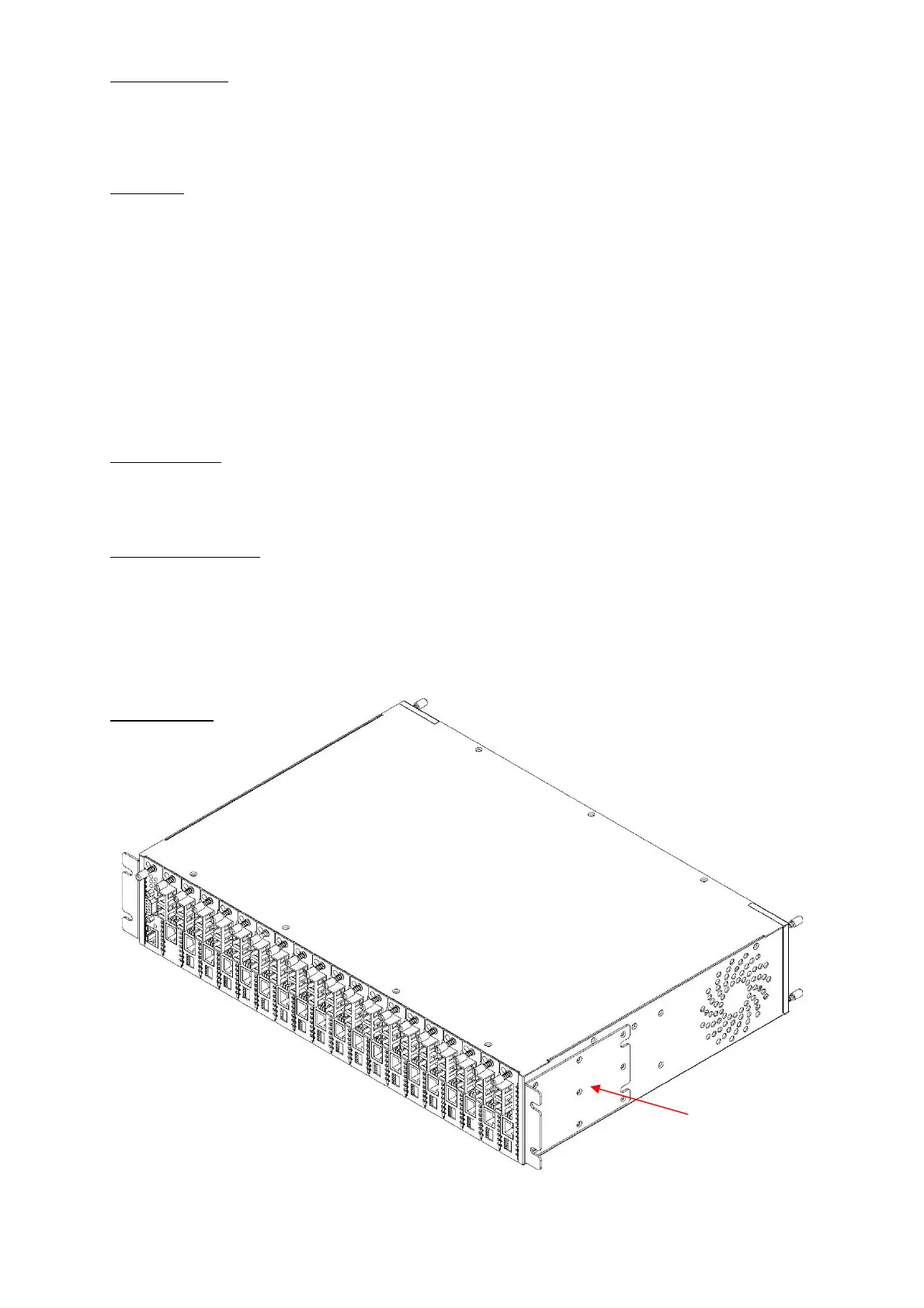

Figure. Standard 19" Rack-Mount Installation of FRM220 Unit requires 2RU space
