CTC Union FRM220 Series User Manual

FRM220 Chassis Quick Installation Guide
36

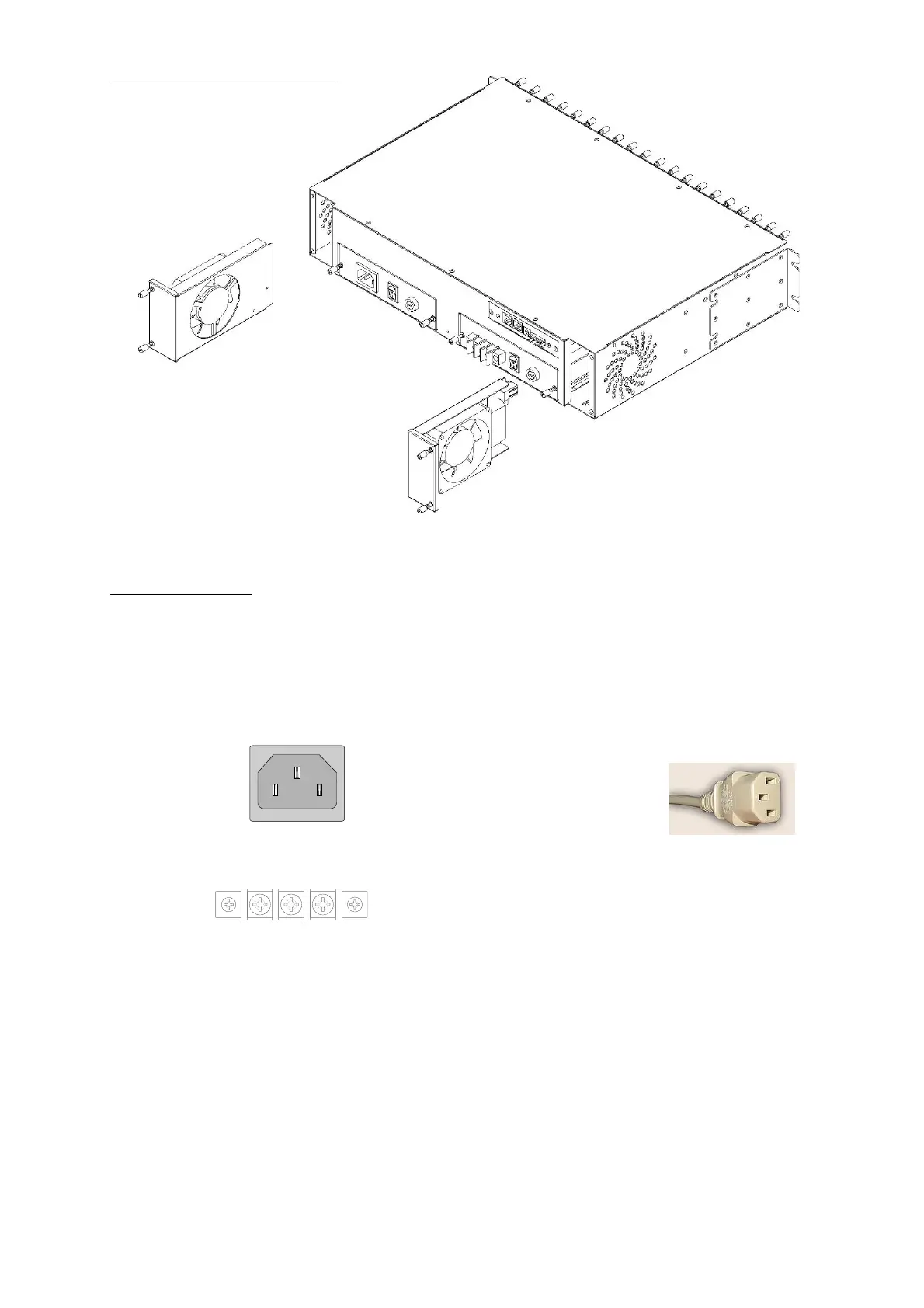

Fan Units Removal/Replacement
Figure. Removal/Replacement of FRM220 Fan Units
Electrical Installation
With an AC power module, AC power is supplied to the FRM220 through a standard IEC C14 3-
prong receptacle, located on the rear of the module. Any national power cord with IEC C13 line plug
may be used to connect AC power to the power module. With a DC module, DC -48V is connected to
the terminal block located on the rear of the module, observing the proper polarity. The FRM220 should
always be grounded through the protective earth lead of the power cable in AC installations, or via the
frame ground connection for DC installations.
Figure. IEC (AC) & terminal block (DC) power connector pin assignment
IEC C13 line plug
Left: Live line
Right: Neutral line
Middle: Ground
Left: -V (-48V)
Right: +V (0V)
Middle: Frame Ground
DC IN
-V FG +V
36~60VDC
