6.4.7 VLAN
This switch supports 802.1Q VLAN, Port-based VLAN, and Private VLAN.

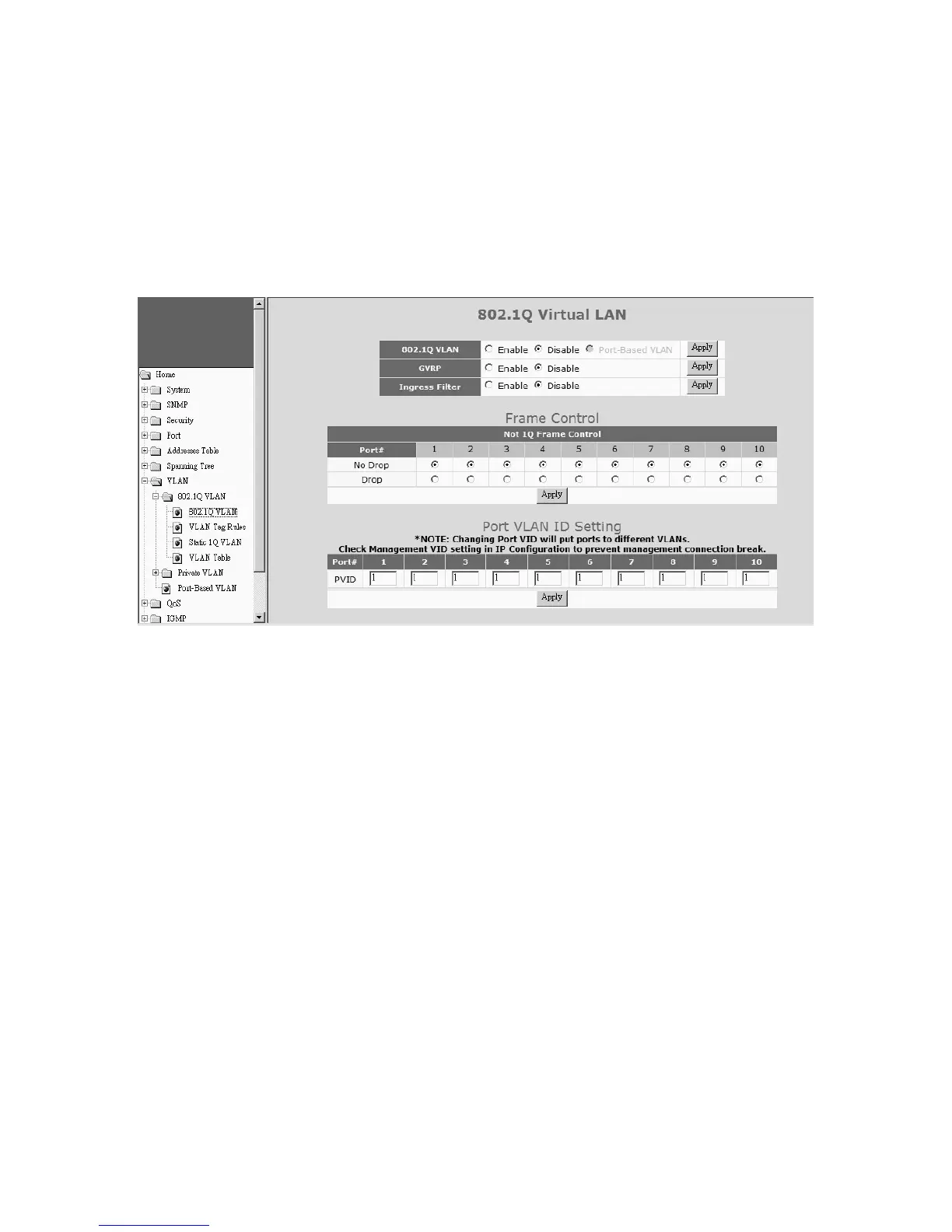

1). 802.1Q VLAN
1-1). 802.1Q VLAN
802.1Q VLAN : This is used to enable/disable 802.1Q VLAN function.
GVRP : The GVRP protocol can learn remote 802.1Q VLAN on other switches
and add to dynamic 802.1Q VLAN table. You can enable/disable the operation of
this protocol.
Ingress Filter : This is used to enable/disable doing VLAN filtering function at
ingress port. If it is enable, the ingress port must be in the same VLAN for packet
forwarding. If it is disable, VLAN filtering function will be done at egress port.
[Frame Control]
This function could be used to drop non-802.1Q frames (untagged packets).
[Port VLAN ID Setting]
PVID is used to set Port VLAN ID. When untagged packet is received, PVID of
the ingress port will be used as the its VLAN ID. PVID is also used as the VLAN
ID for tag adding when untagged packet is translated to tagged packet.
