114

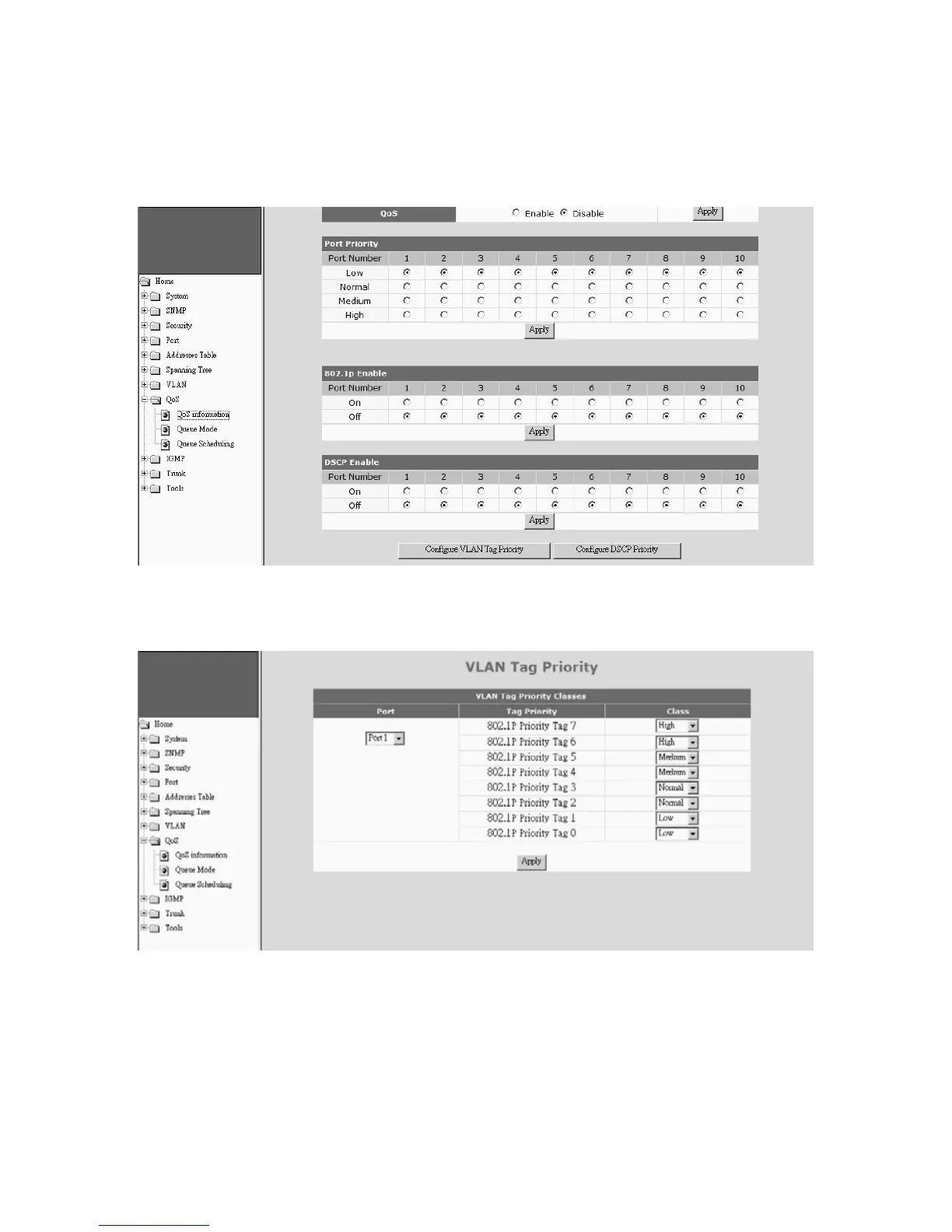

[Configure DSCP Priority] button : Click this button can go to the “IP Differential
Service (DiffServ) Configuration” page for DSCP priority values (0~63) to priority
queue mapping setting.
[802.1P Priority Mapping]
For 802.1P priority, priority value (0~7) in VLAN tag will be used for QoS
operation. And the mapping of priority values to priority queues (High/Middle
/Normal/Low) could be defined here.
This mapping is done by port. And “All” could be selected for every port.
If 802.1P priority function is enabled, these settings will be followed for QoS
operation.
