2-13 Boot To Mower Deck Installation
Continued

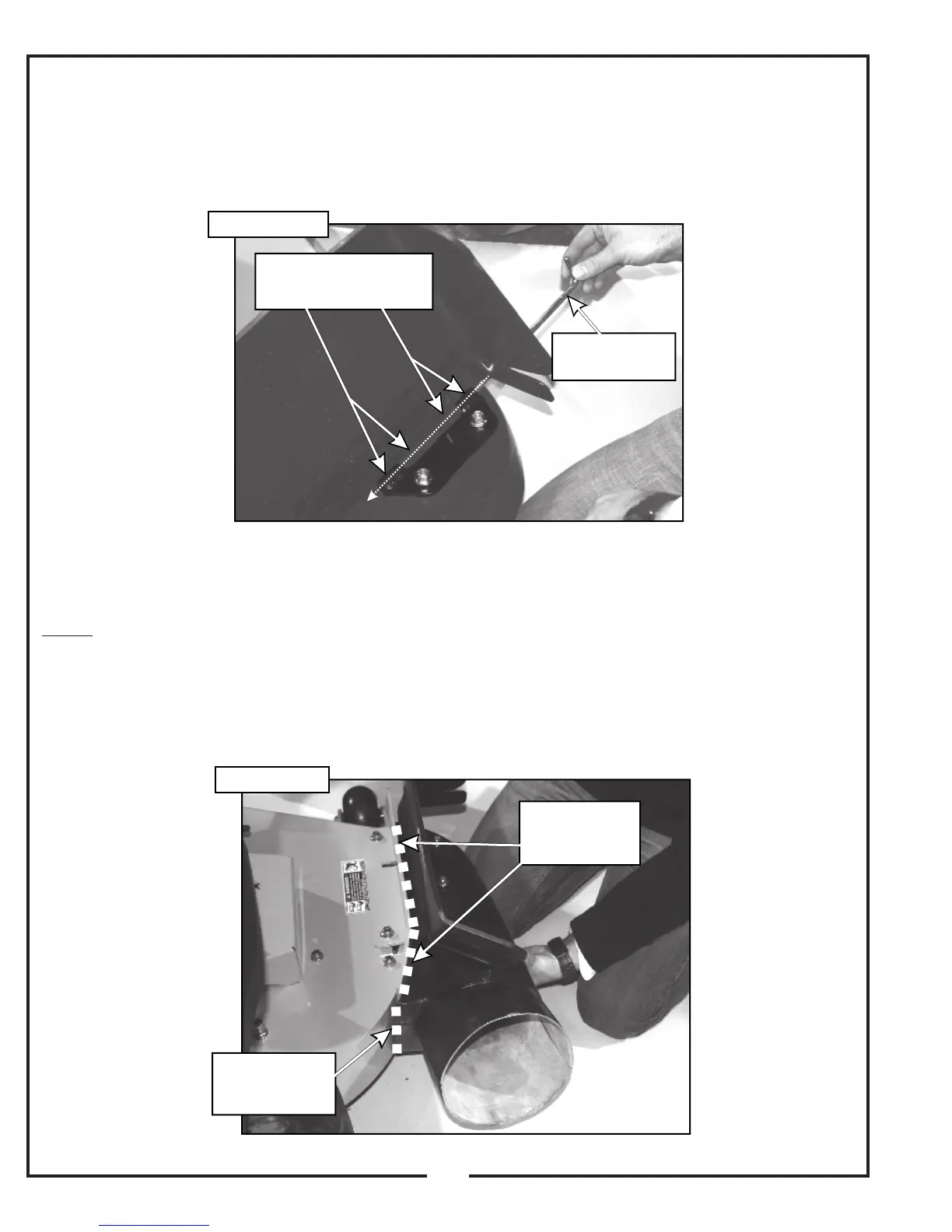

Step 11: Secure the boot plate assembly to the deck
mount plate using (1) boot rod P#(B0244). Insert the
boot rod from the front of the deck as shown in
Figure 2-13m.
Step 12: Hold the edge of the boot flush to the mower
deck and slide the entire boot kit (deck mount plate, boot
plate and boot) forwards or backwards to create a snug
fit on the top and back edge of the boot as shown in
Figure 2-13n.
NOTE: To maximize the effectiveness of your collection
system, you want to minimize any gaps between your
boot and the mower deck. The boot kit assembly is
designed to fit all deck sizes available for the LZ and SZ,
therefore your actual fit-up may look slightly different
than Figure 2-13p. Figure 2-13p shows the fit-up for an
LZ model with a 60 inch select-cut deck.
Slide Boot Rod Through
All Four Bushings
Insert Boot Rod
As Shown
Boot Should Fit
Snug Along The
Back Edge
Boot Should Fit
Snug Along
The Top Edge
22
Figure 2-13m
Figure 2-13n
