2-13 Boot To Mower Deck Installation
Continued

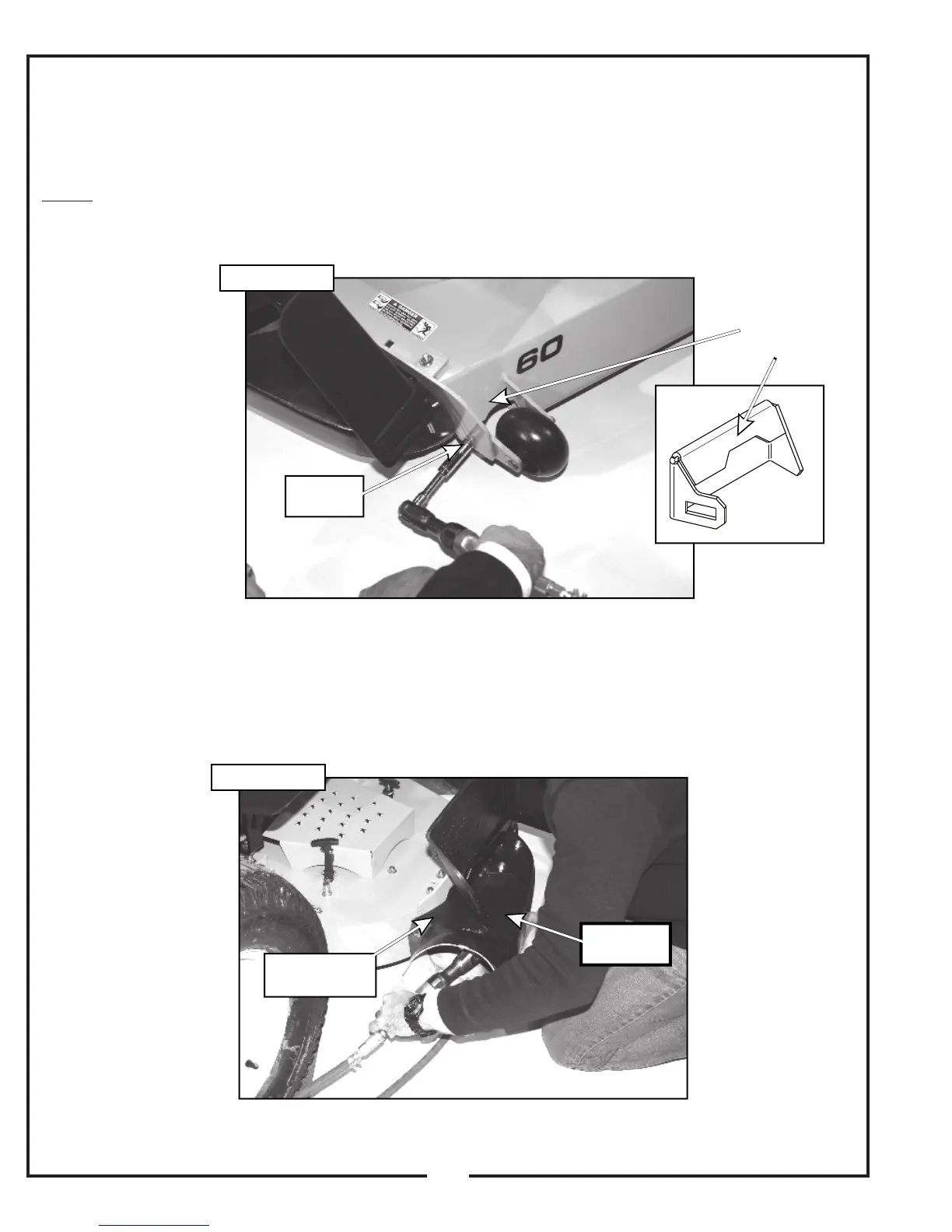

Step 15: Tighten the hardware shown in Figure
2-13q.
NOTE: (For Select-Cut Models Only) Adjust the deck
baffle so that the angle on the baffle flange matches the
slope on the cutting deck. Refer to Section 2-12 for
reference on deck baffle positioning.
Step 16: While holding the boot snug to the mower
deck, tighten the top set of hardware on the discharge
chute stiffener. You can access this hardware through
the boot opening as shown in Figure 2-13r.
Deck Baffle
For Select-Cut
Models
Mate Baffle Flange
Flush To
Inside Of Deck
Tighten
Hardware
Tighten Upper
Hardware
Hold Boot
In Position
24
Figure 2-13q
Figure 2-13r
