2-13 Boot To Mower Deck Installation
Continued

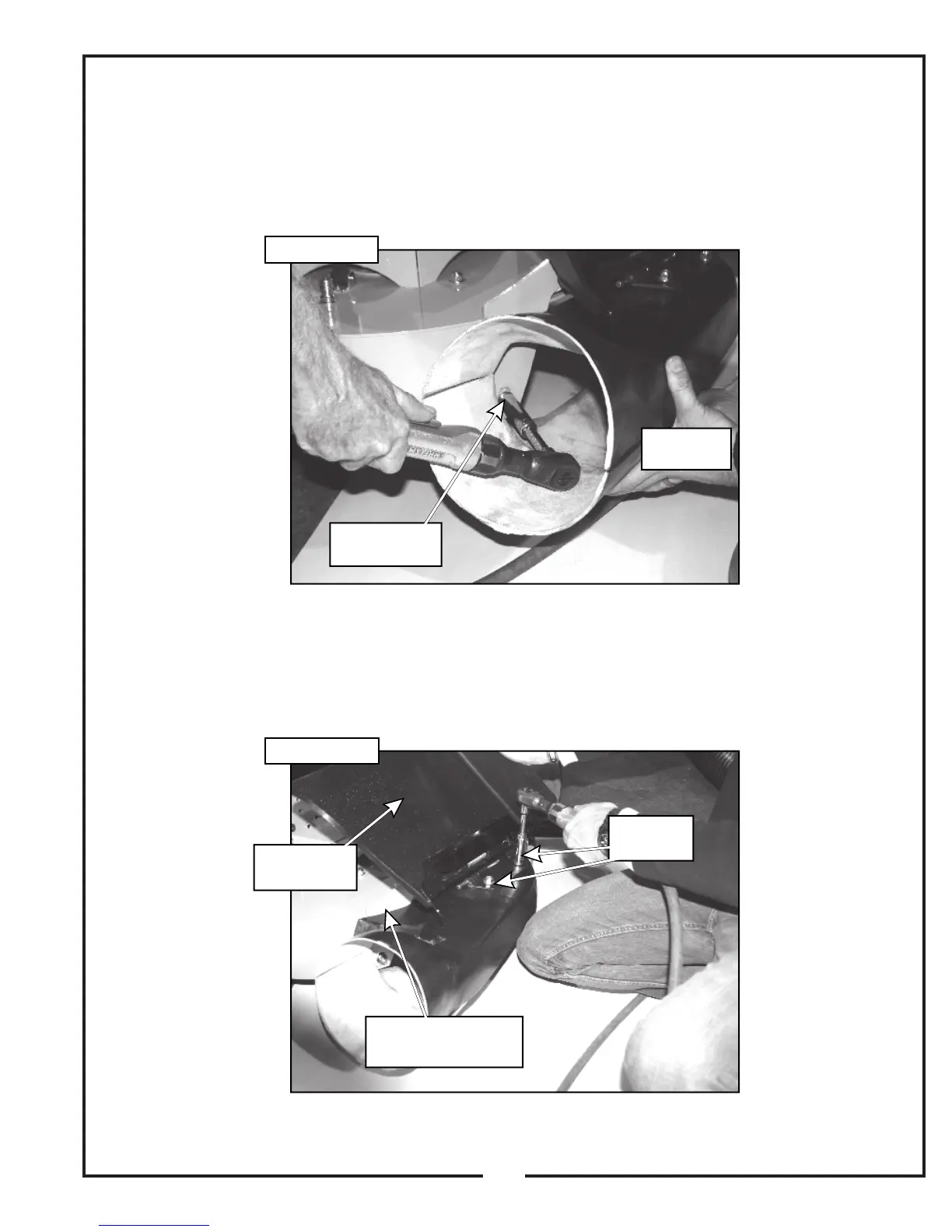

Step 17: While still holding the boot snug to the mower
deck, tighten the lower set of hardware on the discharge
chute stiffener. You can access this hardware through
the boot opening shown in Figure 2-13s.
Step 2-18: While holding the boot snug to the mower
deck, lift the discharge chute. Tighten the two 3/8”-16
nylon flange lock nuts on the boot plate as shown in
Figure 2-13t.
Hold Boot
In Position
Tighten Lower
Hardware
Figure 2-13t
Hold The Boot Snug
To The Mower Deck
Tighten
Hardware
Lift Discharge
Chute
25
Figure 2-13s
Figure 2-13t
To Next Page
