Transmission 5
62
5.3.2 Disassembly of Transmission Case
Assembly
(Manual Transmission Specification)
1 Follow the following procedure for disassembly
of transmission case assembly (7530) after
removing the link bracket.
1. Remove the PTO drive shaft.
2. Remove the pipe.
Remove the eye bolts and remove the pipes.
3. Remove the IND-PTO valve by removing the
mounting bolts.
(2 places as shown in the drawing)

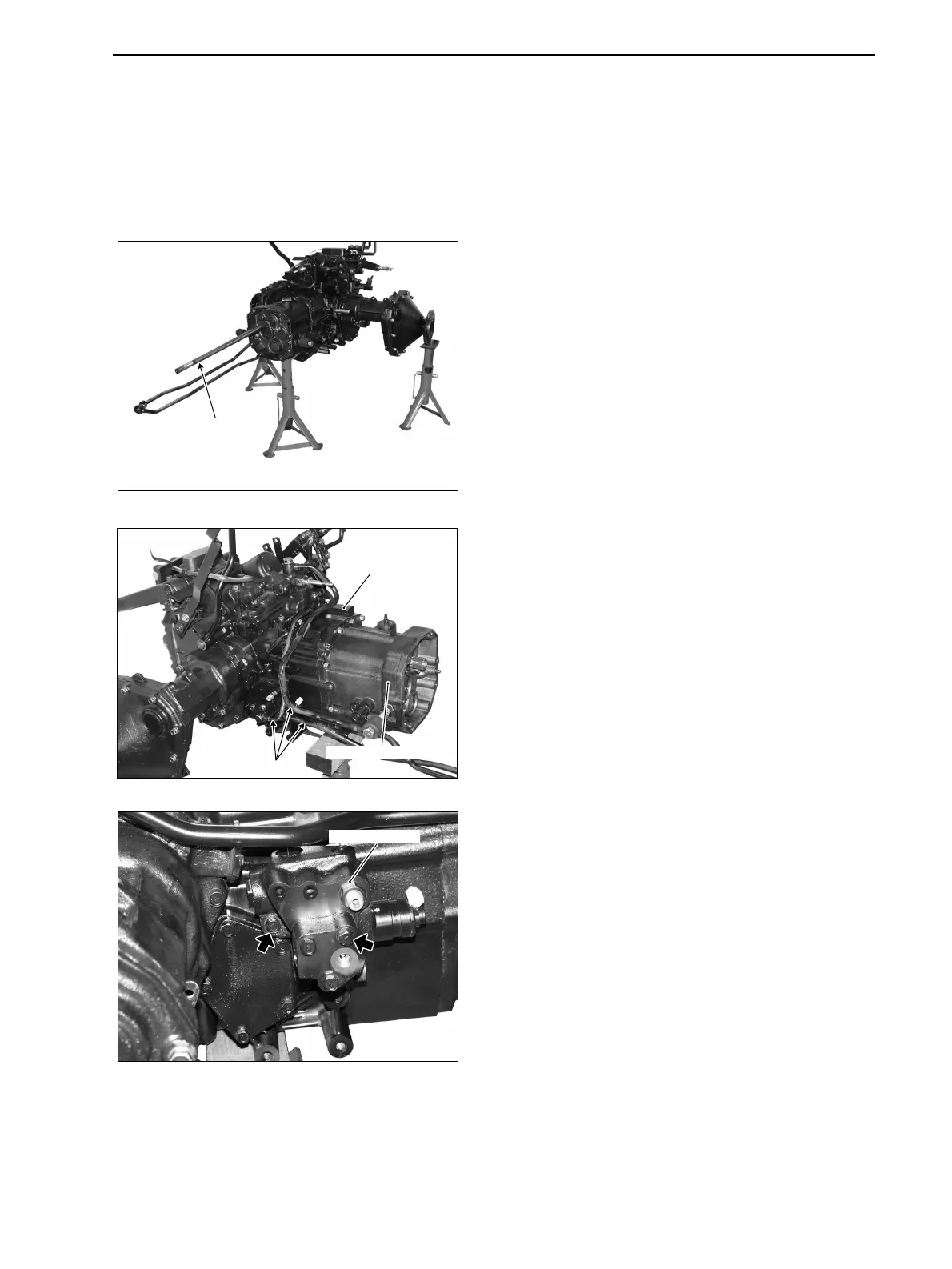

PTOshaft
GZ3W24-017
Bearingholder
Pipe
Transmissionhousing
GZ3W24-018
INDPTOvalve
GZ3W24-019
