5 Transmission
63

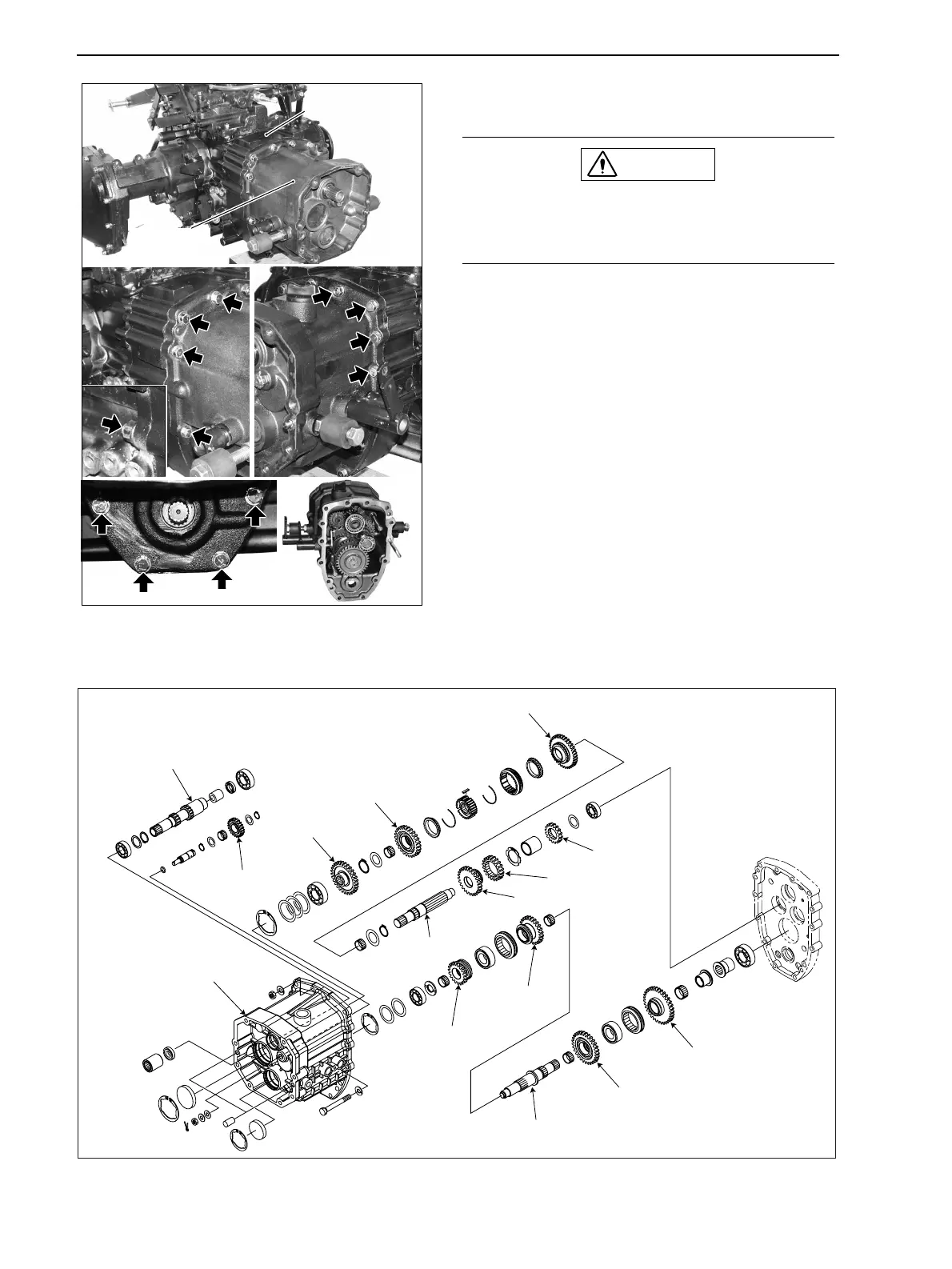

4. Remove the transmission housing with removing
the mounting bolts.
CAUTION
When removing the transmission housing, take
caution for the matching face of bearing holder
and differential case not to become apart.
Bearingholder
Transmission
housing
GZ3W24-020
Gear25T
Gear19T
Gear24T
Gear20T
Gear16T
Gear22T
Shuttleshaft
Transmissionhousing
Shaft
Mainshaft
Gear33T
Gear33T
Gear36T
Gear29T
Gear34T
GZ3W24-021
