6 Rear Axle and Brake
92
2. Adjustment of Differential Lock Pedal (7530-Gear drive)
1) Step on the pedal and touch the pedal to the plate "A". Tighten the bolt "A".
2) Release the pedal and touch to the plate "B". Tighten the bolt "B".
3) Make sure ON and OFF for the differential lock.
7 Assembly of Brake Pedal
1. Adjust the free play "A" for the brake pedal to be within 35 to 45mm {1.38 to 1.77in} with joint of the brake
rod on both sides. Also, the difference of pedal for each side shall be within 3.0mm {0.12in} to prevent the
one-side effect of the brake when locked together.
2. Apply chassis grease to the rotating part of brake link.
3. Make sure that the parking brake lever smoothly returns to the stopper position when releasing the lock by
stepping on the brake pedal.

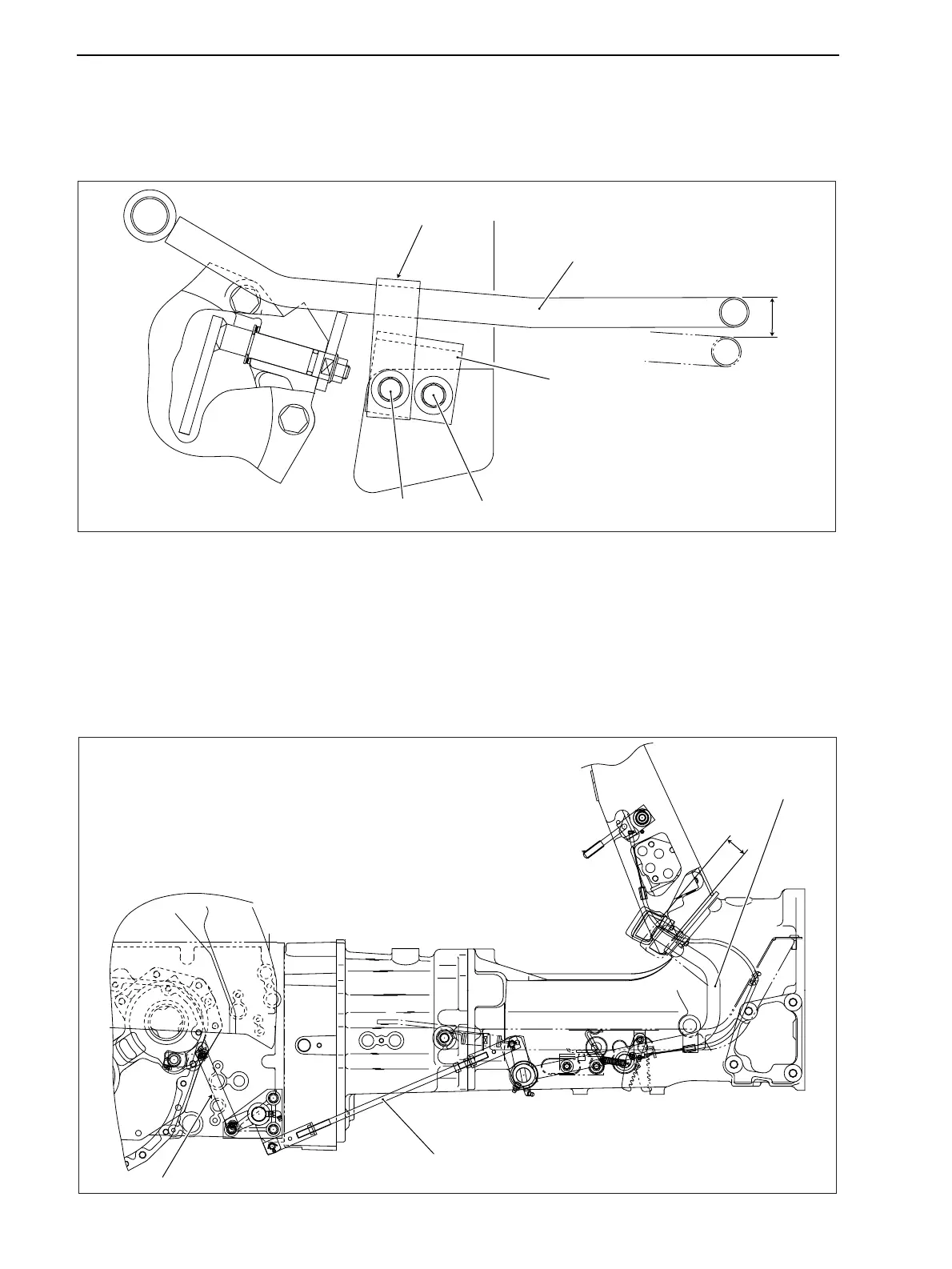

Differentiallockpedal
PlateA
BoltA
PlateB
16to23mm
{0.63to0.91in}
BoltB
GZ3W25-014
Brakepedal
Brakerod
"A"
GZ3W25-015
Brakelink
