8Steering
114

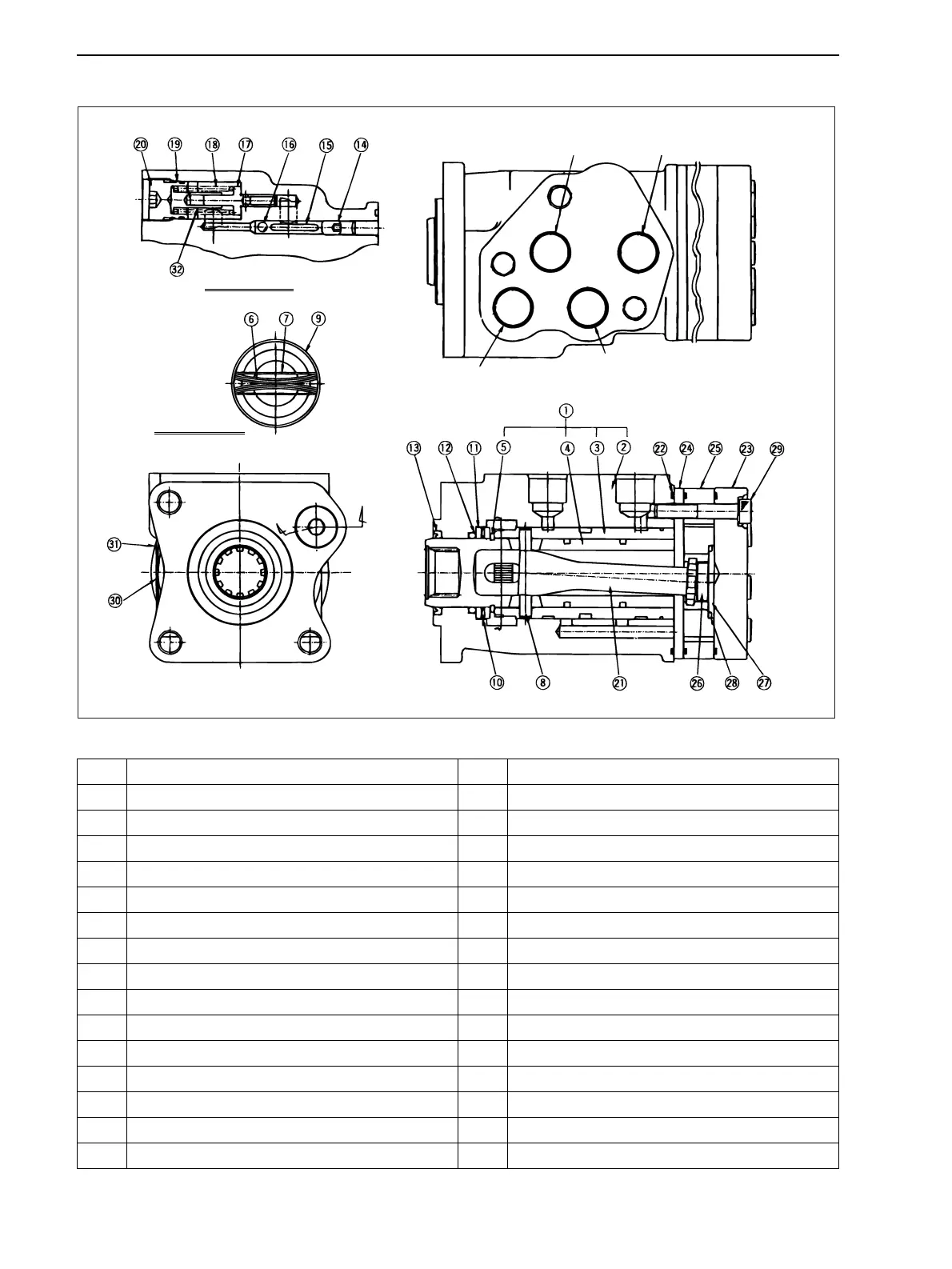

8.1.2 Steering Unit
1 Control Parts Assembly 2 Housing
3 Sleeve 4 Spool
5 Retaining Ring 6 Centering Spring
7 Flat Spring 8 Pin
9 Spring Retaining Ring 10 Thrust Needle Bearing
11 Bearing Race 12 Oil Seal
13 Dust Seal 14 Retainer Screw Assembly
15 Retainer Pin 16 Ball
17 Relief Poppet 18 Spring
19 O-ring 20 Relief Adjust Plug
21 Drive 22 O-ring
23 End Cap 24 Spacer Plate
25 Gerotor 26 Spacer
27 Plate 28 O-ring
29 Cap Screw 30 Nameplate
31 Rivet 32 Damper Collar
Leftport(L)
Rightport(R)
Tankport(T)
Pumpport(P)
A
A
C
C
A-ASection
C-CSection
GS7W3-176
