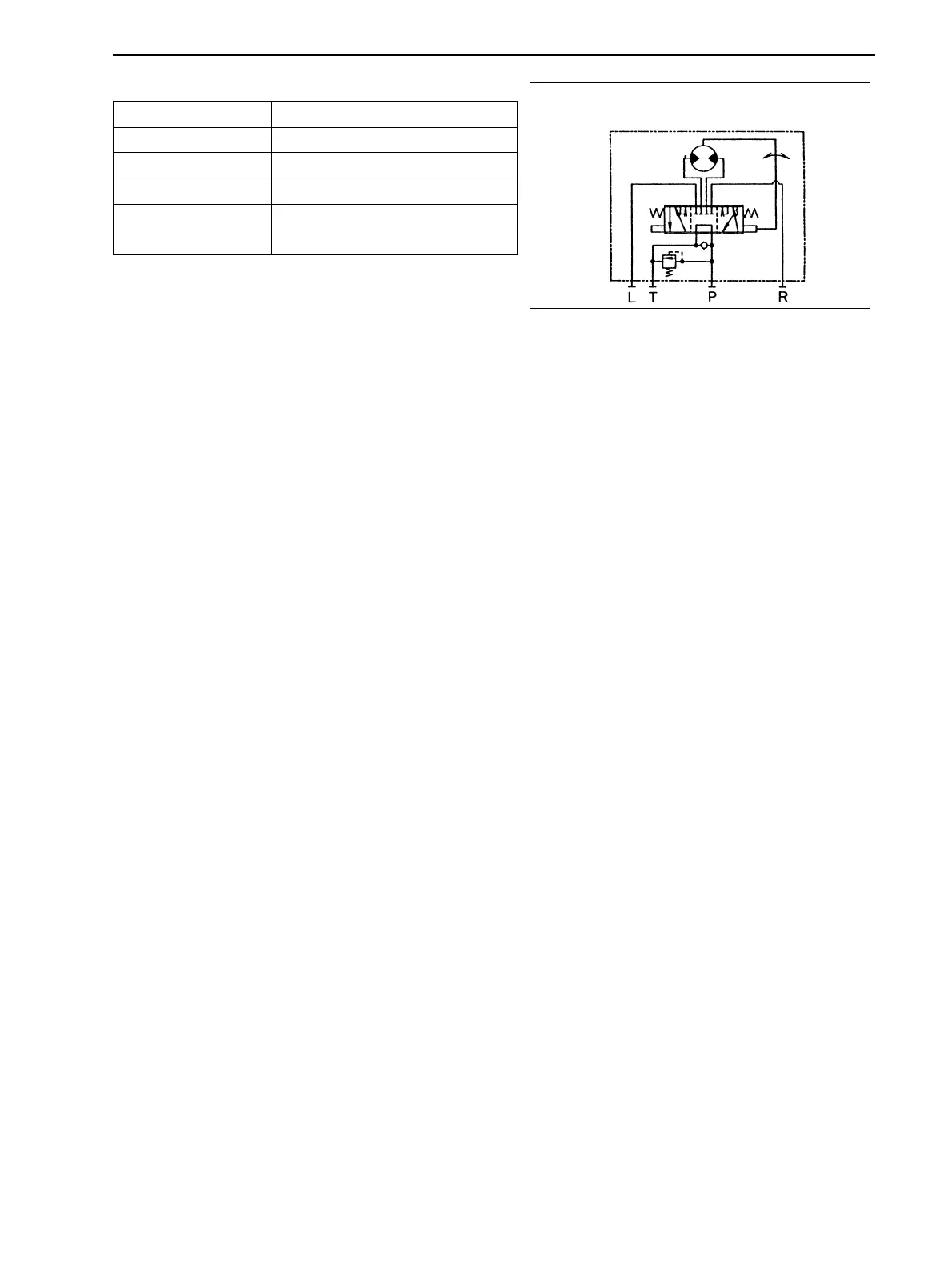

S
teering
8
11
5
8.1.3
Spe
cification
V
alve System
Open Center
Load Effect
Non-load reaction
Model
RU051B120F6A (Sumitomo)
Mix. T
emperature
95
°
(oil temperature)
Preset Pressure
10.3MPa (105kgf/cm
2
, 1493psi)
Rated Flow
8L/min {2.1gal/min}
Hydraulic
signal
GZ3W27-009
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
156
158
Table of Contents
Table of Contents
5
Default Chapter
3
Introduction
3
Table of Contents
5
1 Introduction
7
Cautionary Items for Safety
7
Meanings of Warning, Caution, and Reference
7
Spare Parts
7
Usage of this Manual
8
Cautions for Safety and Sanitation
9
Standard Maintenance
16
2 Cautionary Items at Operation
20
Cautionary Items at Handling Electrical Equipment and Electrical Wiring
21
3 Tetrahedral Sketch Drawing
24
4 Dimension
25
5 Name of each Part
27
6 Specification
30
7 Outline
33
Engine Model
33
Engine Serial Number
33
Chassis Serial Number
33
8 Periodical Inspection and Maintenance List
34
9 List of Refueling, Lubrication, and Water/Oil Supply
36
Table of Contents
39
1 Maintenance Standard
41
List of Maintenance Standard
41
List of Standard Torque
44
List of Torque
48
List of Sealing Compound
49
2 Installation and Removal of Engine Parts
51
Removal and Disassembly of Engine Assembly
51
Assembly and Installation of Engine Assembly
61
Inspection and Maintenance
63
3 Clutch
68
Transmission Power Train Schematic
68
Structure and Specifications of Clutch
70
Clutch Control
72
Removal and Disassembly of Clutch
73
Assembly and Installation of Clutch
80
Inspection and Maintenance of Clutch
82
4 Hst
84
HST Control
84
Removal and Disassembly of HST
85
Assembly and Installation of HST
89
Inspection and Adjustment of HST
90
5 Transmission
93
Transmission Assembly Outline
93
Transmission Control
95
Removal and Disassembly of Transmission
99
Removal and Disassembly of Rear PTO
109
Assembly and Installation of Rear PTO
112
Removal and Disassembly of MID PTO
114
Assembly and Installation of MID PTO
115
Assembly and Installation of Transmission
116
Inspection and Adjustment of Transmission
121
6 Rear Axle and Brake
122
Structure of Rear Axle and Brake
122
Differential Lock Pedal
123
Control for Rear Axle and Brake
124
Removal and Disassembly of Rear Axle and Brake
125
Assembly and Installation of Rear Axle and Brake
129
Inspection and Adjustment of Rear Axle and Brake
135
7 Front Axle
137
Structure and Specification of Front Axle
137
Removal and Disassembly of Front Axle
138
Assembly and Installation of Front Axle
148
Inspection and Adjustment of Front Axle
153
8 Steering
155
Structure of Steering
155
Removal and Disassembly of Steering
158
Assembly and Installation of Steering
160
Inspection and Maintenance of Steering
163
9 Troubleshooting
165
Running Operation
165
Power Steering
165
Www.mymowerparts.com
169
Hydraulic System
171
Outline
171
Specifications
171
Hydraulic Circuit Diagram
172
Hydraulic Piping Diagram
175
Hydraulic Components
182
Removal and Disassembly of Hydraulic Circuit
190
Assembly and Installation of Hydraulic Circuit
197
Inspection and Adjustment of Hydraulic System
206
Troubleshooting
207
Wiring Diagram
213
Circuit Diagram
213
Arrangement Plan - 1/2
214
Harness Drawing
217
Inspection and Adjustment
225
