1 Hydraulic System
14

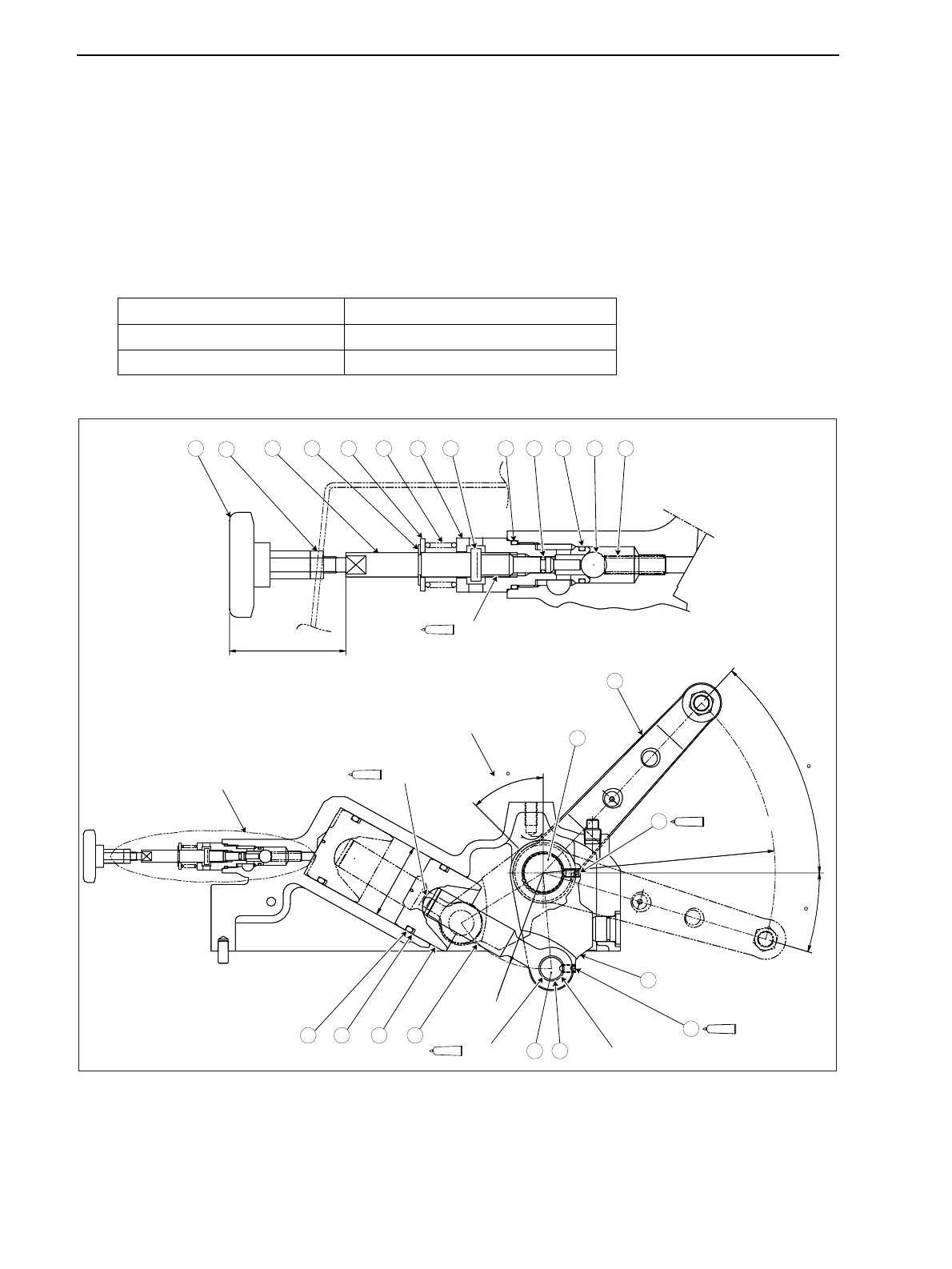

1.5.5 Position Control
• P/C system (Position Control) is equipped as a lift control for 3-point hitch.
• The cylinder is independent control type. (Only raise the hitch by hydraulic pressure and lower by weight.)
• The lock, functioning as well as flow control valve (lowering speed adjusting valve), located in forepart of lift
case shall be used for adjustment of lowering speed for the lift arm.
• Position of the lift arm is controlled by P/C lever.
1 Specifications (Hydraulic Cylinder)
Cylinder Diameter × Stroke ø 75 × 100.7mm {ø 2.95 × 3.965in}
Maximum Dynamic Lift 1035kgf {2282lbf}
Preset Maximum Pressure 15.2MPa (155kgf/cm
2
, 2205psi)
(
92mm
{
3.62in
})
Oil
MOS2
-P
MOS2
-P
Bushslit(R&L)
45
Lockscrew
Lockscrew
(
f
75mm
{
f
2.95in})
(R95mm
{R3.74in})
(R230)
(47
)
(17
)
Matchthepunchmarksof
powerarmandshaft.
Bushslit
1
16
Flowcontrolvalve
14
17
4
5
6
7
8
9
2
3
11
10
12
13
16
15
18
20
21
22
19
16
GZ3W31-010
