4‐26
Engine

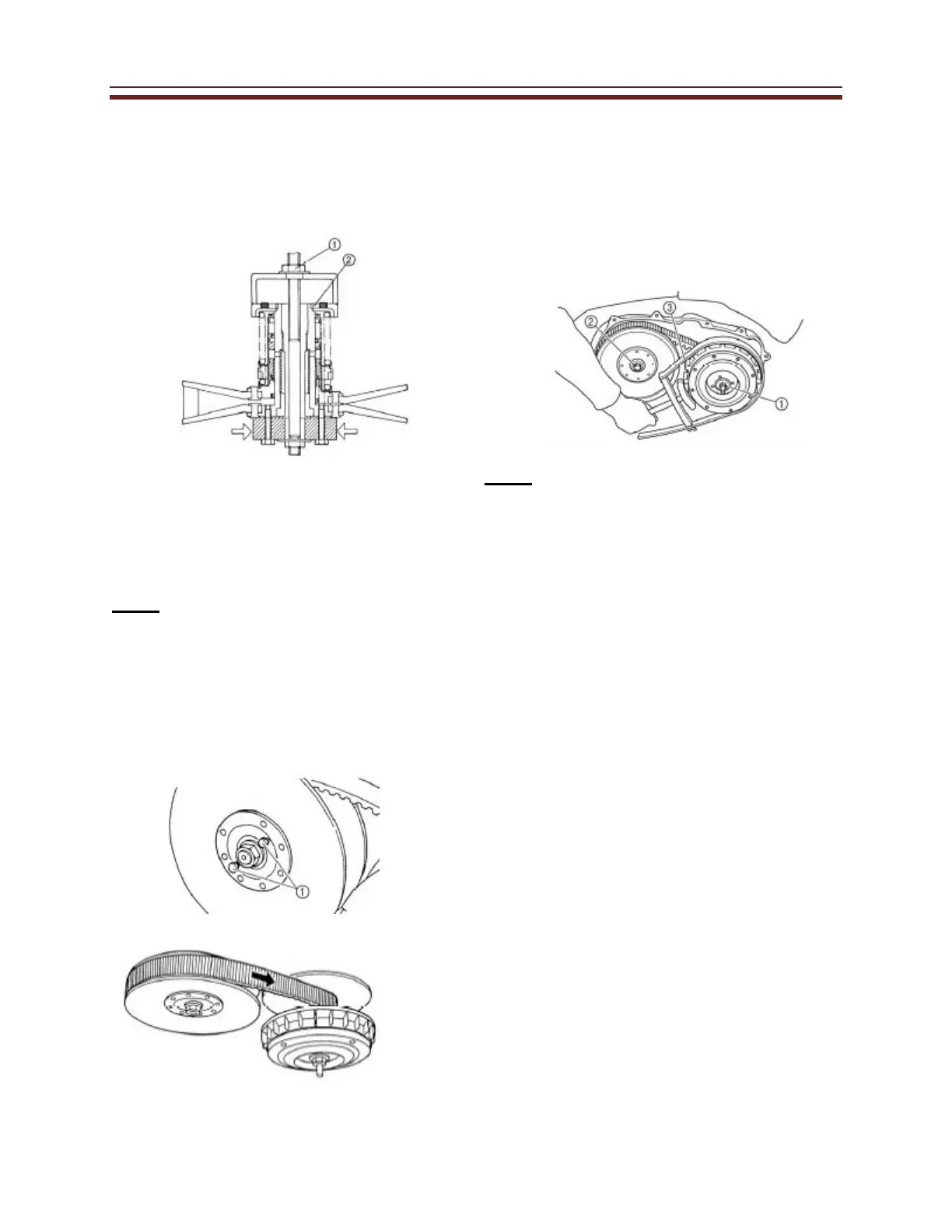

Install the nut (2) and tighten it to
the specified torque using the
locknut wrench, and sheave fixed
block.
4.
Install
Secondary sheave assembly
V-belt
Primary sheave assembly
Tighten the primary sheave nut (1)
120 Nm or 88 ft lbs
Tighten the secondary sheave
nut (2).
100 Nm or 74 ft lbs
Note:
Use the sheave holder (3) to hold the
primary sheave. Tighten in order
Primary sheave nut then Secondary
sheave nut.
Note:
Tightening the bolts(1), size found in
adjustments chapter 3, will push the
secondary sliding sheave away,
causing the gap between the secondary
fixed and sliding sheaves to widen.
Install the V-belt with the arrow facing
the direction in the illustration.
