5‐
30
Chassis

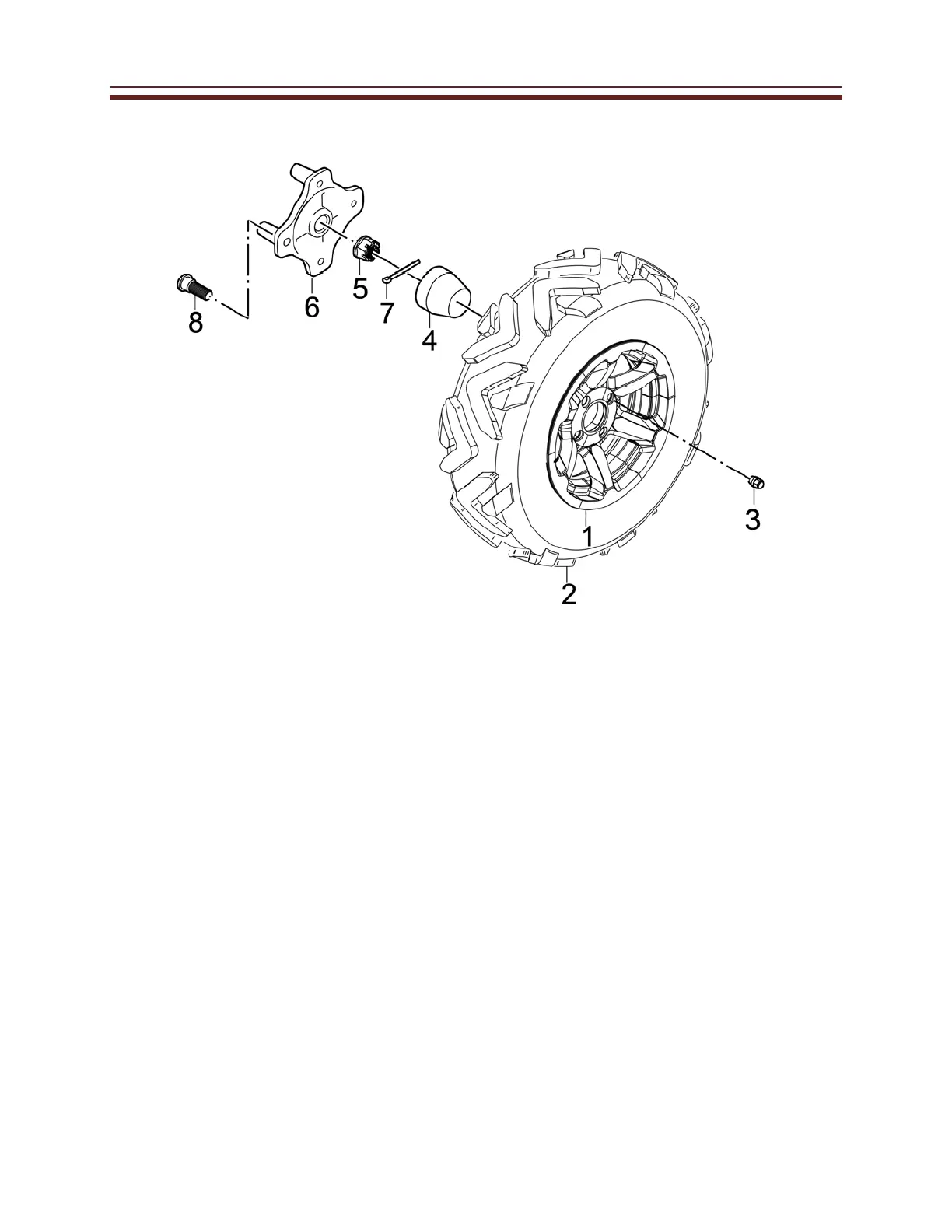

Front Wheel and Tire
No.
1
Part Name
Removing t
he front w
heel
Front rim
Qty
2
Remarks
2
Fr
ont tire
2
3
Nut
M10
8
4
W
heel decoration cover
2
5
Nut
M22×1.5
2
6
Fr
ont hub
2
7
c
otter pin 3.2×50
2
8
Bolt M10×30
4
173
