Chassis

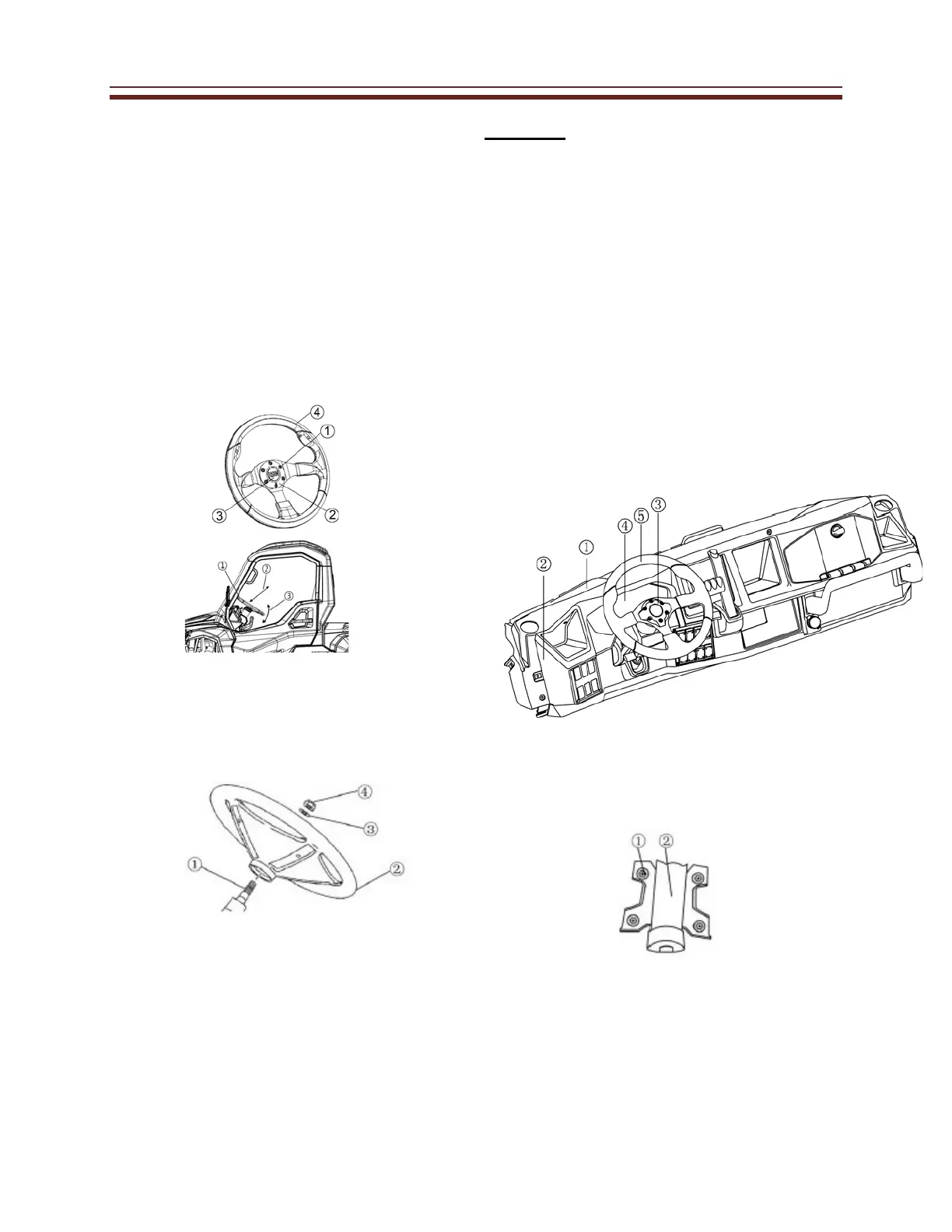

Disassembly of the steering wheel
assembly
1.
Remove
•
screw M5×16 ①
•
Decoration cover for steering
wheel ②
•
Horn assembly ③
a.
Remove the screw ①
b.
Remove the decoration cover for steering
wheel ② and horn assembly ③
c.
Use the special tools pull out the steering
wheel ④.
2.
Inspect
•
Steering shaft(1)
•
Steering wheel(2)
•
Washer(3)
•
Flange nut(4)
Inspect the splines on the steering shaft
and steering wheel. Look for damage or
wear.
Inspect the steering wheel for damage or
wear to the wheel covering.
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Warning:
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Do not let vehicle leave without proper
repairs being performed.
Disassembly of the steering column
assembly
1.
Remove
•
Engine covers ①
•
Connection covers part ②
•
Steering wheel cover ③
•
Display board ④
•
Steering wheel ⑤
•
4, 8mm X 16mm bolts (1) that
attach steering column (2) to
the frame.
2.
Inspect
•
Steering column tube(1)
•
Bearing(2)
•
Bearing Fitment of the steering
shaft(3)
•
Splines(4)
