5‐26

Chassis

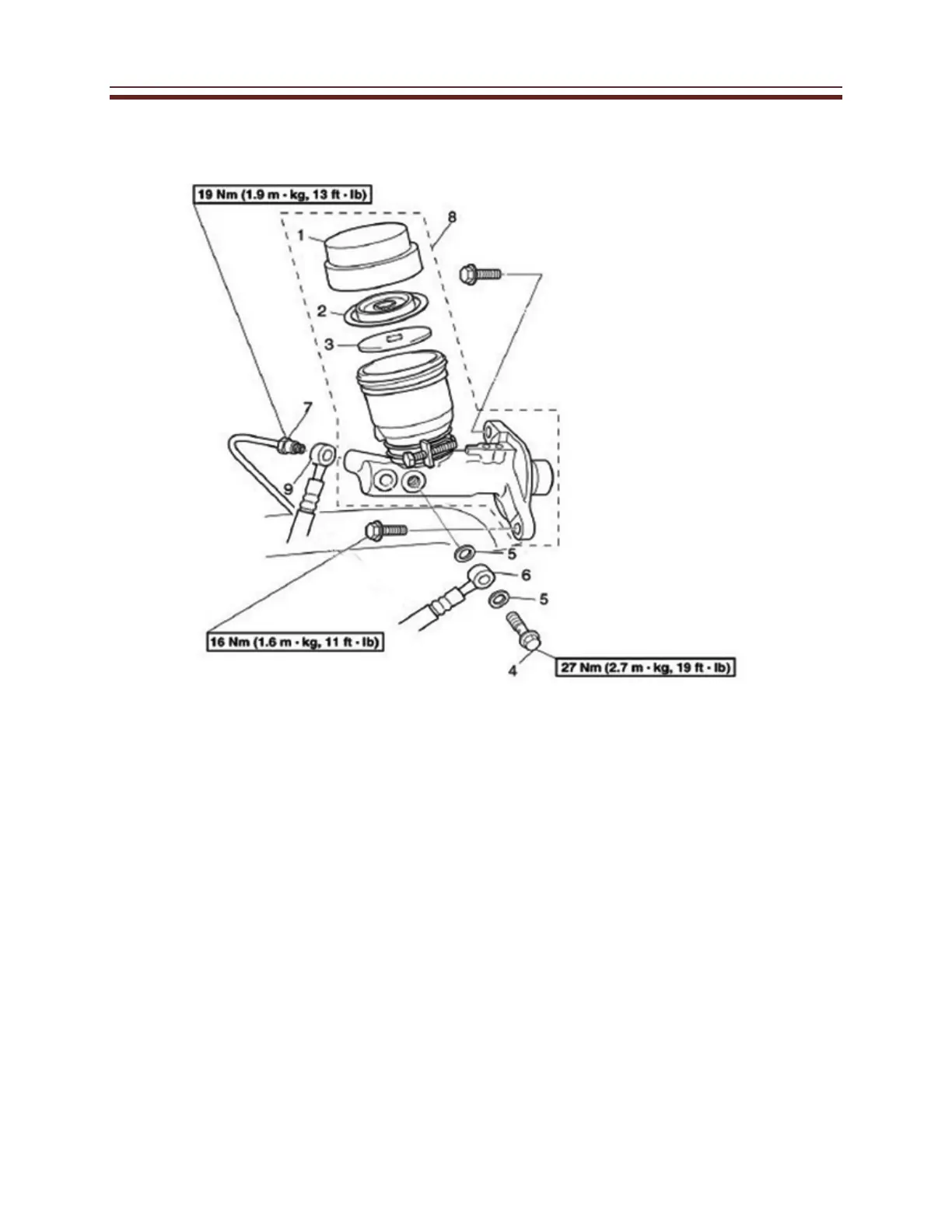

Brake Master Cylinder

No. Part Name

Removing the Brake Master Cylinder

Qty

Remarks Remove

the parts in the order listed.

Brake Fluid

Drain

Brake Fluid Reservoir cap

Brake Fluid Reservoir diaphragm

Brake Fluid Reservoir float

Union bolt

Copper washer

Brake hose

Disconnect

Brake Line

Disconnect

Brake Master cylinder

Brake Hose

Disconnect

For installation, reverse the order

listed.
