Cub Cadet Challenger 550 - Page 124

4‐28
Engine
No.
Part Name
Qty
Remarks

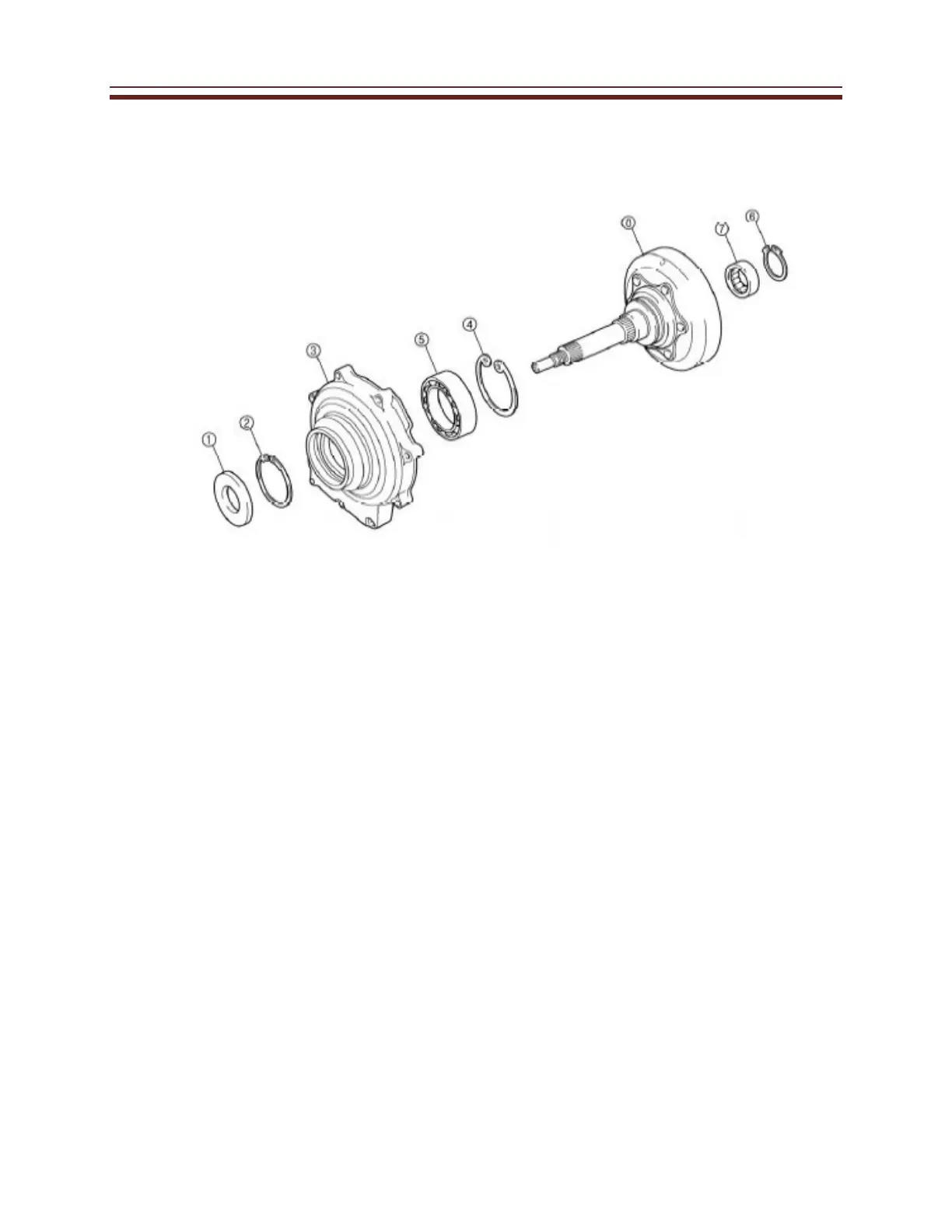

Disassembling the clutch housing
Remove the parts in the order
listed
1
Oil seal
1
2
Circlip
1
3
Bearing Housing
1
4
Circlip
1
5
Bearing
1
6
Circlip
1
7
Bearing
1
For installation, reverse the order
8
Clutch Housing
1
listed
