Electrical

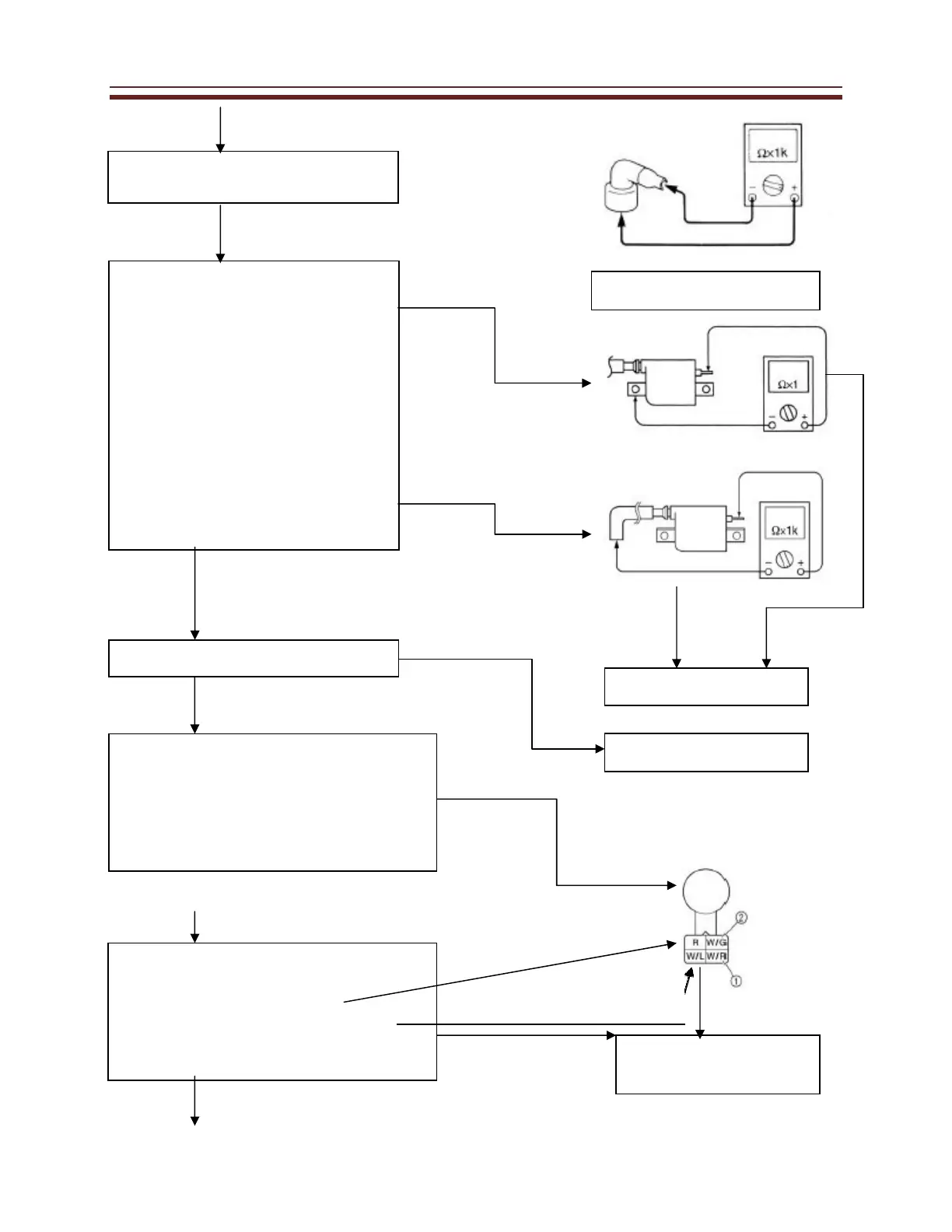

Test the Main switch for continuity.
Out of Specification
Both Tests meet specification
Correct Incorrect
Test the A.C Magneto coupling resistance.
Connect multi meter as shown.
Positive lead to White/Red terminal (1)
Negative lead to White/Green terminal (2)
Pickup coil resistance
220-280 Ohms
Test the A.C Magneto coupling resistance.
Connect multi meter as shown.
Positive lead to Red terminal (3)
Negative lead to White/Blue terminal (4)
Pickup coil resistance secondary
0.063 – 0.077 Ohms
Meets specification
Incorrect
Replace the pickup
coil/stator assembly
Replace the Spark Plug Cap
Check the Ignition coil resistance.
Connect multimeter as shown.
Positive lead to Orange lead terminal.
Negative lead to Ignition coil base.
Primary coil resistance
0.18 – 0.28 Ohms
Test Secondary coil resistance.
Connect multi meter as shown.
Positive lead to Orange lead terminal.
Negative lead to Spark Plug Lead.
Secondary coil resistance
6.32 – 9.48 K Ohms
Check the Spark Plug Cap resistance.
10K ohms
Replace the Main switch
Replace the ignition coil
To Next Page
