Secure (1) lower main frame leg P#(B0822) to the lower
main frame bracket using (2) 3/8”-16 x 1” carriage bolts
P#(K1182) and (2) 3/8”-16 nylon flange locknuts
P#(K2038). Secure (1) lower main frame leg P#(B0822)
to the PTO mount plate assembly using (2) 3/8”-16 x 1”
carriage bolts P#(K1182) and (2) 3/8”-16 nylon flange
locknuts P#(K2038). Refer to Figure 2-9.
2-9 Lower Main Frame Leg Installation
Lift the main frame assembly P#(A1192) into position and
secure to the lower main frame legs using (4) 3/8”-16 x 1”
carriage bolts P#(K1182) and (4) 3/8”-16 nylon flange
locknuts P#(K2038). Refer to Figure 2-9.
2-10 Main Frame Assembly Installation

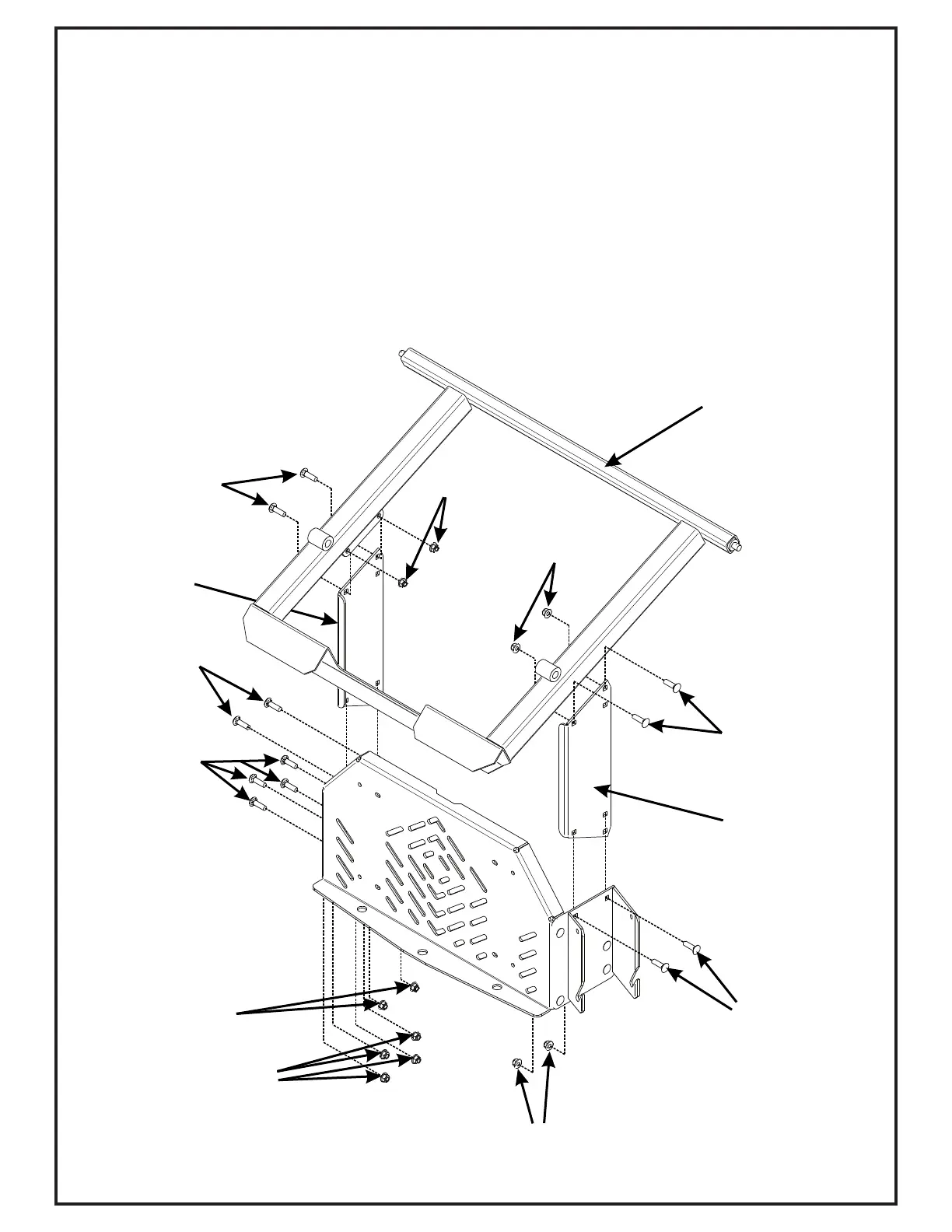

Figure 2-9
Main Frame
Assembly
Lower Main
Frame Leg
(2) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16 x 1”
Carriage Bolts
Lower Main
Frame Leg
(4) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16
Locknuts
(2) 3/8”-16
Locknuts
(4) 3/8”-16
Locknuts
(2) 3/8”-16
Locknuts
(2) 3/8”-16
Locknuts
