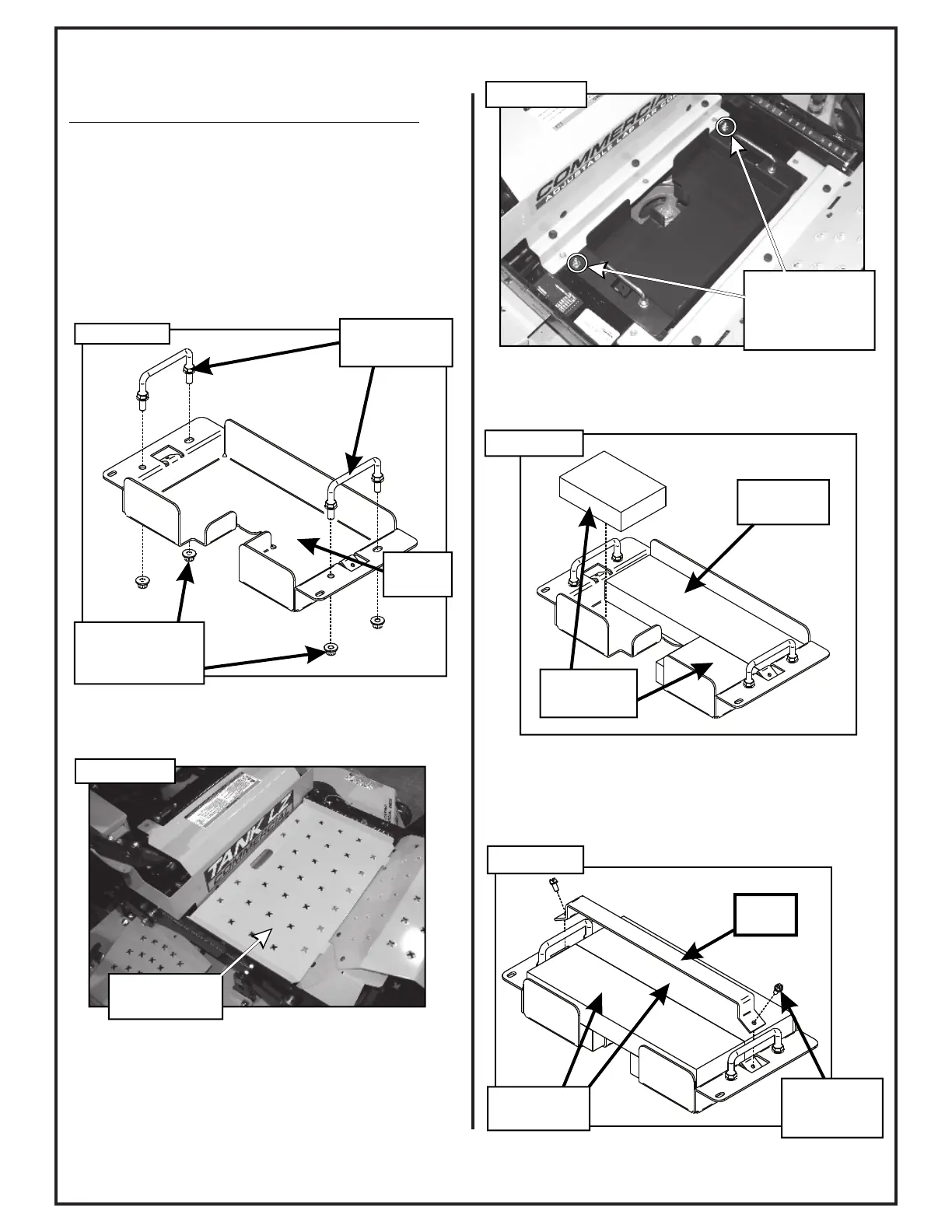

Installation Instructions For All Tank LZ Models:
2-21 Additional Weight Kit Installation
Installing the additional weight kit 59A30037150 (A1149)
is mandatory for safe operation of the collection system.
SZ models only require the included weight kit (A1213).
Completely thread (2) 3/8”-16 flange nuts P#(K1215)
onto (1) 3/8”-16 U-bolt P#(K0407). Repeat process again
to create two sets. Secure each U-Bolt, w/ attached
flange nuts, to the weight bracket P#(B0703) using (2)
3/8”-16 nylon flange locknuts P#(K2038) as shown in
Figure 2-21a.
Remove the mower’s pulley access cover shown in
Figure 2-21b.
Insert the weight bracket assembly into the recess as
shown in Figure 2-21c. Align the weight bracket’s
mounting holes to the mower’s frame and secure using
(2) 1/4”-20 x 3/4” HHCS P#(K1222) and (2) 1/4”-20
nylon flange locknuts P#(K2014). Insert the bolts from
the bottom of the weight bracket so that the nuts fasten
to the top of the bracket as shown in to Figure 2-21c.
(2) U-Bolts
w/ Flange Nuts
Weight
Bracket
(2) 3/8”-16 Nylon
Flange Locknuts
per U-Bolt
Remove Pulley
Access Cover
Figure 2-21b
Figure 2-21a
One at a time, add (1) large weight bar P#(B0704) to the
weight bracket, then (2) small weight bars P#(B0741).
Refer to Figure 2-21d.
Add the remaining (2) large weight bars P#(B0704) to
the weight bracket. Secure the weights to the weight
bracket with (1) weight strap P#(B0719) and (2) 1/4”-20
self-tapping screws P#(K0353). Refer to Figure 2-21e.
Replace mower’s pulley access cover when completed.
Figure 2-21c
(2) 1/4”-20 x 1”
HHCS
(2) 1/4”-20 Nylon
Flange Lock Nuts
Figure 2-21d
(2) Small
Weight Bars
(1) Large
Weight Bar
Weight
Strap
1/4”-20
Self-Tapping
Screw
Figure 2-21e
(2) Large
Weight Bars
