13

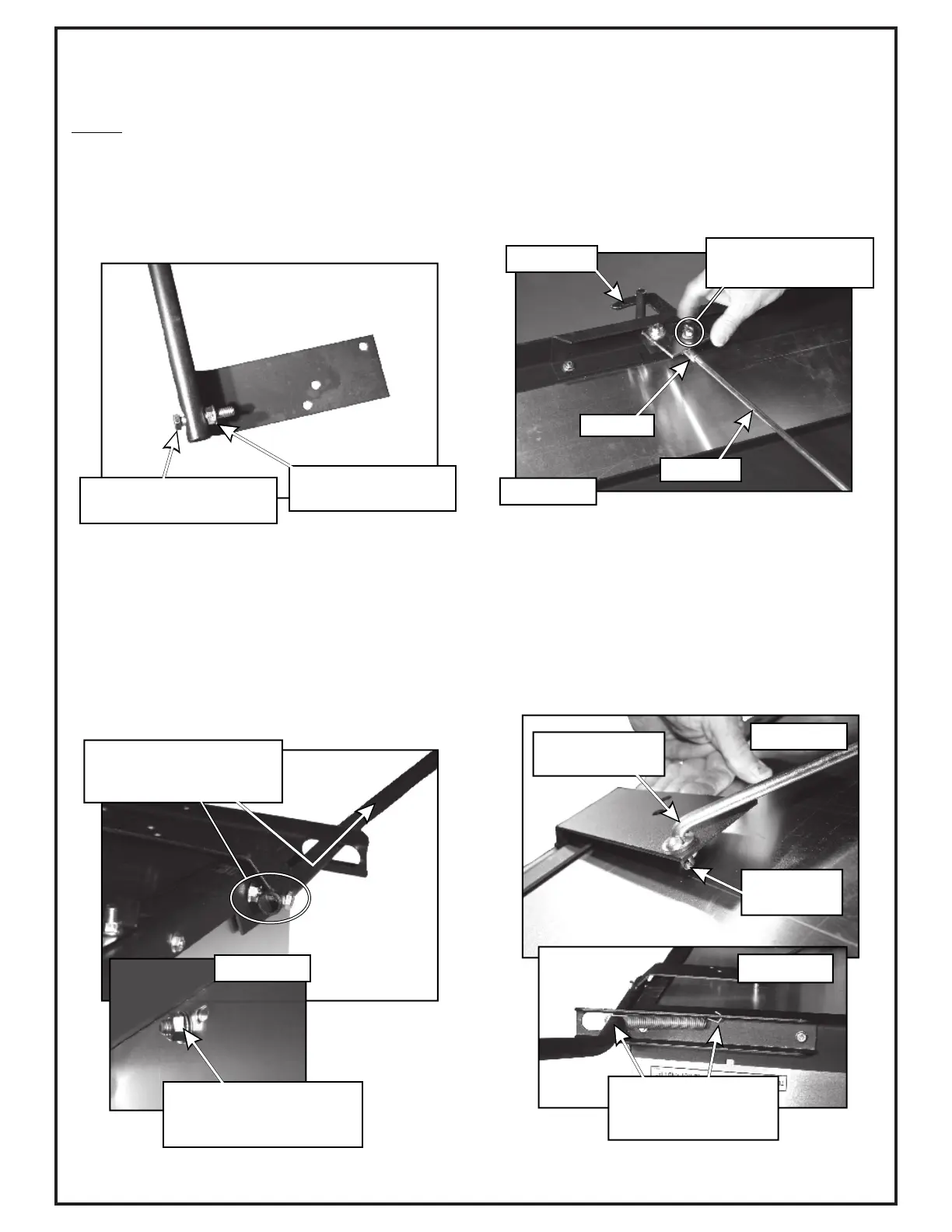

2-11 Lift Handle Installation
Slide the lift handle through the slot on the handle mount
bracket. Insert the lift handle into the box frame as
shown in Figure 2-11b, and secure using (1) 3/8”-16
flange nut P#(K1215) on the inside of the container as
shown in Figure 2-11c. Now test the movement of the
handle. It should have full-range of movement in the slot.
If the handle does not have full-range of movement,
adjust the 3/8”-16 flange nut from step 2-11a. Once
achieved, tighten the fasteners.
NOTE: Before continuing the lift handle installation,
have someone assist you in turning the grass container
upside down. Insert (1) 3/8”-16 x 2” HHCS P#(K1208)
into the lift handle P#(A0273), and secure with (1) 3/8”-
16 flange nut P#(K1215). Thread the flange nut onto the
bolt upside down, as shown in Figure 2-11a. Do not
tighten the nut fully at this time.
Fasten the ball joint P#(K1442) to the end of the latch
rod P#(A0620). Tighten the ball joint to approximately
half way down the threads on the latch rod. Attach the
ball joint to the latch hook as shown in Figure 2-11d,
using (1) 5/16”-24 hex nut P#(K1444) and (1) 5/16” lock
washer P#(K0043).
Attach the other end of the latch rod to the lift handle, as
shown in Figure 2-11e. Attach one end of the spring
P#(J0176) to the lift handle and the other end of the
spring to the handle mount bracket as shown in Figure
2-11f. Adjust the ball joint up or down on the latch rod
threads until the latch hook closes completely. After
adjusting the latch hook, secure the latch rod to the lift
handle using (1) cotter pin P#(K0094).
Insert (1) 3/8”-16 x 2”
HHCS Into The Lift Handle
Secure With
(1) 3/8”-16 Flange Nut
Figure 2-11a
Slide Lift Handle Through
Handle Mount Bracket And
Fasten To Box Frame
Use (1) 3/8”-16 Flange Nut
On The Inside Of The
Grass Container
Figure 2-11b
Figure 2-11c
Ball Joint
Latch Rod
Latch Hook
(1) 5/16”-24 Hex Nut
(1) 5/16” Lock Washer
Figure 2-11d
Attach Latch Rod
To Lift handle
Secure With
(1) Cotter Pin
Attach Spring To
Lift Handle And To
Handle Mount Bracket
Figure 2-11e
Figure 2-11f
To Next Page
