We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
1-1 Introduction
NOTE: all references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.

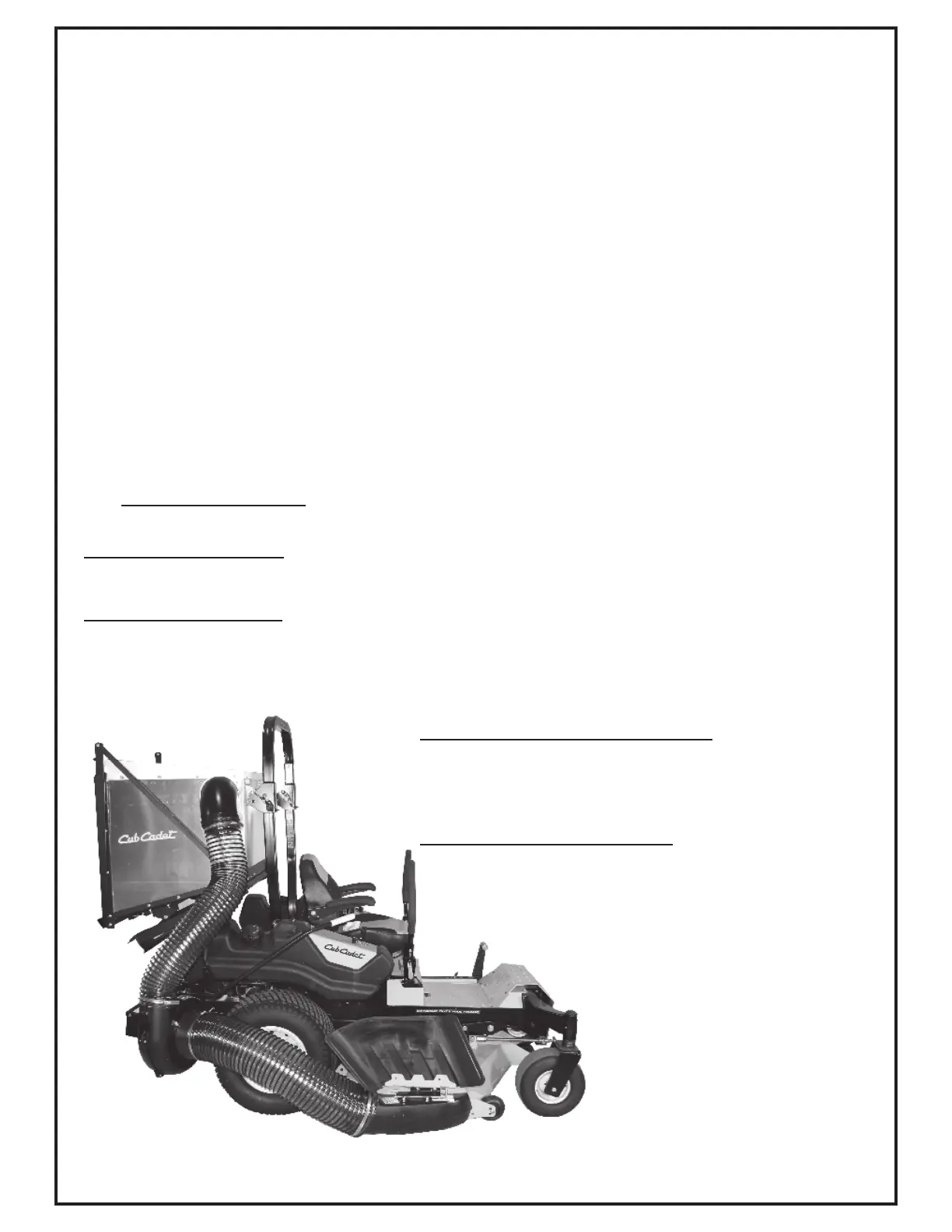

The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves and in pre-season and post-season
clean-up. The blower, mounted on the right side of the
unit, uses a belt and gearbox system from the engine
PTO shaft. Drive train protection comes through belt
slippage. The blower draws grass clippings from the
discharge area of the cutter deck back to the 12 cubic
foot aluminum box at the rear portion of the mower
frame. The operator can engage the blower with a push
of the over-center linkage on the right side of the unit.
Once the container is full, the operator can easily push
and raise the dump handle, opening the rear door on the
container and pivoting the box to the ground. Once
empty, the operator can easily lower and pull the dump
handle, pivoting the box back into position and closing
the door.
1-2 Description
Section I - INTRODUCTION AND DESCRIPTION
—Requires installation of included weight kit (A1213) for safe operation!
Contact your Cub Cadet dealer to order weight kit 59A30037150 (A1149).
—Requires installation of additional weight kit 59A30037150 (A1149) for
safe operation! SZ models only require the included weight kit (A1213).
All Tank LZ Models:
All Tank SZ Models:
Important! - Before Installing Collection System, Read Below:
—Requires installation of included weight kit
for weight kit installation instructions.
(A1213) along with the additional weight
kit 59A30037150 (A1149).
—Refer to Section 2-21 & 2-22 in this manual
Tank LZ Models w/ 48” Deck:
Installation Instructions:
