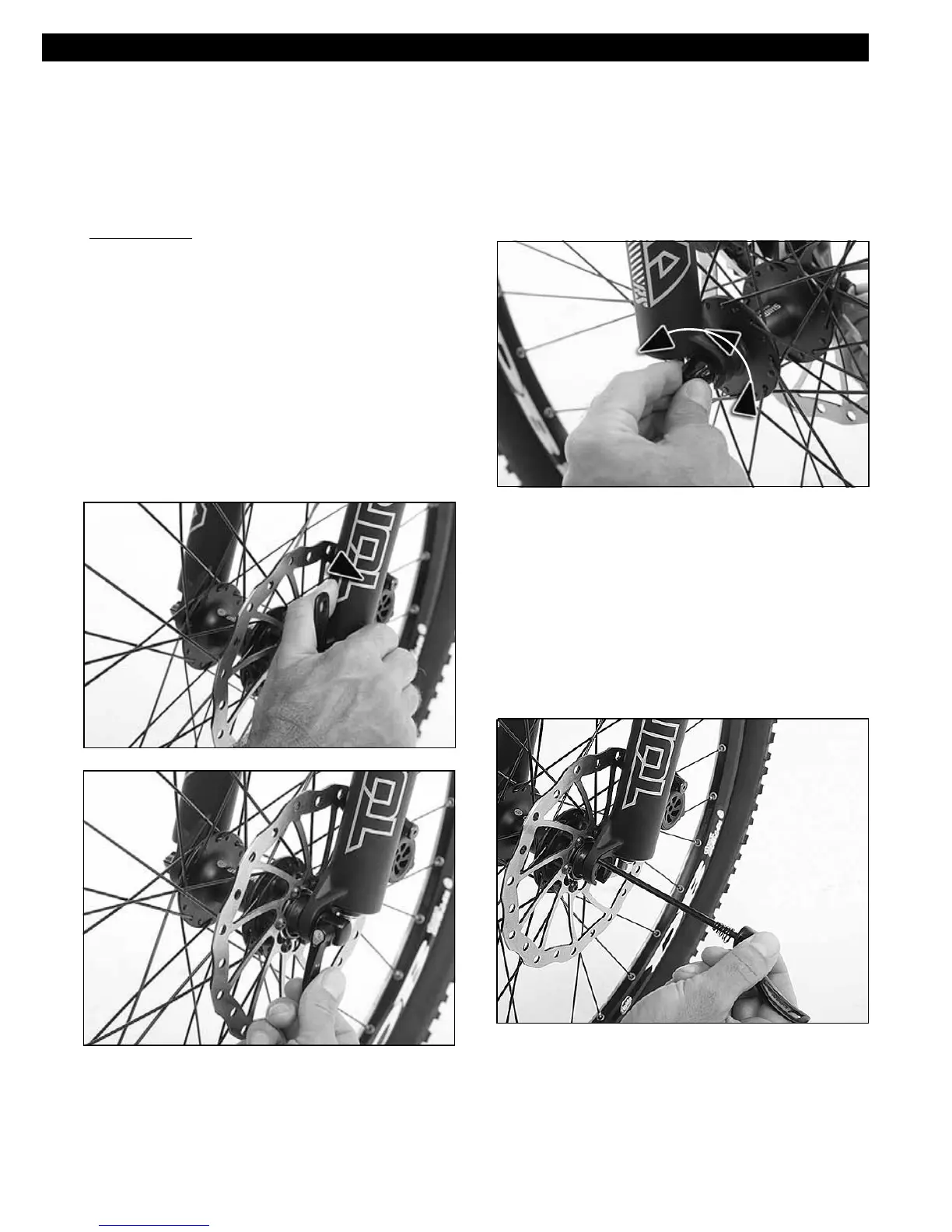

2. Turn the nut counter-clockwise until the
wheel can be removed from the frame or
front forks without any great eort.
Should the nut come right o the screw
please ensure that the little springs do
not get lost.
3. On saddle stem quick release levers: To
loosen instead of the nut turn the bolt
with the Allen key head itself counter-
clockwise.
Tightening: Reverse the procedure
1. If the quick release lever was completely
removed then push it from the left (in the
direction of travel) through the hub.
2. Place the springs and the nuts on the
bolt. Turn the right end now protruding
from the hub and the nut clockwise.
•
The ends of the springs with the smaller
diameter always face the hub.
•
On saddle stem locking quick-releases
instead of the nut there is a bolt head with
an Allen key hexagon insert head.
Special types:
Some running wheels are xed with oating ax-
les or a combination of oating axle and quick-
release lever or are equipped with other axle
clamping systems. Please refer to the accompa-
nying instructions on the handling of these parts
provided by the suspension fork manufacturer
and/or consult your specialist dealer.
To open the quick release a
1. Push the eccentric lever away from the
hub. It an now be rotated 180° around
its axis.
