MTB/ ROAD BIKE/ TREKKING

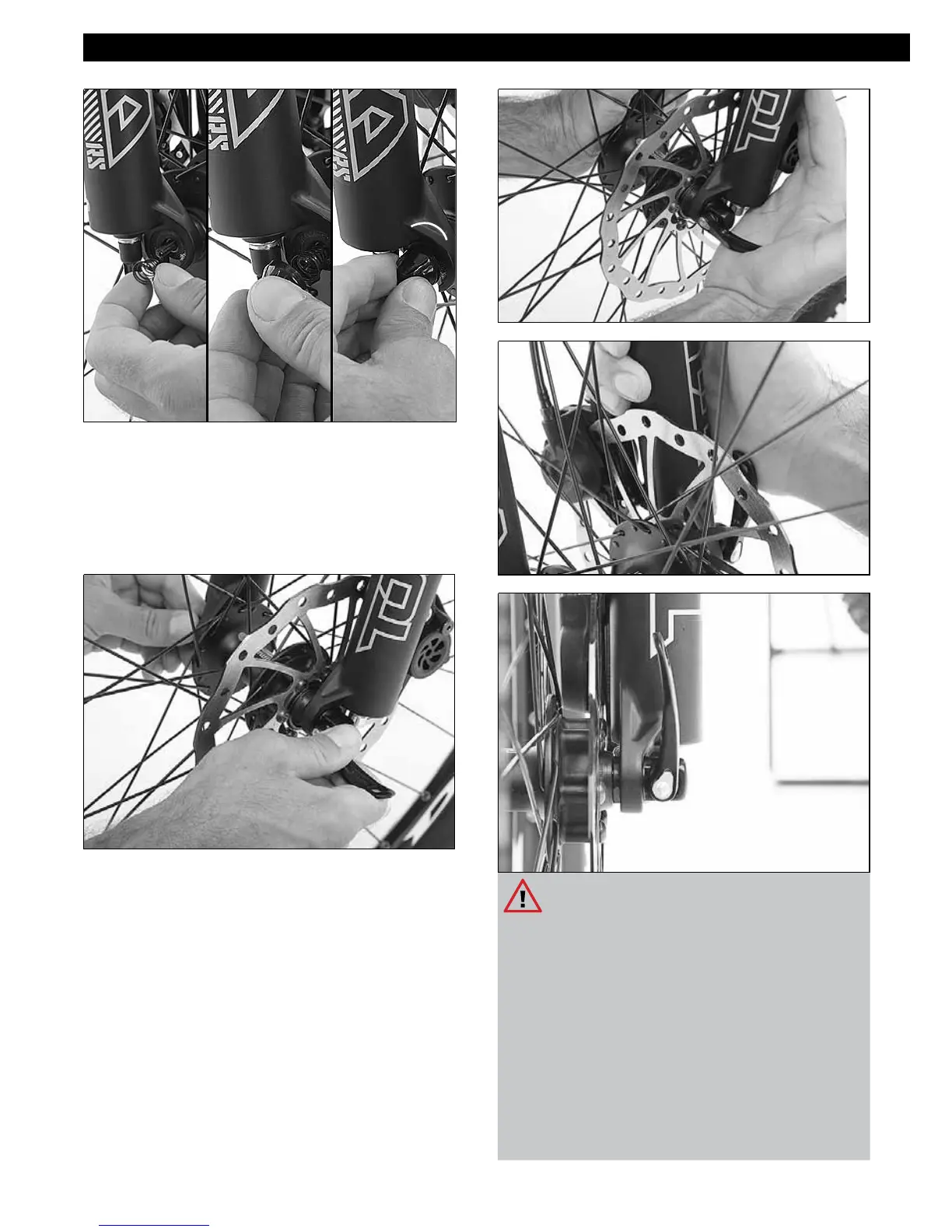

3. On saddle stem quick release levers:
Instead of the nut turn the bolt with the
Allen key head itself clockwise.
4. Tilt the eccentric lever so that it appro-
ximately forms the extension of the hub
axis Hold the lever in this position.
5. Now turn the nut or the Allen key bolt
head until the eccentric lever, when
turned around its bearing more than 90°
to meet slight resistance (it now forms an
approximately straight line extension of
the hub axis.
6. Now press the level through a further 90°
until it reaches its end stop.
Risk of Personal Injury and Material
Damage!
Incorrect operation of the brakes can
lead to hazardous riding situations, fal-
ling, accidents and material damage.
If the lever is pressed into its stop po-
sition the wheel is not secured tightly
enough and can become displaced du-
ring riding or loosen.
There is a danger of falling.
