MARK 89 AND 812 WATER CONDITIONER
Brine Valve "A" Dimension
The brine valve contains a float-actuated safety shut-off device to prevent overflow of the brine tank in the un
likely case of an electrical or mechanical failure during the brine tank refill cycle.
It is recommended that the brine valve float be used as intended, that is, as a secondary, safety shutoff. Remem-
ber, the timer mechanism provides the primary refill shut-off. To use the float as a safety shut-off, refer to Table 6
for the salt dosage and brine tank size being used. The "A" dimension is the distance between the filter screen and
the bottom of the float (Fig. 12) when the float stem is in its fully raised position; adjust the float and rubber
grommets accordingly.
RAPID RINSE
The rapid rinse time, which is established when setting the salt dosage, is usually adequate for most installations.
It may be increased, if necessary, but it MUST NEVER be reduced from the salt dosage which is required for
adequate regeneration.
To adjust rapid rinse refer to the section on Salt Dosage. Each one-pound increase in salt dosage will increase
rapid rinse time, the brine valve float will become the primary brine refill shutoff. In this case refer to the correct
Table 7 column for the salt dosage and brine tank size being used, and adjust the "A" dimension accordingly.
SALT 0-10 11-20 21-30 31-40 41-50 51-60 61-70 71-80 81-90 91-100
DOSAGE (0-170) (171-340) (341-515) (516-685) (686-855) (856-1025) (1026-1200) (1201-1370) (1371-1540) (1541-1700)
2500 1100 600 400 300
6 NA NA NA NA NA
(270) (285) (323) (293) (254)
2700 1200 700 500 300 300
7 NA NA NA NA
(300) (300) (300) (250) (300) (200)
2900 1300 800 500 300 300
8 NA NA NA NA
(300) (300) (266) (300) (340) (233)
3000 1400 800 500 400 300 300
9 NA NA NA
(350) (275) (316) (338) (270) (258) (178)
3100 1500 900 600 400 300 300
10 NA NA NA
(380) (240) (260) (270) (296) (280) (197)
3100 1500 900 600 400 300 300
11 NA NA NA
(490) (295) (297) (298) (318) (298) (212)
3100 1600 900 600 400 400 300 300
12 NA NA
(580) (240) (327) (320) (336) (213) (225) (160)
3100 1600 1000 600 500 400 300 300
13 NA NA
(650) (275) (250) (358) (250) (225) (236) (169)
3100 1600 1000 700 500 400 300 300
14 NA NA
(710) (305) (270) (353) (262) (235) (244) (176)
3100 1600 1000 700 500 400 300 300 300
15 NA
(740) (320) (280) (260) (268) (240) (248) (180) (126)
3100 1700 1000 700 500 400 300 300 300 200
16
(780) (240) (293) (270) (276) (247) (254) (185) (131) (188)
3100 1700 1000 700 500 400 300 300 300 200
17
(790) (245) (296) (273) (278) (248) (256) (186) (132) (189)
3100 1700 1000 700 500 400 300 300 300 200
18
(780) (240) (296) (270) (276) (247) (254) (185) (131) (188)

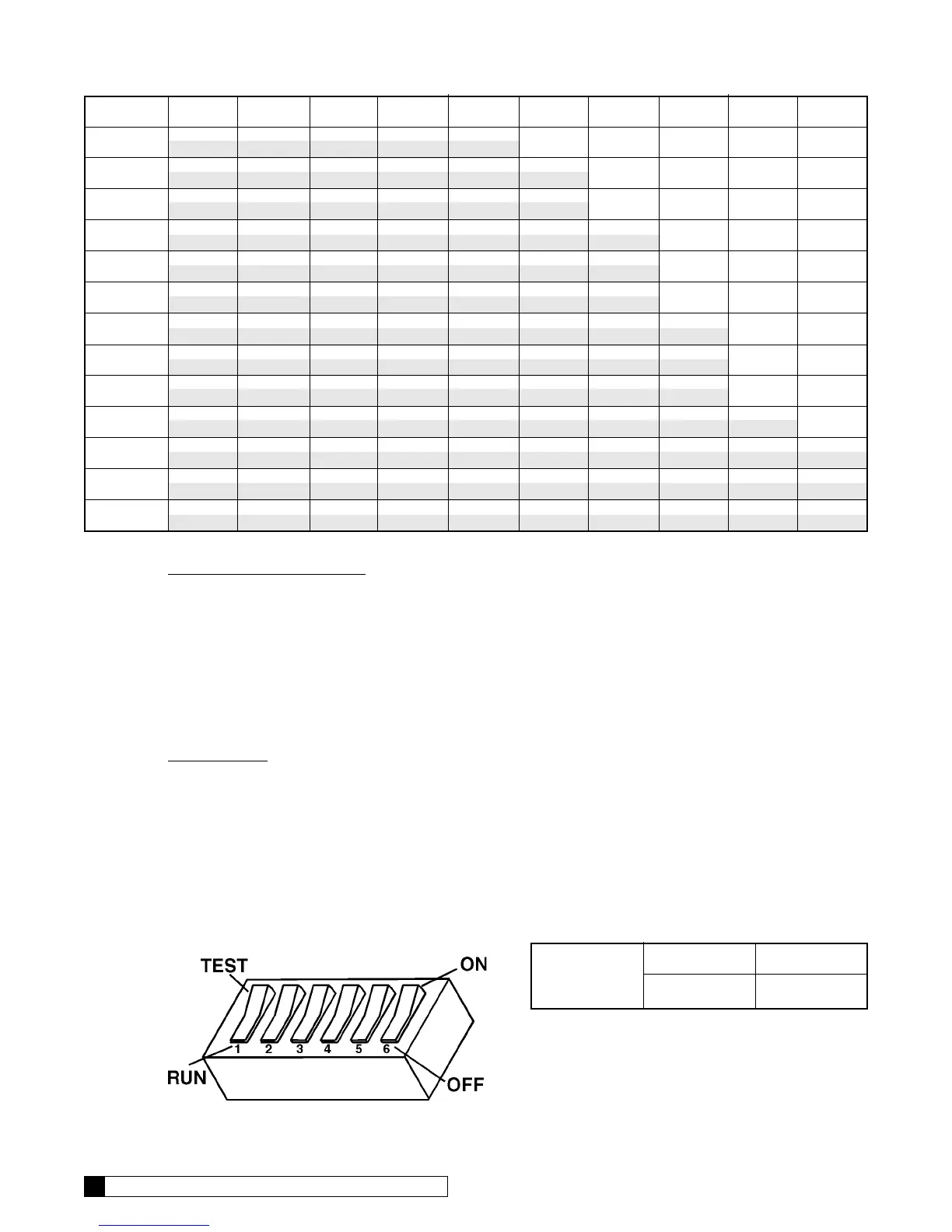

TABLE 4B — MARK 812 GALLON CAPACITIES TO SIGNAL (RESERVE)
TOTAL WATER HARDNESS IN GRAINS PER GALLON (mg/l)
FIG. 10
RUN TEST
SW-1 OFF ON
FIG. 11
