CAUTION: When making sweat connections, remove all plastic and rubber
components which contact brass or copper. Damage to these components may
result otherwise.

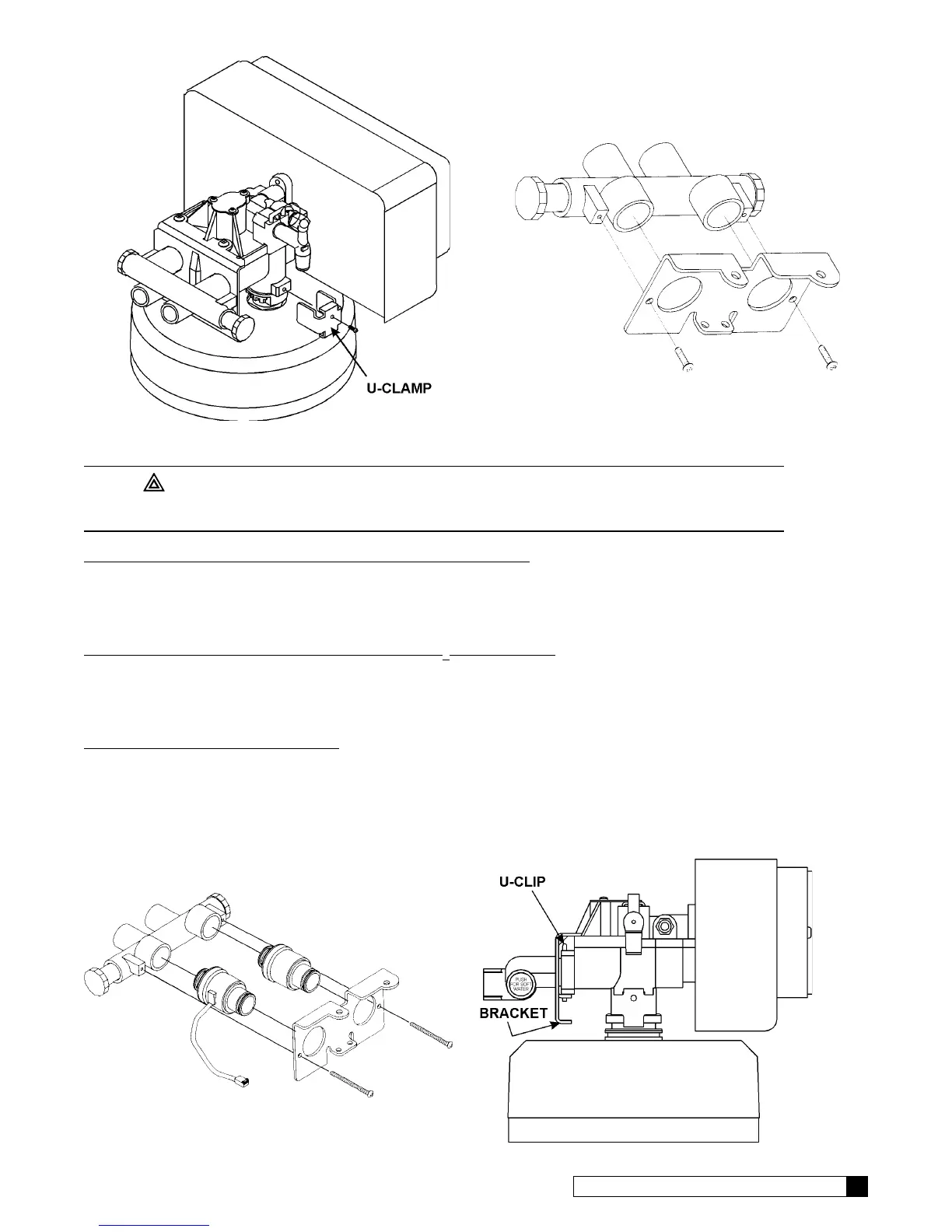

BYPASS VALVE INSTALLATION - TIME CLOCK UNITS ONLY
The bypass valve connects directly to the backplate of the valve with a pair of screws (Fig. 3). To facilitate this
connection, remove the plate by pulling up on the u-clip on the back of the valve. Lubricate all o-rings with silicon
lubricant.
BYPASS VALVE INSTALLATION - SOFT-MINDER
®
METER ONLY
The Soft-Minder meter is placed between the bypass valve and the control (Fig. 4). Make sure the meter is on the
outlet port of the control. A pair of elongated bolts are packaged with the meter to hold the bypass valve to the
back plate of the control. Lubricate all o-rings with silicon lubricant.
SWEAT ADAPTOR INSTALLATION
The sweat adaptors use a snap ring to hold them to the backplate of the control valve. The back plate will need to
be removed from the valve for this connection. A pair of snap ring pliers, PN 00-5916-09, are needed for this
connection.
INSTALLATION 7
FIG. 2
FIG. 3
FIG. 5
FIG. 4
