The service mode allows one to view the instantaneous ow rate, the gallons remaining before the softener
signals for regeneration, the number of regenerations in the past 14 days, the total number of regenerations the
control has cycled through and the number of days since the last regeneration.
To enter the service check mode, follow these steps:

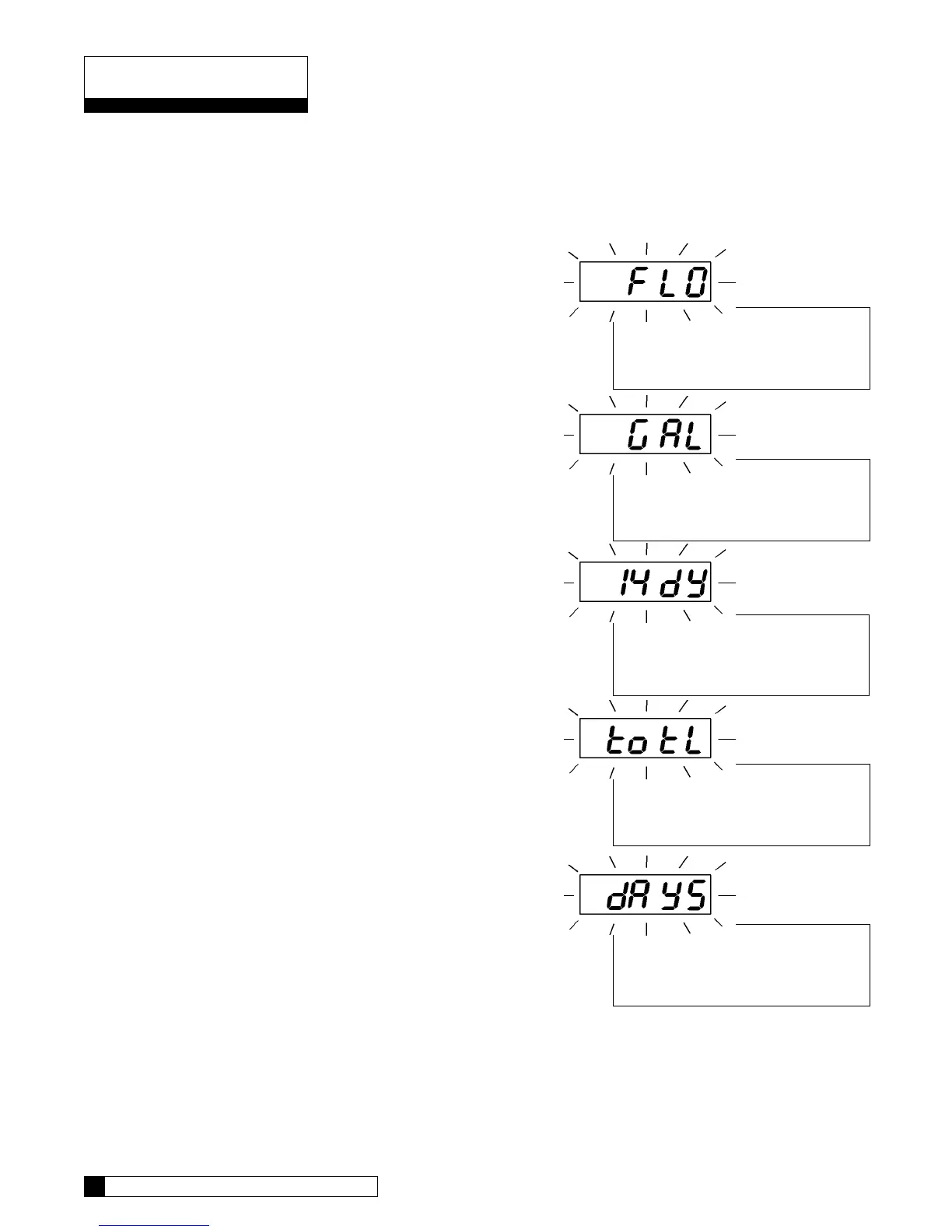

ServiceCheck
1. From the Blank display:
2. Press “-” key. The display will blink “FLO” for 3 seconds
and then display the gallons per minute ow rate. This
screen will update the current meter reading every 6 sec-
onds.
Note: This display is only active if the owmeter is con-
nected to the valve.
3. Press “-” key. The display will blink “GAL” for 3
seconds and then displays the gallons remaining before
the unit signals for regeneration (multiply the displayed
number by 10).
Note: This display is only active if the owmeter is con-
nected to the valve.
4. Press the “-” key. The display will blink “14dY” for 3
seconds and then display the number of regenerations that
have occurred in the last 14 days.
5. Press the “-” key. The display will blink “totL” for 3
seconds and then display the total number of
regenerations this control has cycled through.
6. Press the “-” key. The display will blink “daYS” for 3
seconds and then display the number of days since last
regeneration.
Note: Pressing the “+” key at any time brings back to manual
cycling. Pressing “Status” will Exit the programming menu.
