Culligan MEDALLIST SERIES Service Manual

EDUCTOR ASSEMBLY
Refer to Figure 7 and the following instructions for replacement of the eductor.
1. Remove the three screws and the eductor plate.
2. Remove the eductor screen by lifting it from the eductor body.
3. Remove the eductor body by grasping one of the projections with the pliers and gently pulling upward.
4. Reverse the procedure to reassemble. Be certain that the replacement eductor body contains the correct
eductor nozzle.
TABLE 7 - Eductor Selection
Model Nozzle Color Nozzle P/N
8" Medallist Blue 00446038
30 & 45 Medallist Beige 00446039
BACKWASH FLOW CONTROL
Refer to Figure 7 and the following instructions for replacement of the backwash ow control:
1. Remove the drain elbow retaining clip from the valve body.
2. Pull the drain elbow from the valve body.
3. Remove the ow control from the valve body control and replace with a new ow restrictor.
NOTICE: The number on the backwash ow control should face into the valve body.
4. Reverse the procedure to reassemble. Be certain that the replacement is the correctly sized ow restrictor.
TABLE 8 - Backwash Flow Restrictor Selection
Model Color & Number P/N
8" Medallist Black, #1 00331634
30 & 45 Medallist Brown, #2 00331635
22 CULLIGAN MEDALLIST SERIES
™

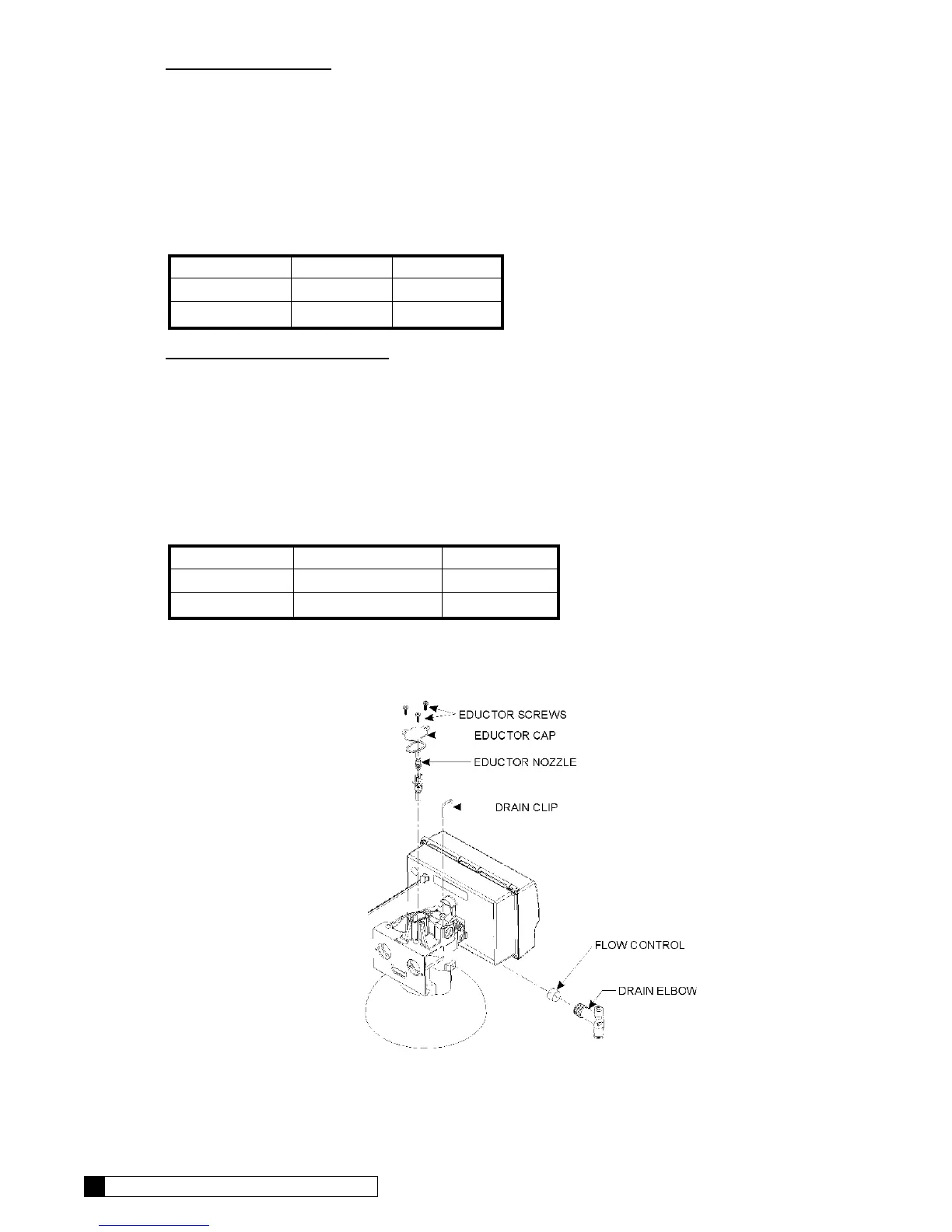

FIG. 7
