Thicknessadjustmentdial
The dial located on top of the machine adjusts the tightness of the feeder through
which documents pass during operation. The dial has positive and negative
adjustment numbers, with 0 at the center of the adjustment range.
The interior upper-transport plate must be raised for jam recovery and daily cleaning.
The upper-transport plate is accessed by lifting the display panel, and it is disengaged
by pressing down on the release levers. After disengaging, lift the upper-transport
plate to the open, locked position, as shown above. To close the upper-transport plate,
press down on the release levers to unlock it from the open position. Next, push down
on the upper-transport plate until it locks in the closed position.
For normal feeding, start with 0 at the top of the dial.
To help reduce the occurrence of doubles or chains, turn the dial to the right,
so a negative number is at the top, decreasing the distance between the
rollers.
Turning the dial to the left, so a positive number is at the top, increases the
spacing between the rollers, allowing documents to pass through more easily.

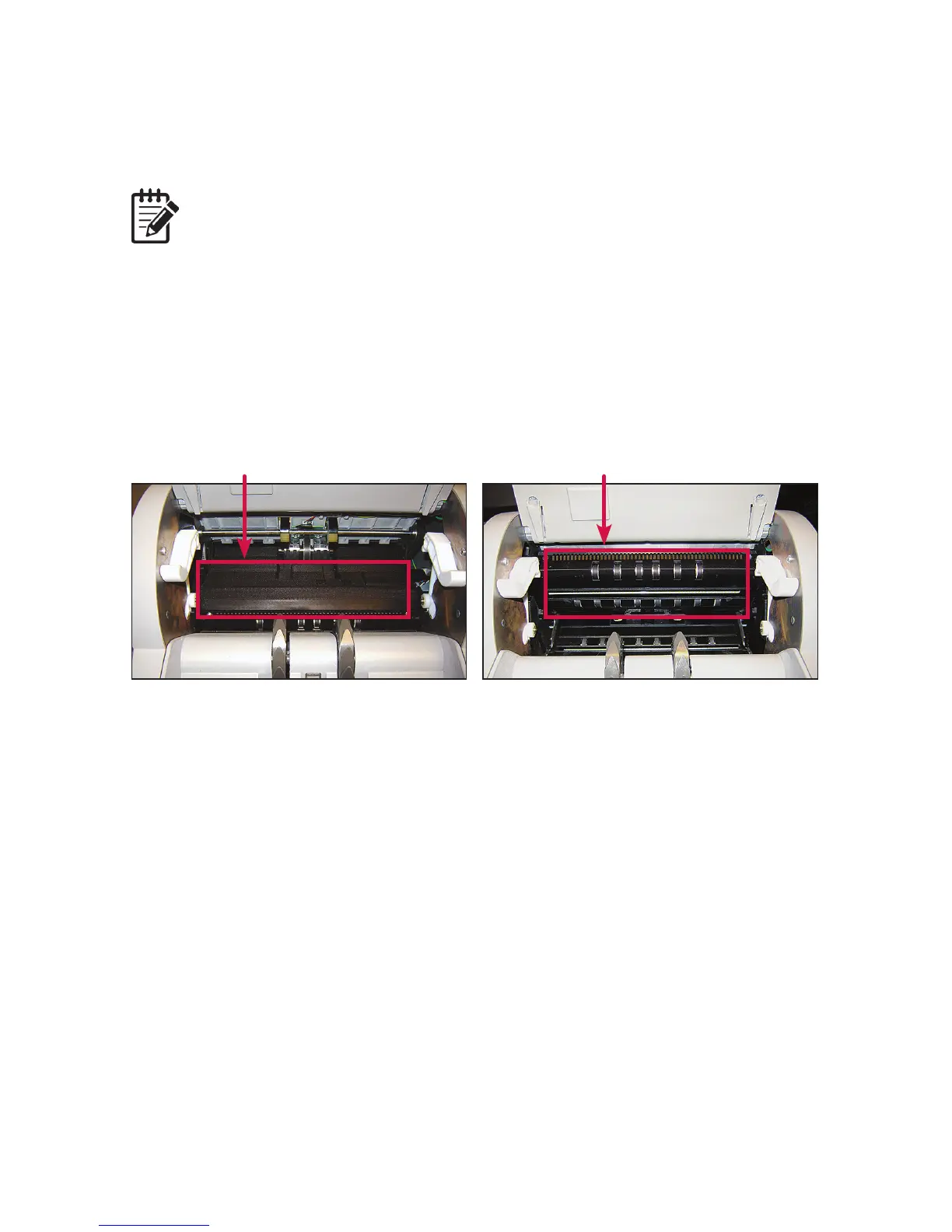

Interiorupper-transportplatediagrams
Upper-transportplateclosed
(operating position)
Upper-transportplateopen
(locked position)
*
Release levers
