ASSEMBLY & OPERATING INSTRUCTIONS – 254 CONDUIT BENDER
(CONTINUED)
SPRING CLIP

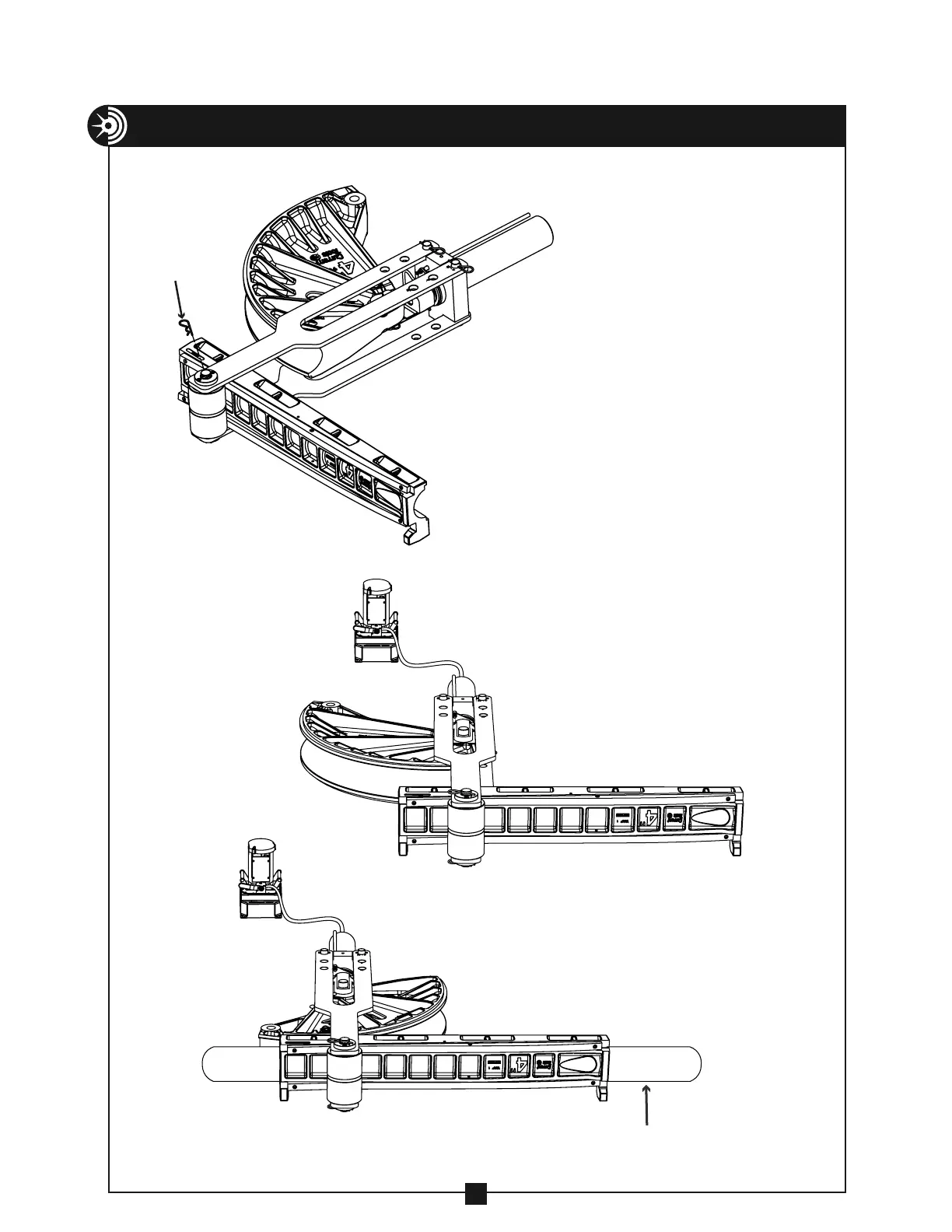

10. Lower the frame side and secure with the
spring clip.
NOTE: Wipe the groove of both the shoe
and follow bar and ensure they are clean
and free of any debris.
12. Place the conduit into
the bender as shown.
CONDUIT
11. Connect the hose to the
pump and hydraulic cylinder.
