TRANSPORT INFORMATION
17
The Mobile Carriage is designed to
easily move the Pulling Assembly from
location to location.
To Prepare for Transport
Before moving, use the boom height
adjustment handle and raise the boom
tube as shown in Figure 17. If both
sections of the standard boom tubes are
installed, remove the elbow unit angle
adjustment pin and rotate the forward
section down as far as possible (See
Figure 17). Reinstall the elbow unit angle
adjustment pin. DO NOT transport with
boom tubes longer than the factory
supplied 3' and 4' sections.
NOTE: ALWAYS return the puller mount
to the center position and ensure the
spring loaded retainer pin snaps
into place prior to transport.
WARNING
• Tip Hazard — DO NOT lean unit more than 10°.
• DO NOT transport with boom tubes longer than
the factory supplied 3' and 4' sections.
• Only transport on firm, smooth surfaces.
• Keep unit under control when transporting.

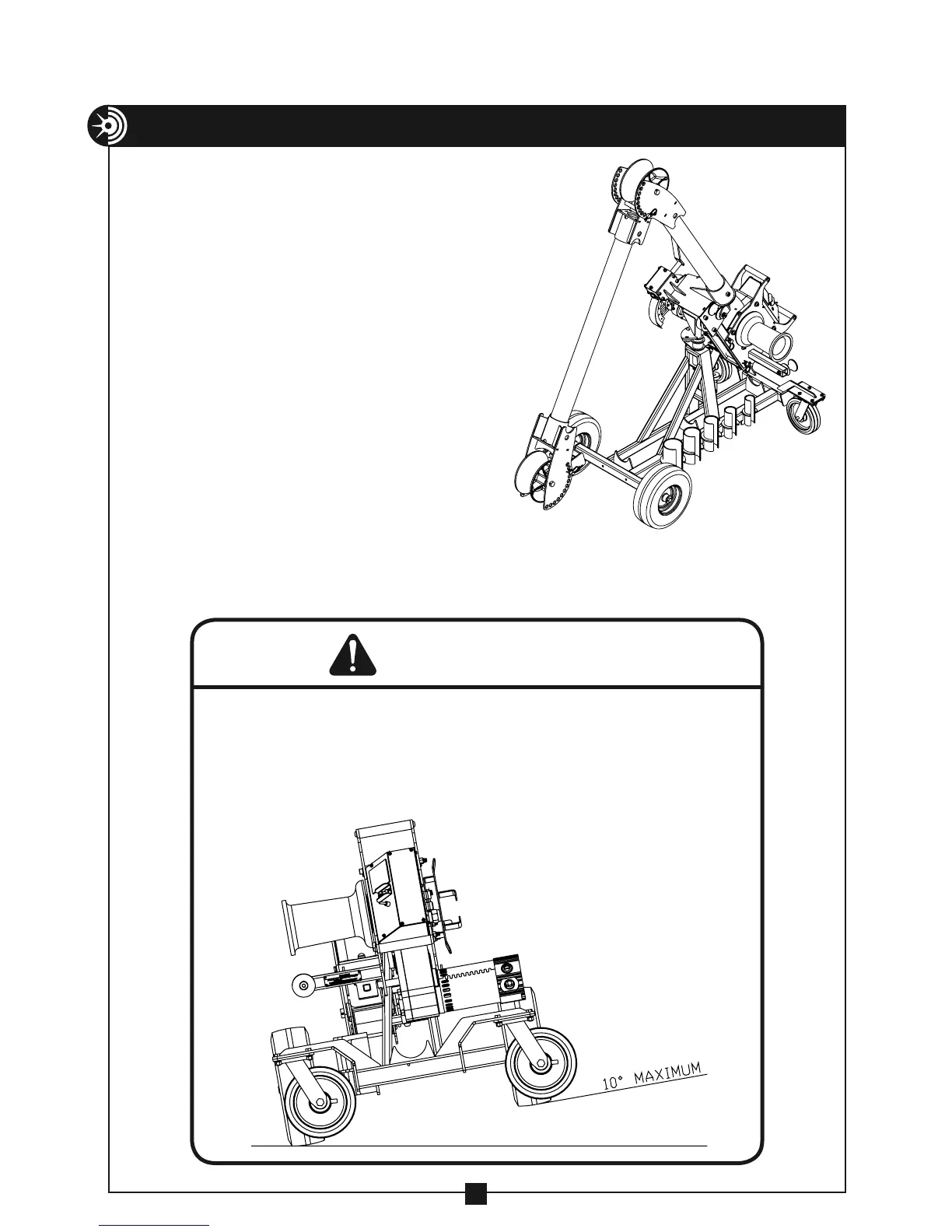

Figure 17
