Current Tools RotaBoom 100 - Common Set-Ups

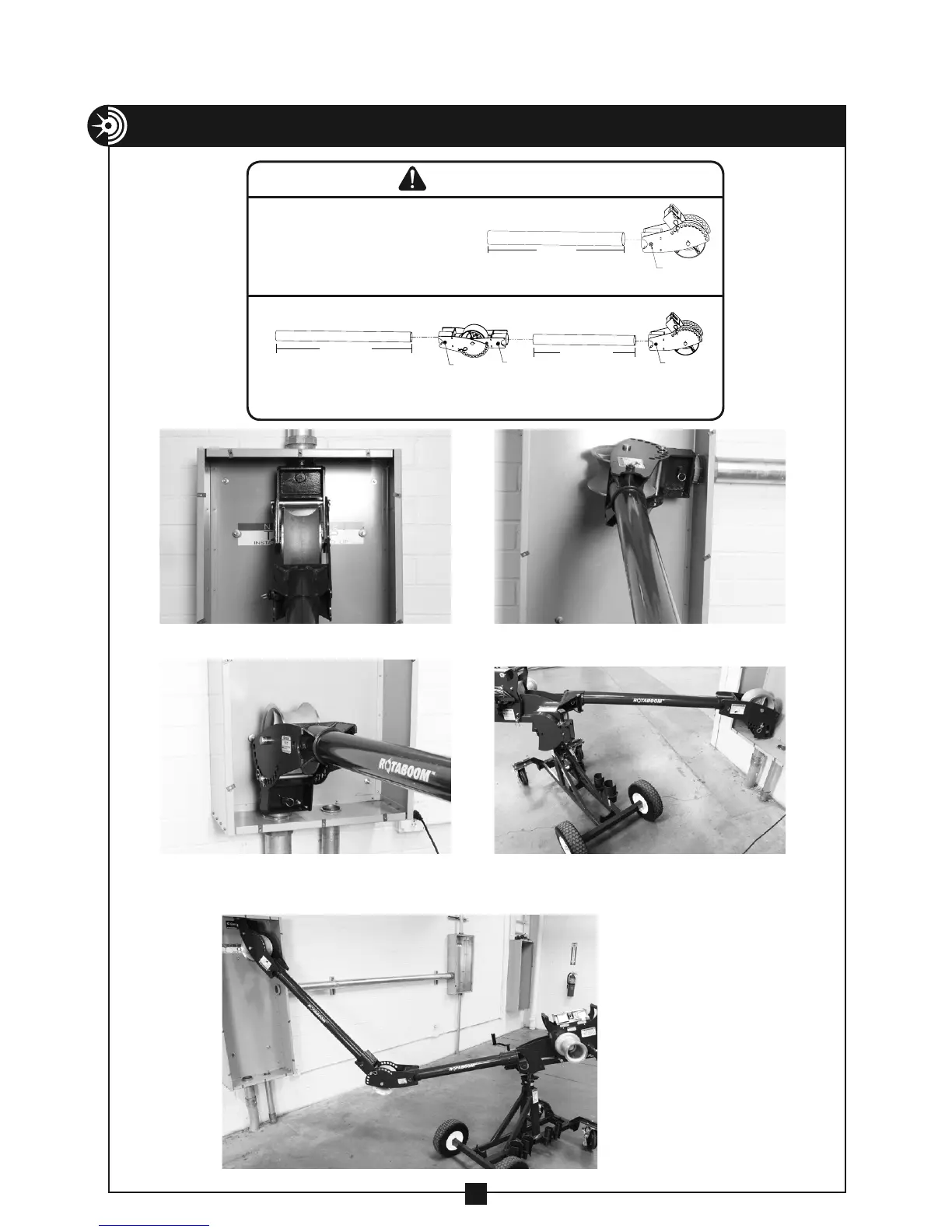

COMMON SET UPS
16
Down Pull Side Pull
Up Pull Up Pull using RotaBoom
™
feature and one boom tube
Down Pull using elbow
unit and nose unit with
RotaBoom
™
feature
WARNING
When using one boom tube and nose unit, factory supplied boom tube may be replaced but must meet
the following specifications:
When using elbow unit, nose unit and both boom tubes, factory supplied boom tubes may be replaced
but must meet the following specifications:
1/2-13 × 2"
Hex Head Bolt
3' min. to 10' max.
3' min. to 10' max.
3' min. to 10' max.
1/2-13 × 2"
Hex Head Bolt
1/2-13 × 2"
Hex Head Bolt
1/2-13 × 2"
Hex Head Bolt
• Only use 3" schedule 40 pipe or 3"
rigid conduit
• Check sight holes to be sure boom tubes are fully
inserted. Then tighten 1/2-13 × 2" hex bolt (user
provided).
• DO NOT transport the puller on the
carriage with boom tubes other than the factory
supplied 3' and 4' tubes.
• Only use 3" schedule 40 pipe or 3"
rigid conduit
• Check sight holes to be sure boom
tubes are fully inserted. Then tighten
1/2-13 × 2" hex bolt (user provided).
• DO NOT transport the puller on the carriage with boom tubes
other than the factory supplied 3' and 4' tubes.
