Current Tools RotaBoom 100 - Exploded Views and Parts Lists - Model 1450

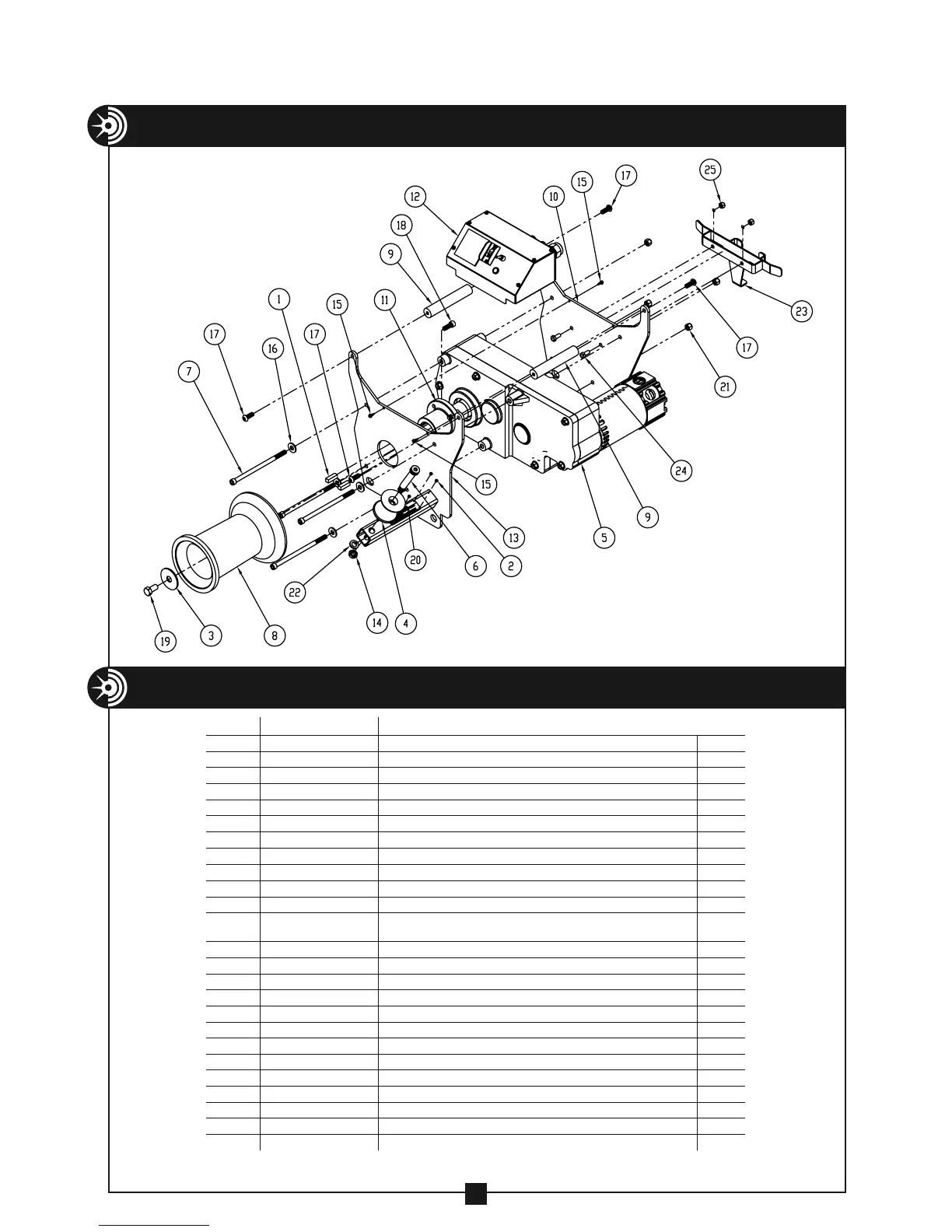

EXPLODED VIEW – MODEL 1450 CABLE PULLER
32
ITEM # PART # DESCRIPTION QTY.
1 66-38 KEY-SQUARE (3/8" × 1.25" LG) 2
2 77-044 RIVET, ALUM, BUTTONHEAD (1/8" .08-.120 GRIP) 4
3 88-59 WASHER - 11 GA HRPO ZINC (.630ID × 2.25OD) 1
4 88-18 ROLLER – GUIDE, PULLER 1
5 100-001 MOTOR 1
6 100-022 SCREW – SHOULDER SOCKET (5/8-11 3) 1
7 100-023 SCREW - SOCKET HEAD CAP (3/8-16 × 7") 4
8 100-142 CAPSTAN 1
9 100-146 PULLER HANDLE 2
10 100-148 PULLER PLATE 2 1
11 100-149 CAPSTAN HUB 1
12 100-191
ELECTRONICS BOX ASSEMBLY
(See exploded view on pg. 33)
1
13
100-216 PULLER PLATE 1
14
281-1J NUT – HEX NYLON INSERT (1/2-13) – THIN 1
15
452-6A SCREW-SELF DRILL (#8 1/2) 4
16
506-3 WASHER – FLAT 3/8 (USS) ZINC
4
17
610-21 SCREW – BUTTON HEAD CAP (3/8-16 × 1)
4
18
750-25 SCREW – SOCKET HEAD CAP (3/8-16 × 1)
4
19
8092-2 SCREW – HEX HEAD CAP GR5 ZINC (1/2-13 × 1)
1
20
1450-S/N PLATE SERIAL NUMBER PLATE
1
21
2-1501-4 NUT-HEX, NYLON INSERT 3/8-16
4
22
281-2C WASHER – LOCK, 1/2"
1
23
33-706 WELDMENT – WIRE/FOOT SWITCH HOLDER
1
24
77-00D1 SCREW – HEX HEAD CAP GR5 ZINC (5/16-18 × 3/4)
2
25
2-1301-4 NUT – HEX NYLON INSERT (5/16-18)
2
PARTS LIST – MODEL 1450 CABLE PULLER
