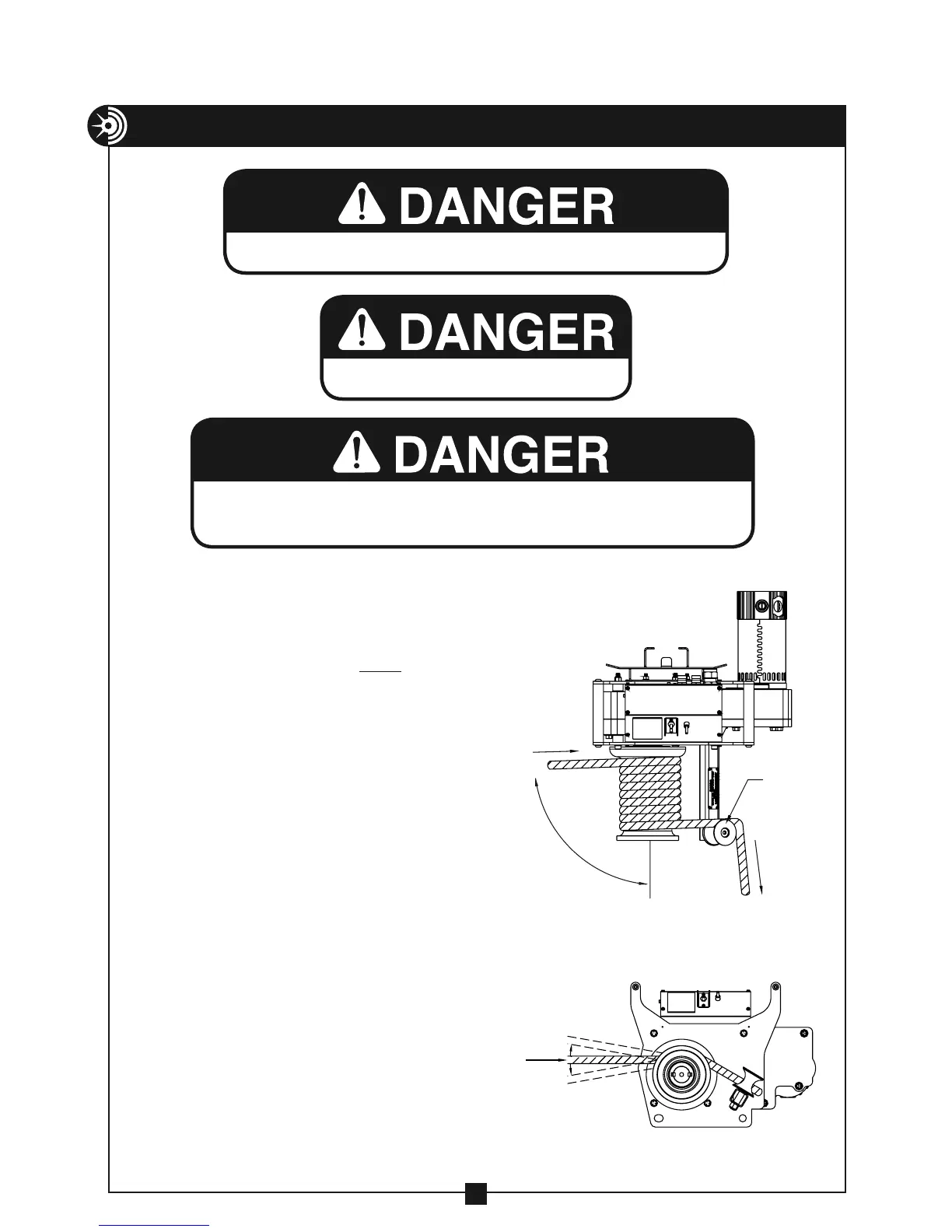

OPERATING INSTRUCTIONS — MODEL 1450 CABLE PULLER
27
DO NOT operate cable puller in wet or damp locations. Do NOT expose to rain.
DO NOT operate in an explosive atmosphere.
DO NOT use cable puller as a hoist or for lifting, supporting or transporting
people or loads. Use only for its intended purpose as a cable puller.
Rope Set-Up
As shown in the overhead view,
Figure 27a, the pulling rope must
approach the capstan at a 90º
angle. This will help avoid rope
overlap.
Make several wraps of the
pulling rope around the capstan,
beginning at the housing end of
the capstan. See Figure 27a.
Next, guide the pulling rope
around the black safety roller as
shown in Figure 27a. This will
enable the operator to stand at
a 90º angle to the cable puller
and out of the direct line of tight
pulling rope.
Also note the pulling rope
should approach the capstan as
indicated in Figure 27b.
Figure 27a
SIDE
VIEW
PULL
DIRECTION
MAXIMUM
10˚
MAXIMUM
10˚
Figure 27b
OVERHEAD
VIEW
TO
OPERATOR
BLACK
ROLLER
PULL
DIRECTION
90˚
