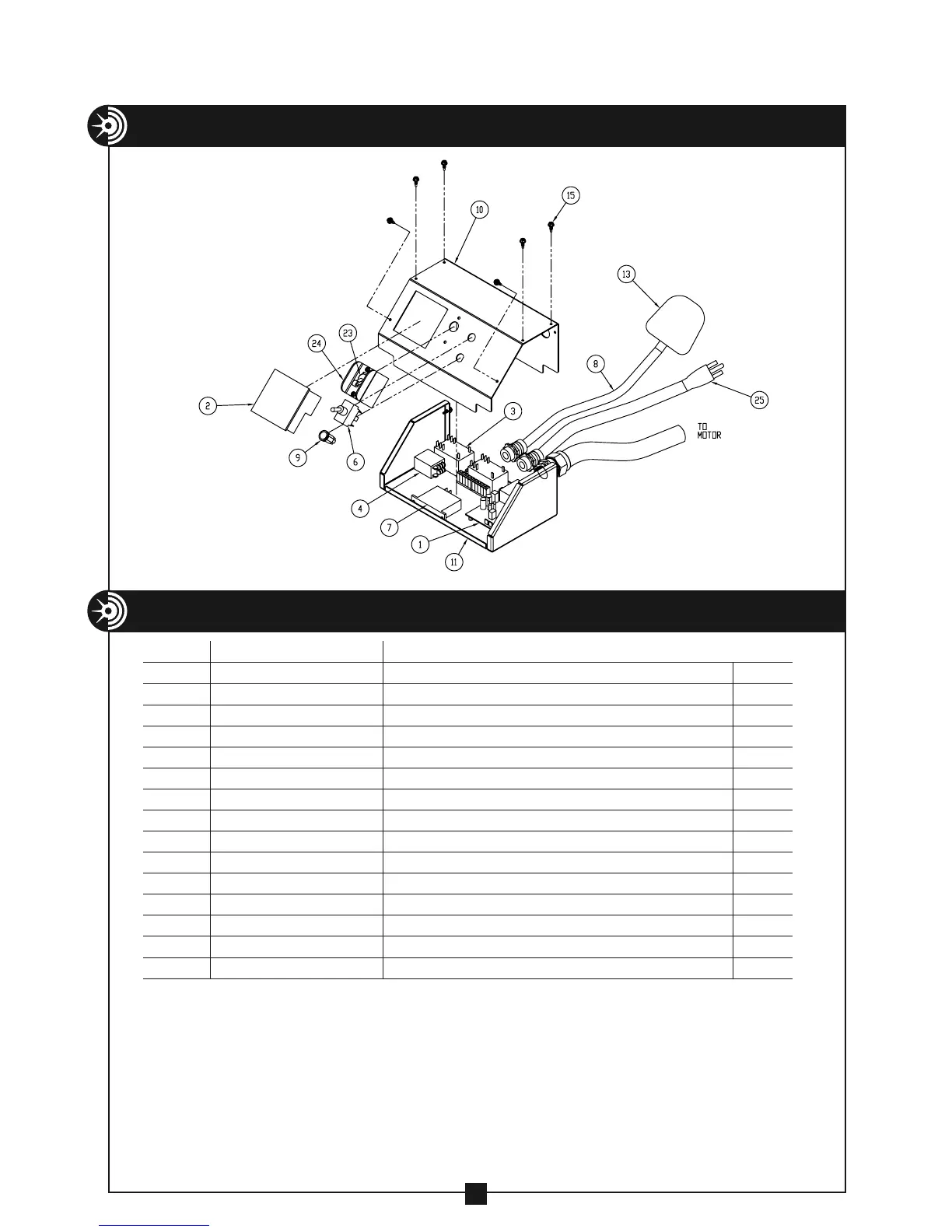

EXPLODED VIEW – MODEL 1450 ELECTRONICS BOX ASSEMBLY
33
PARTS LIST – MODEL 1450 ELECTRONICS BOX ASSEMBLY
ITEM # PART # DESCRIPTION QTY.
1 100-002 CIRCUIT BOARD 1
2 100-003 METER 1
3 100-004 RELAY 2
4 100-008 RELAY 1
6 100-030 TOGGLE SWITCH 1
7 100-031 TIMER 1
8 100-280 CORD – FOOT SWITCH, 8' 1
9 100-033 LIGHT – READY 1
10 100-189 ELECTRONICS BOX TOP 1
11 100-190 ELECTRONICS BOX BOTTOM 1
13
33-45 FOOT SWITCH 1
15 452-6A SCREW – SELF DRILL (#8 X 1/2") 6
23 77-062 ON/OFF SWITCH 1
24 77-063 SWITCH GUARD 1
25 77-068 CORD – POWER 1
