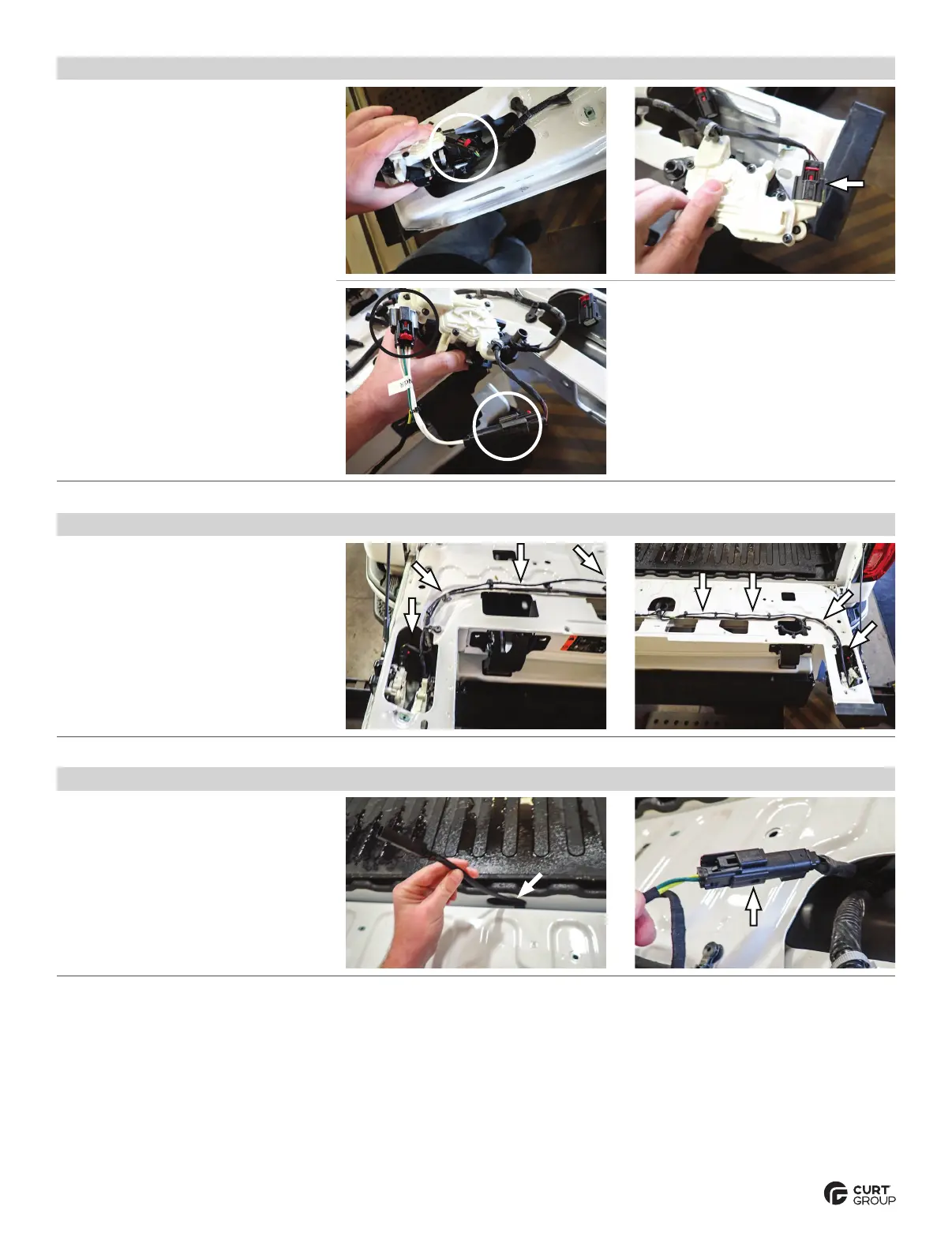

Step 7
Route the wiring harness (#3) along the existing
factory harnesses and zip tie in place. Route
the wiring harness to the center of the tailgate.
Step 6
Starting on the passenger side, remove the outer
(main) tailgate locking mechanism. Separate the
connectors by pushing the red tab towards the
wires and pressing the locking tab to remove
the connector from the locking mechanism.
Take care not to damage locking tabs.
Remove the inner tailgate panel locking
mechanism. Separate the connectors by
pushing the red tab towards the wires and
pressing the locking tab to remove the
connector from the locking mechanism.
Take care not to damage locking tabs.
Locate the label on the taillight wiring
harness that states passenger side.
Insert the wiring harness (#3) between
the inner locking mechanism and
the factory wiring and reassemble.
Repeat steps 5 and 6 on
the driver side of the tailgate.
Step 8
Locate the sensor wiring harness (#1) routed in
Step 2. It will be between the bed of the truck
and the tailgate. Connect the sensor harness
into the wiring harness (#3).
Close the main tailgate and loosely zip tie any
loose wires to the factory harness. Open the
main tailgate and reinstall the tailgate cover.
