Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
**REMOVAL OF REAR WINDOW ACCESSORIES MAY BE REQUIRED.**

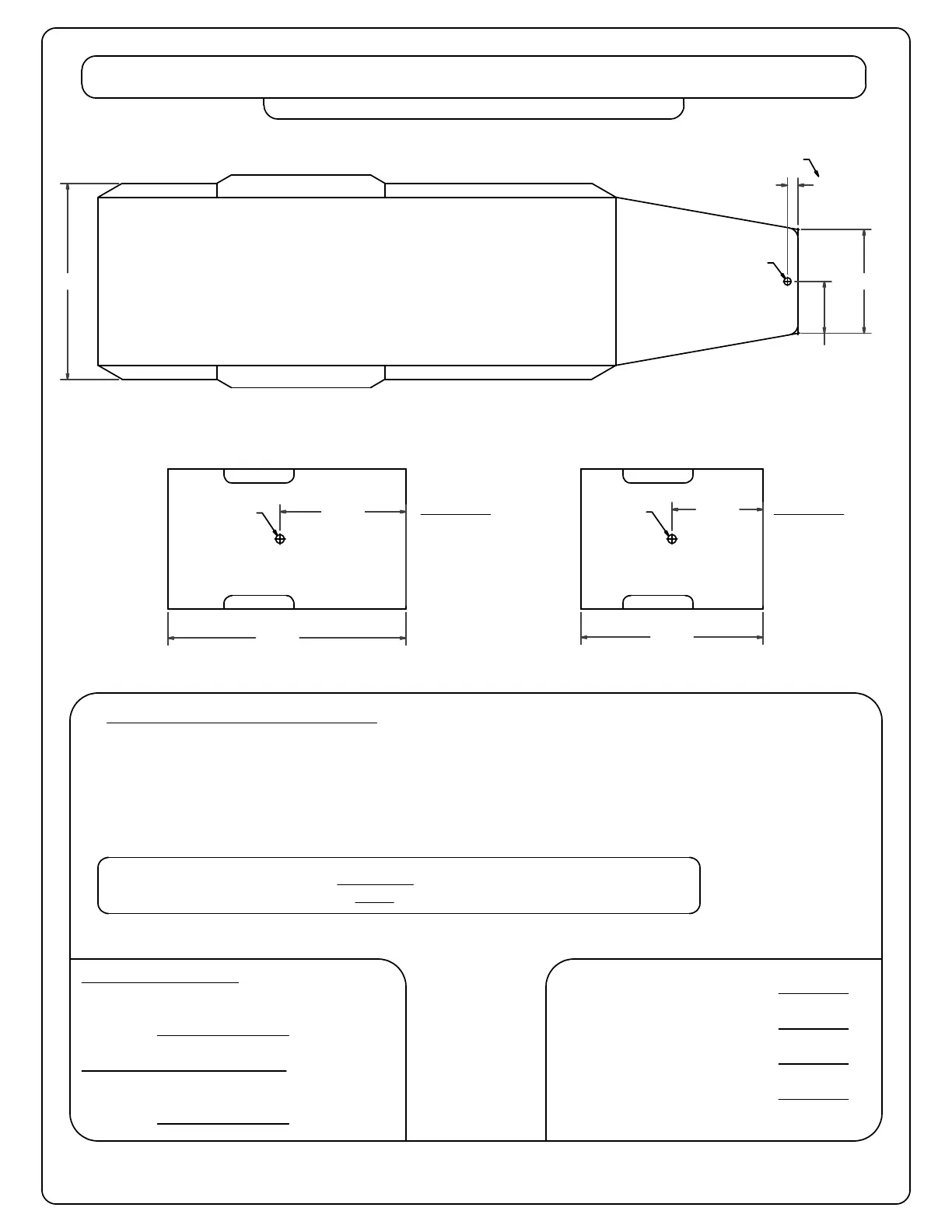

CAB TO TRAILER CLEARANCE
TRAILER
LONG & SHORT TRUCK BEDS
***GENERALLY, TAPERED NOSE TRAILERS ADHERE TO THE FOLLOWING DESIGNS:***
8 FT. WIDE TRAILERS TAPER TO 6 FT. AT THE COUPLER.
7 FT. WIDE TRAILERS TAPER TO 5 FT. AT THE COUPLER.
96 in
96 in
72 in
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
CAB OF TRUCK
CAB OF TRUCK
47 in
(X)
35 in
(X)
**WARNING REFERENCE CLEARANCE CALCULATOR BEFORE TOWING**
***IF (Z) IS POSITIVE, TRAILER WILL NOT INTERFERE WITH CAB OF TRUCK.***
IF (Z) IS NEGATIVE, TRAILER WILL
INTERFERE WITH CAB OF TRUCK!!!
EXAMPLE:
YOUR CALCULATION:
STANDARD TRAILER
X - Y = Z
35 - 36 = -1
(TRAILER WILL INTERFERE
WITH CAB)
TRAILER WITH OVERHANG
[(X) - (W)] - Y = Z
[35 - 4] - 36 = -5
(TRAILER WILL INTERFERE
WITH CAB)
(CAB TO BALL CENTER)
-
(COUPLER OVERHANG)
-
1/2 (TRAILER WIDTH)
=
(MINIMUM CLEARANCE
CLEARANCE CALCULATION
(CAB TO BALL CENTER) - 1/2 (TRAILER WIDTH) = (MINIMUM CLEARANCE)
(X) - (Y) = (Z)
IF THERE IS AN OVERHANG FROM THE COUPLER THEN THE EQUATION IS:
[(X) - (W)] - (Y) = (Z)
72 in
36 in
(Y)
4 in
(W)
HITCH BALL
HITCH BALL
COUPLER
COUPLER OVERHANG
PAGE 4
