Cushcraft HV4E Vertical Antenna
Version 0 10 2024 Cushcraft

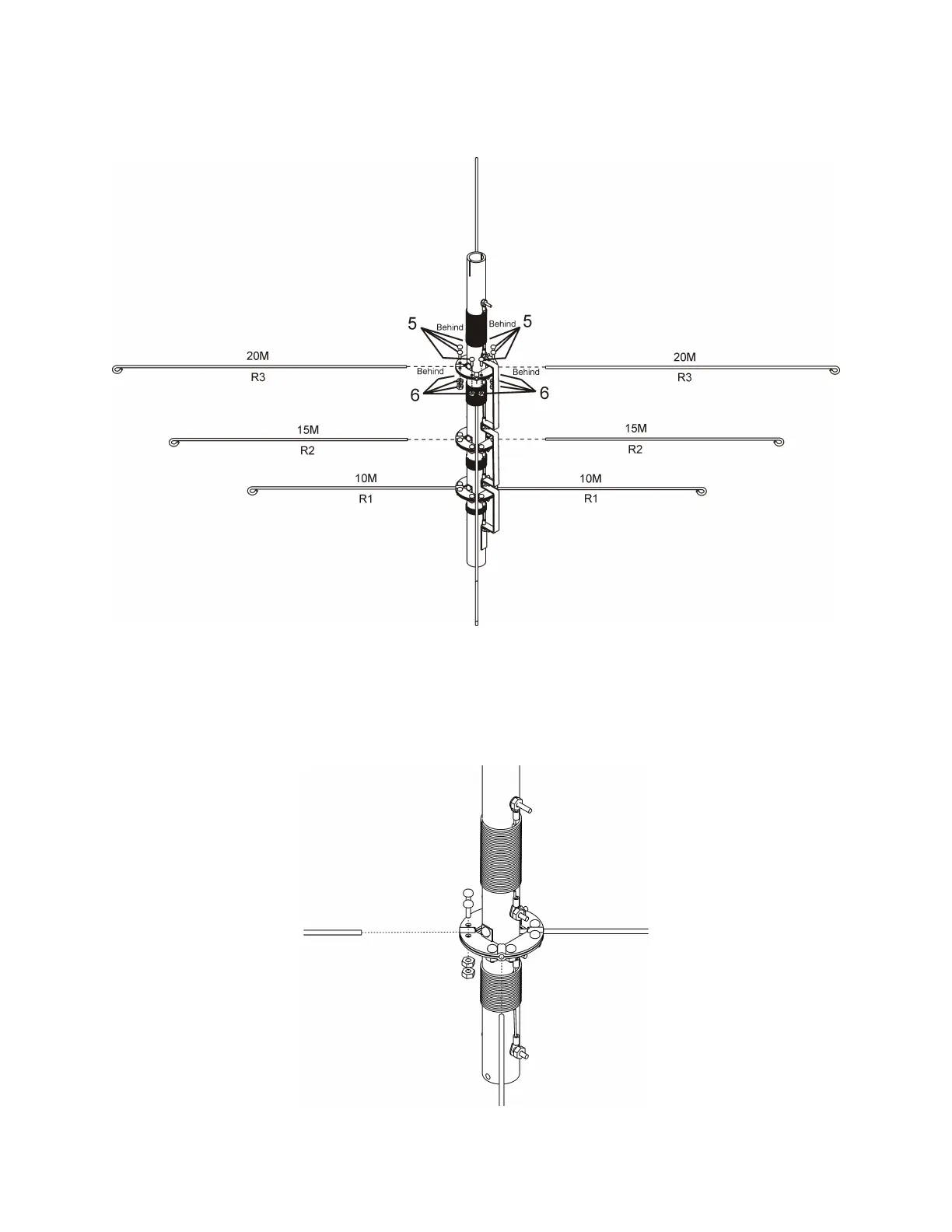

Radial Spoke Assembly
Each radial spoke level requires eight 6-32x.375 SS screws (5) and eight 6-32 KEP nuts (6) for a total of
24 of each. For initial assembly the R1 and R2 radial spokes are 14 inches long and the R3 radial spokes
are 18 inches long. They will be trimmed to the correct length in the tuning phase of the assembly.
For each level attach the eight screws and nuts loosely. Push the correct radial spokes for each level into
the radial spoke clamps. Tighten the screws and nuts some so they do not fall off while tuning.
